GEPRC Mark5 DC O3 Mount

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STEPSTL
  • 5 Likes
  • 130 Downloads
  • 0 Makes
  • 4 Comments
  • 511 Views

Author:Trev.erse

Published

Description

This O3 Transmission Module Mount keeps all the great design features of the original mount that comes with the GEPRC Mark5 DC. I did fully build this model from the ground up, but largely reflected the general structure of the first design . In addition I added fins for cooling - inspired by the original design.

However, I wouldn't have designed a new mount if there wasn't things I wanted to change. These improvements are the following:

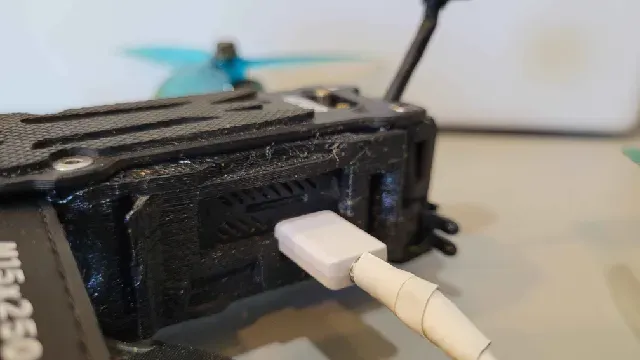

- Easy USB-C port plug in. (A frustrating part of the original design, was never being able to plug my USB-C cable into it). - Increased O3 Protection. Using the first design for over a year, I discovered after crashing (many times) that the Air Unit would often twist out of place. In my design I've added more support around the unit. I have had success so far with no twisting. THIS IS A TPU DESIGN
