Gridfinity Bosch GSR 12V-15 FC and GSR 12V-35 FC

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
3MFSTL
  • 37 Likes
  • 181 Downloads
  • 3 Makes
  • 5 Comments
  • 1 995 Views

This model on other platforms

Author:freakadings

Published

Download on Printables

Description

(english below)

de:

Ein Gridfinity-Einsatz für die Bosch GSR 12V-15 FC und GSR 12V-35 FC Akkuschrauber. Die Größe ist auf das Minimum reduziert die T-Form hat 4x5 Einheiten und eine Höhe von "8u". Theoretisch kann man weitere Gridfinity-Elemente darauf stapeln. Es klappt nicht 100%ig (siehe Fotos), funktioniert aber zur Not.

Im Koffer (nicht L-Boxx), in dem der Akkuschrauber normalerweise ausgeliefert wird, wären dann noch 3u in der Höhe Platz für zB. Schrauben, Bits oder anderes Zubehör.

========

en:

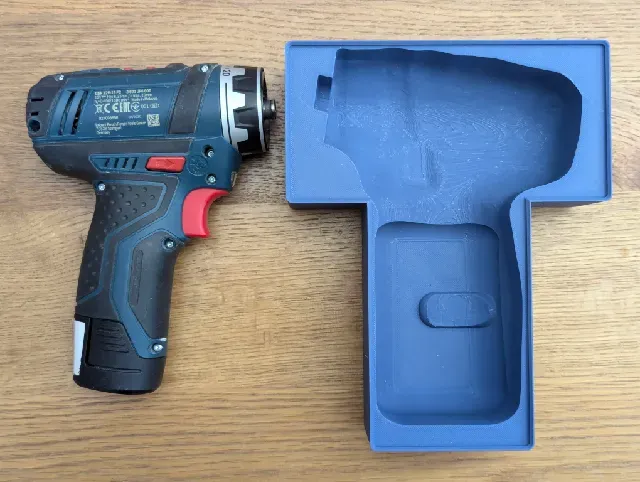

A Gridfinity Inset for the Bosch GSR 12V-15 FC and GSR 12V-35 FC cordless drills. The size is optimized for minimal space usage the T-shape is 4x5 and it has a height of '8u'.

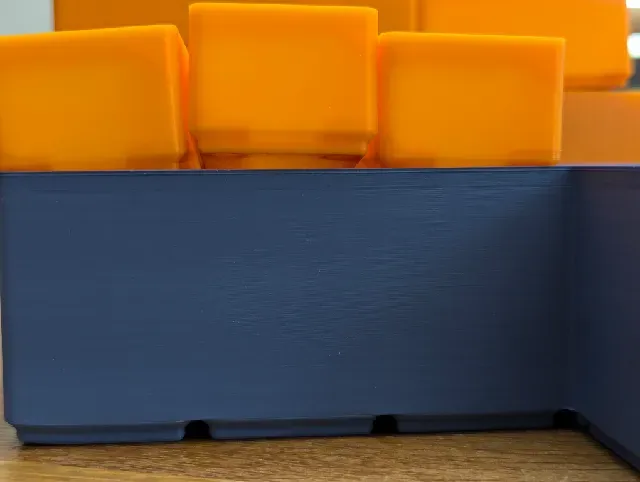

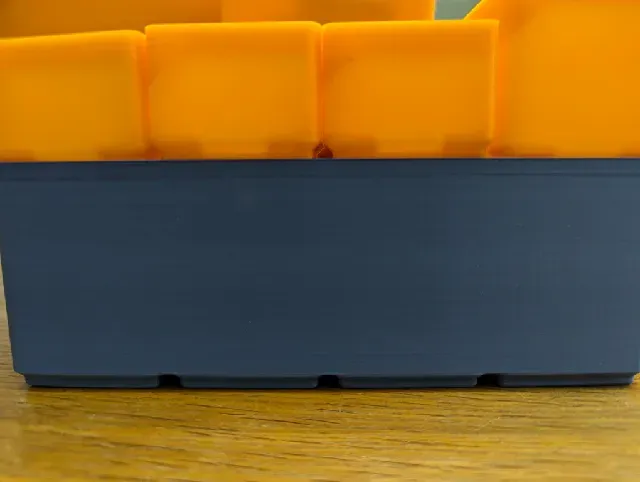

In theory you could put further Gridfinity objects on top. It doesn't work a 100% (see pictures).

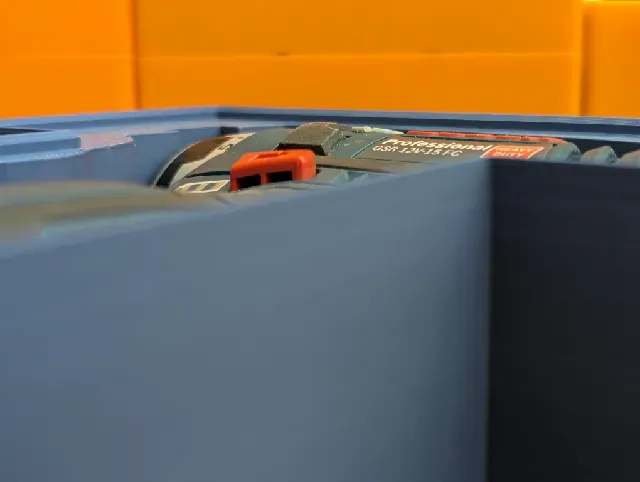

When used in the case (not L-Boxx) the drill is delivered in, there are still 3u space left in height for bits or screws or other accesories.

Tags

organizerboschgsrbosch12vgridfinitygsr12vgsr12v15fcgsr12v35fc
