CYD Klipper Screen for Sovol SV08

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLSTEP
  • 7 Likes
  • 39 Downloads
  • 0 Makes
  • 0 Comments
  • 660 Views

This model on other platforms

Author:Caysbowr

Published

Download on Printables

Description

Hi there!

Since i wanted to have a low cost touchscreen replacing the stock rotary encoder powered 12864 one on the SV08 and could not find something similar - heres my take on a simple touchscreen for the SV08, using a cheap “yellow esp32 touch” from Aliexpress.

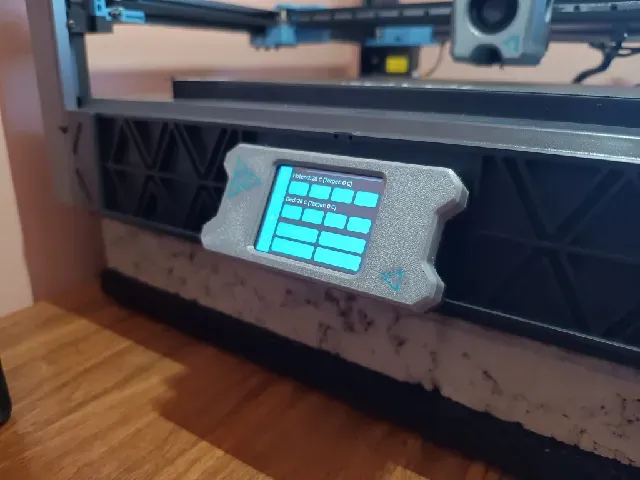

Its just a bezel replacement that fits a 2.8" ESP32 Touchscreen.

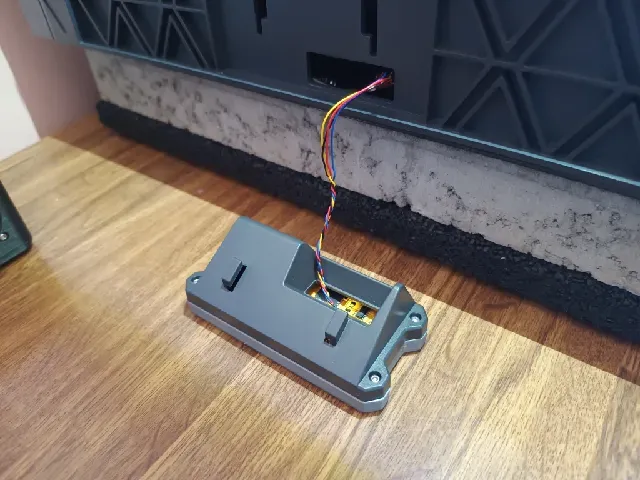

I connected the screen to the unused internal USB socket on the SV08 Mainboard, soldering a USB plug to the cable that comes with the screen, since the microUSB port cant be used due to the screen pcb being off-center for the screen to be centered on the bezel.

For the back housing the stock one is still used.

Massive shoutout to Nadir for his toolhead replacement for the SV08, from wich i borrowed the idea for the triangle accents.

ESP32Touchscreen: https://de.aliexpress.com/item/1005004502250619.html

CYD-Klipper: https://github.com/suchmememanyskill/CYD-Klipper

Toolhead Cover: https://www.printables.com/de/model/916158-sovol-sv08-cn3d-shroud
