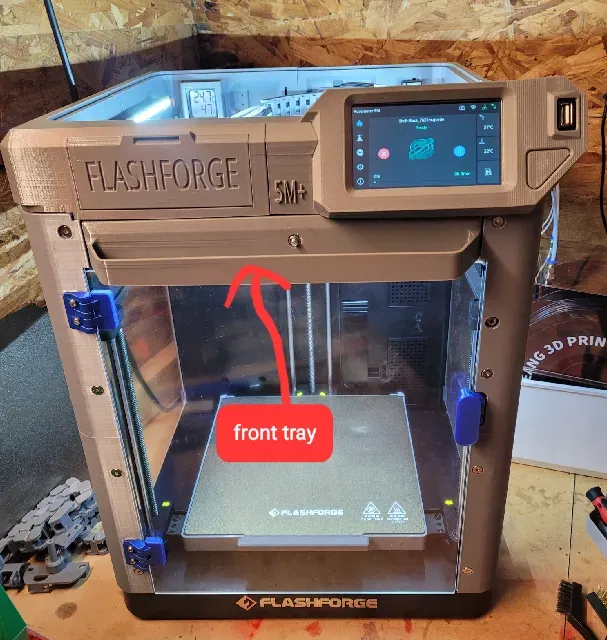

Flashforge 5M+ Ilyas Enclosure Mod V2

This is Version 2 of my Flashforge 5m+ Ilyas Enclosure Mod.

V1 can be found here: https://www.printables.com/model/954270-flashforge-5m-ilyas-enclosure-mod

This ONLY works with the FlashForge 5M DIY Enclosure mod.

All credit goes to Ilays for his superb creative & design work on his original enclosure mod.

I have remixed some files from the Ilyas Mod Enclosure files to work with the existing official FlashForge 5m enclosure mod which can be found here: https://wiki.flashforge.com/en/knowledge_corner/printer-mod-and-diy

I've also used/remixed various community members files....credit is in the readme files.

I have tweaked some files to suit my own needs...All is explained in the README files.

This mod uses the official FlashForge DIY enclosure files: guard plates, door hinges and handle, top cover handle & x6 magnet holders.

More information can be found on the Flashforge Official User Group on Facebook where i've been posting my WIP on this.

I've included a README folder in the zip file with a Readme PDF, Installation PDF and further images to help you understand the files and components involved in printing and installing this mod.

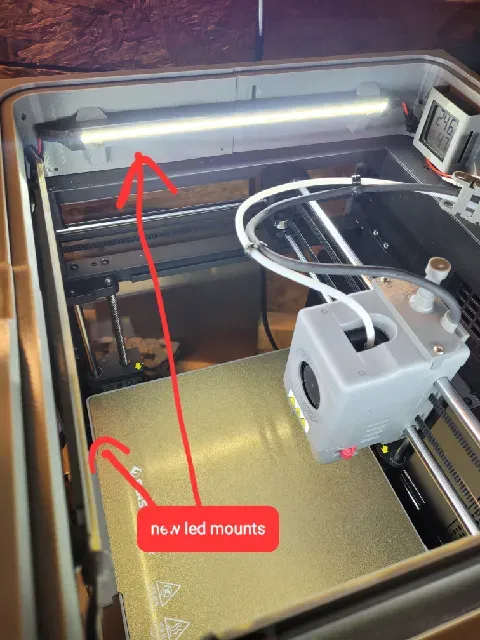

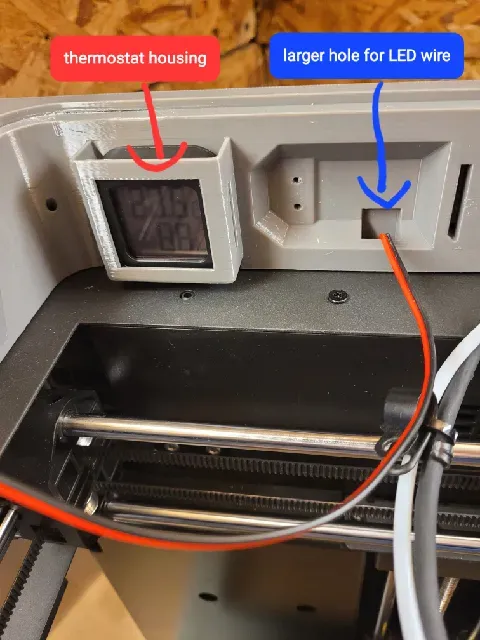

V2: Modified risers C & D, removed riser bottom fixing points, relocated filament sensor, new bowden entry holes, new thermostat housing, remixed x2 different dragchains to make 1 version that works for V2 only, included x2 swingarms for those that don't like dragchains, holes bigger for LED wires and filament sensor wire jst plugs to fit without removing them. Hollow/empty nozzle drawer for those that wanted it without nozzle space inside. Uses different led mounts which are slimmer, longer and without diffusers.

This is still a work in progress and may be updated in the near future.
