Old Style Harbor Freight/Central Machinery Drill Press Depth Set Collar

Model details

Platform
Thingiverse
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
  • 5 Likes
  • 140 Downloads
  • 0 Makes
  • 7 Collected
  • 0 Comments
  • 433 Views

Author:madmodder123

Published

Download on Thingiverse

Description

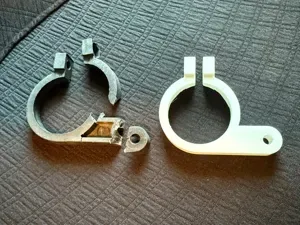

I have an old green cast iron Central Machinery drill press that had a broken depth stop collar, I wasn't sure if the other models posted here would work since theirs are probably for the newer drill press. I used a strong filament and it is holding up just fine, pretty sure I used an M3 screw/nut to tighten the collar.

I included just the basic geometry if anyone wants to beef this up.

Tags

cast ironcentral machinerycollardepthdepth stopdrilldrill pressgreenharbor freightold
