Various boxes cases for ESP32 LVGL 2432S028 (Cheap yellow display) 2.8 inch Touch Screen

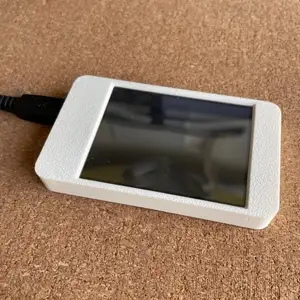

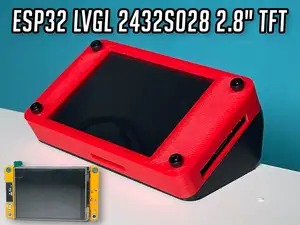

A range of different cases for the ESP32 LVGL 2432S028 (Cheap yellow display) 2.8 inch Touch Screen. There are two basic types a simple box to just house the board and a large box that has a separate compartment for speaker, sensor boards, etc. Various files are supplied with different cut outs for connectors. Which cut outs are present is indicated by letters at the end of the file names using the code shown below. A= Micro USB B= C type USB C= Tx/Rx D= P3 E= CN1 F= Micro SD reader G= Light Sensor H= Boot I= Reset J= Speaker/Sensor Mesh front K= Key Holes L= RGB LED M= Speaker Mesh rear

I'll add various versions as time goes on. Message me with any requests.

Type 3 and 4 boxes are basically the same as type 1 and 2 but with rear exit type C USB connectors you will need the correct convertor to fit see link below. The back plates are the same for all box type. Fit the sides with no cut out first the use a small screw driver in the cut outs to ease in the other sides.

The display can be screwed in but I usually just put a small piece of foam between the display board and the back plate to hold it in place.

The stand needs to be soaked in boiling water and bent to the required shape.

Useful links. https://www.aliexpress.com/item/1005006315444628.html Where I get my boards from. Search "2.8inch LCD LVGL" for best price

https://www.aliexpress.com/item/1005007802183944.html The right angle connector for type 3 and type 4 boards You need option CM-CG LT

https://www.aliexpress.com/item/1005001649158434.html Connector cables for IO. You need option JST 1.25MM, 4P, 10CM
