3D PRINTED RC CAR HMMWV (Humvee Hummer) BODY 2 in 1 set BY AN3DRC

I present to your attention the best 3D printed rc car HMMWV (Humvee Hummer) in the world !!!

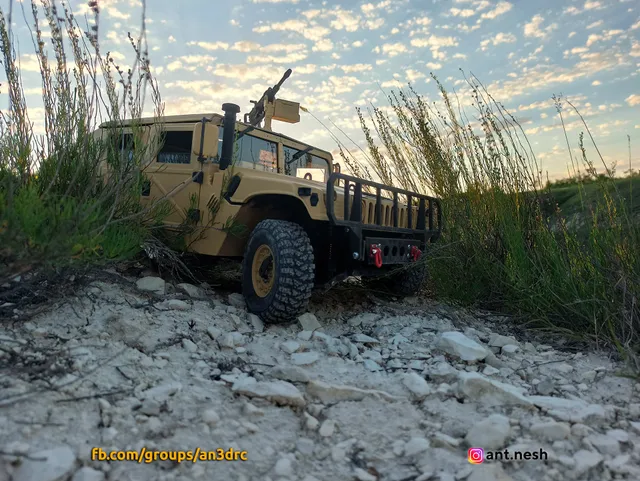

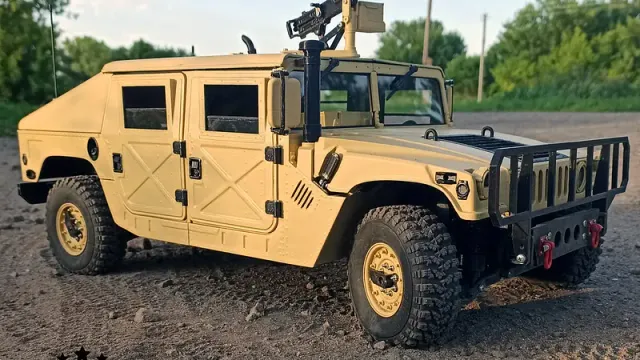

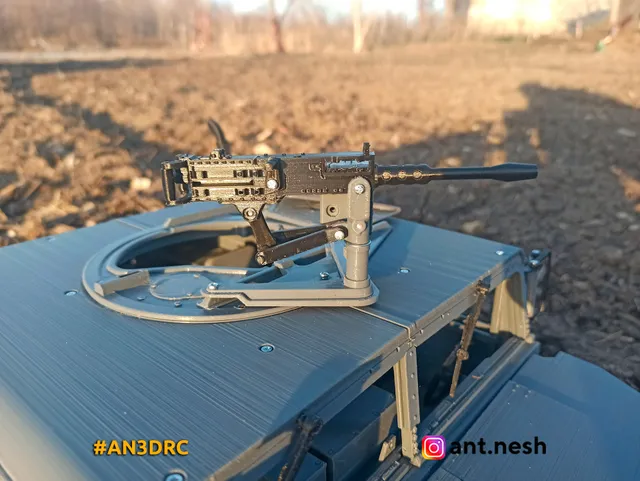

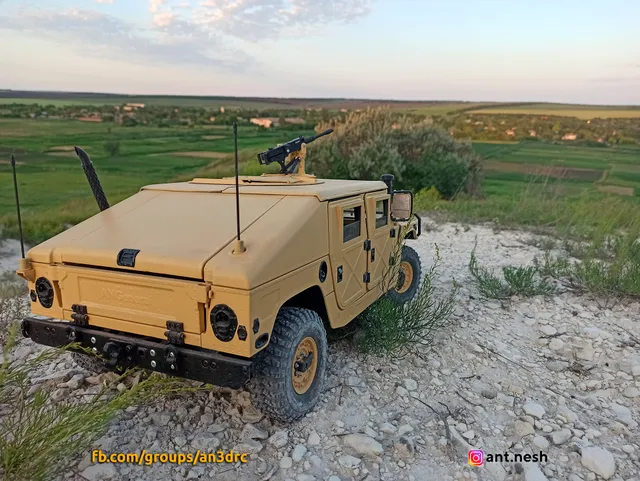

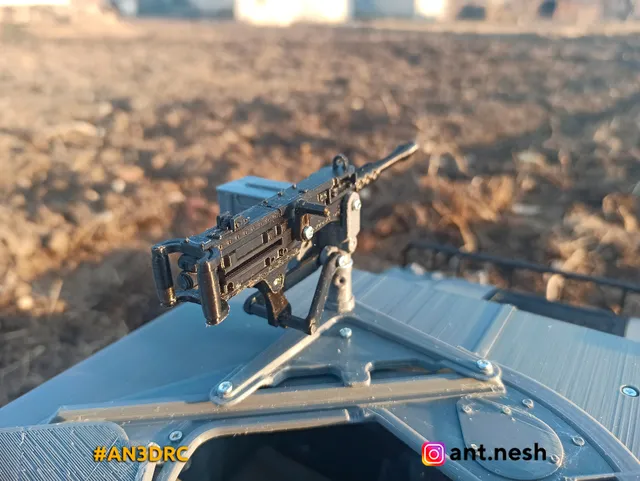

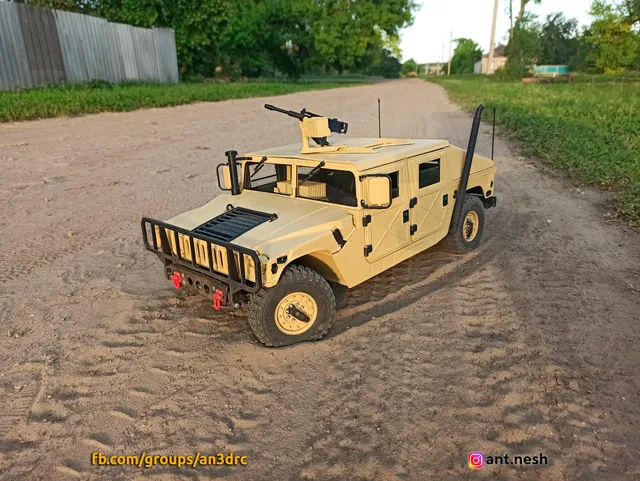

This is a 2 in 1 set. You can build a Pickup or Slantback body type. The archive also contains details for building a version without a turret. This means that with this set you can build 4 different types of Humvees: Pickup without turret, Pickup with turret, Slantback without turret and Slantback with turret.

Video overview and test run: https://www.youtube.com/watch?v=QPPUNQUqzXE

Attention only the body is published here! In order to assemble the complete model (as in the photo), you also need to download the Chassis and Gearbox

Instructions with all the necessary information, a list of parts to buy and a list of used screws and nuts are published at the link: link

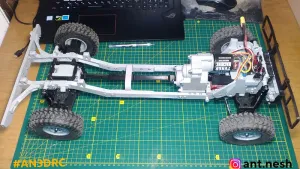

Chassis: link

Gearbox: link

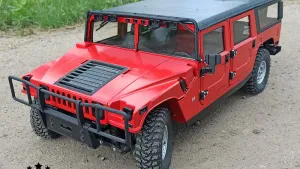

Wagon body: link

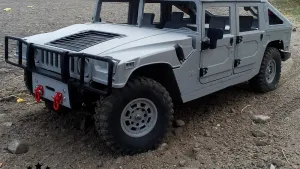

Slantback body: link

Pickup body: link

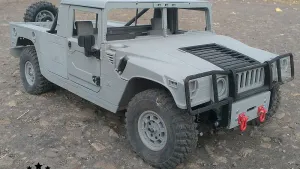

2 door Pickup body: link

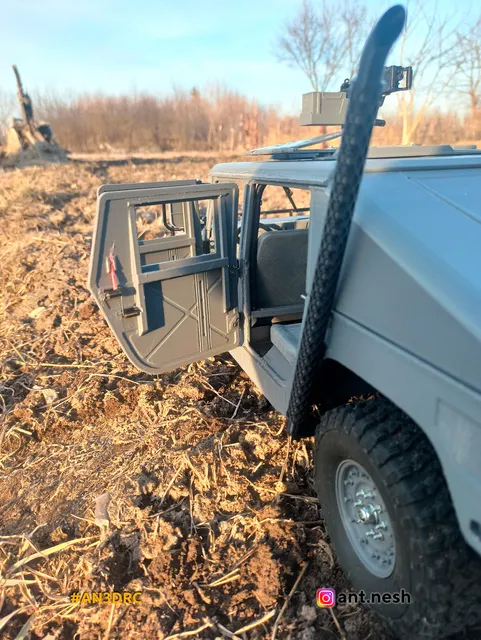

The assembled model has the following technical characteristics: - This model is designed on a scale of 1 / 8.5. - Length approximately 550mm. - Width approximately 260mm (without mirrors) - Wheelbase - 388mm. - Track - 220mm. - 4x4 - All mechanisms are working! Doors, hood, tailgate can all be opened and closed.

Initially, the Humvee body was created for printing on printers with a 200x200x200mm print area. I printed everything on my Ender 3 Pro. But many parts are smaller and can be printed on printers with a print area of 180x180x180mm. For those parts that initially did not fit on such small printers, alternative versions were created and now you can print this chassis on your printer with a print area of 180x180x180, for example, on the Prusa mini!

You can see more photos on my Instagram: link

I have a Facebook group, if you have any questions you can ask them there link

Attention! Many details on the right side are mirrors of the left side. So if you can't find a part for the right side in the archive, just make a mirror copy of the left part in your slicer!

UPD 8 Apr 2021------------------------------------------------------------- Added rear wall parts for building a Pickup body.

Upd 11 Apr 2021---------------------------------------------- Added alternative versions of some parts so that the Humvee body could be printed on a printer with a 180x180mm printing bed.
