JETLING - 1/6 Scale - Jet Fishing Boat - HAVE-IT-ALL incl. HPW40 Jet Pump

You love oldschool overpowered little fishing boats?

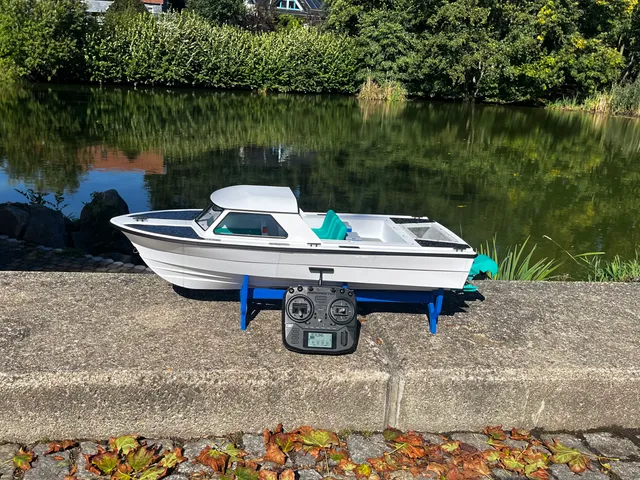

Here is our 1/6 Scale JETLING! The Jet pump powered sibling of our popular FJORDLING.

The model is powered by a 40 mm HPW40 jet drive with an attached 2.2 kW brushless motor on 3-6S LiPos. You can also install your M-Jet 30 or M-Jet 35 . There are separate hull print files for these pumps also as part of the files package.

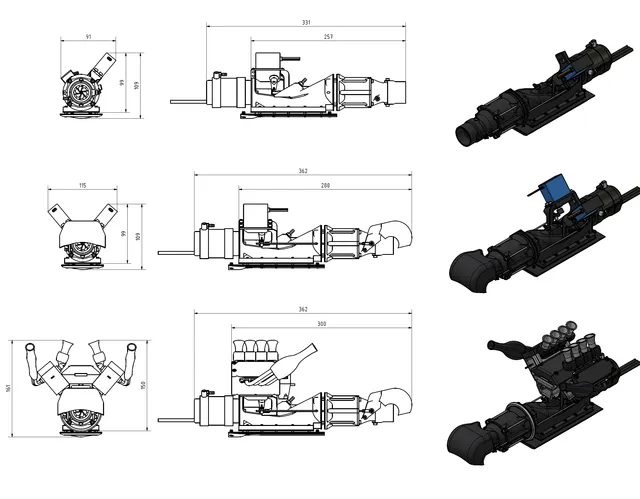

The print data includes all the necessary data for printing the hull, HPW40 jet drive, deck, roof and add-on parts. In this set the HPW40 Jet Pump is also included .

2 BOAT VERSION IN ONE - you have the choice!!!

RACE - deck version

ECO - deck version

The data package (STL, STEP, 3mf) consists of approx. 165 different print parts (plus the ones from the outboard), with a total of over 250 components to be printed. The resulting level of detail is outstanding.

It therefore places high demands on the builder both in terms of assembly and driving.

In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (67 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).

All documents are listed here: https://drive.google.com/drive/folders/1-FmGm8t_pCGvex5hoFO4MsukrnLANZmj?usp=drive_link

The model can be printed in PLA tough, PETG or ABS/ASA. The double-walled hull gives the boat great stability.

For demanding trips, we strongly recommend printing in ABS/ASA. We have had the best experiences with eSUN ASA+ and ABS+.

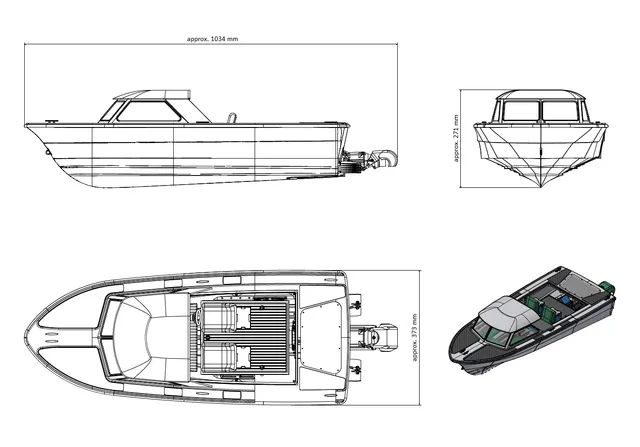

Technical data:

Length: 1034 mm

Width: 373 mm

Height: 271 mm

Weight (printed parts): approx. 3,400 g

Weight (complete): approx. 4.900 g

The model is aimed at experienced 3D printing users and model makers!!!

Here you can find more boats/products from us:

https://youmagine.com/hillprinties

You can find more information on our Instagram/Facebook/Tiktok profile:

https://www.instagram.com/hillprinties/ https://www.facebook.com/groups/hillprinties https://www.tiktok.com/@hillprinties

Or via the link in the bio.

The following components are additionally required and are not part of the offer:

1x 4074 1400kV brushless motor

1x ESC 160A+

2x 3-6s Lipo

2x 25kg waterproof standard servo

Remote control and receiver

various small parts

(all components listed in BoM)

NOTE!!!

The following components are additionally required and are not part of the offer:

1x M-Jet 30 jet drive, you can get here: https://www.cgtrader.com/3d-print-models/hobby-diy/hobby-accessories/m-jet-35-3d-printable-jet-pump-for-rc-boats

or

1x M-Jet 35 jet drive, you can get here: https://www.cgtrader.com/3d-print-models/hobby-diy/hobby-accessories/m-jet-3d-printable-jet-drive-for-rc-boats

UPDATE, 17.03.2026: HeavyDuty Housing with integrated Servoholder added, called "Jet_HPW40_Housing_3.0"

UPDATE, 24.03.2026: Updated Manual (M2x20 Screws for Impeller connection)
