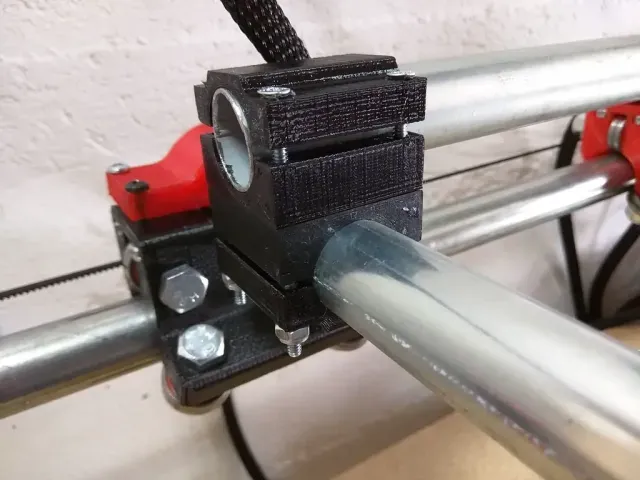

The models fall into a few groups. Corner clamps and angle jigs hold two parts at a right angle while glue or fasteners set. Pipe and conduit clamps grip a tube of a given outer diameter, often to fix it to a frame. Add-ons for a Mostly Printed CNC extend the frame with end caps, feet or corner blocks, and a separate group covers low-profile workholding for a machine bed.

Before printing, read the author's page for the tube diameter or pipe size the clamp is drawn around, since a few millimetres of difference changes the fit. Check how many parts the model has, whether screws, bolts or threaded inserts are needed, and whether the geometry calls for supports. The material and settings the author lists, along with photos of real prints, tell you more than the title does.

If a search returns too little, try related terms: angle bracket, corner jig, conduit clamp, hose clamp, workholding, or the name of the machine the part belongs to. Searching by the pipe diameter, such as a nominal size in millimetres or inches, narrows the results further. Parametric versions are worth a look when you need a different size, because you can change the dimensions in CAD before exporting an STL.
