3D Models of Ventilation Valves and Duct Flaps

This collection gathers STL files for ventilation valves, including one-way check flaps, backdraft limiters and valves for fan or cabinet exhaust. It is useful when you need to control airflow in a duct or enclosure and want to adapt the part to your own pipe size. The models vary in diameter and mounting style, so you can compare options before printing. Polyzon does not confirm whether models are free, their price, license, official status, affiliation, safety or fitness. Check the current terms at the source.

Il testo di questa raccolta è in inglese; la ricerca funziona in qualsiasi lingua.

Una raccolta di Polyzon · 46 modelli da 8 siti

Come è composta questa raccolta

Polyzon compone questa raccolta a partire dai risultati di ricerca dei siti collegati. I doppioni e i modelli senza anteprima vengono rimossi, le corrispondenze deboli finiscono in fondo e il resto mantiene l’ordine dei risultati. I modelli appartengono ai rispettivi autori: verifica le condizioni sulla pagina di ciascun modello.

Criteri di selezione a cura della redazione di Polyzon · Testo aggiornato: 11/10/2026

Vedi la raccolta Mostra tutti: 17206 modelli →
Raccolta

Da dove iniziare

Tutti i modelli di questa raccolta

Mostra tutti: 17206 modelli
Informazioni sulla categoria

«3D Models of Ventilation Valves and Duct Flaps»

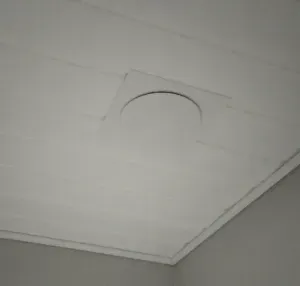

The collection covers several families of parts. One-way check valves use a flap or membrane to allow air in one direction and block reverse flow. Backdraft valves and exhaust limiters serve similar purposes but often mount at the end of a pipe or behind a fan. There are also ceiling and wall valves, which are usually designed as a grille with an integrated flap.

Before printing, check the duct diameter and the mounting method on the author's page. Look at the number of parts, whether the flap is printed separately, and if the design needs supports. The material and settings the author lists matter for moving parts, since a tight clearance can fuse or a loose one can leak. Photos of real prints help you judge how the valve sits in a pipe.

To find more options, try synonyms such as backdraft damper, non-return valve, or duct flap. Related topics include fan adapters, duct connectors, and ventilation grilles. You can also search by nominal pipe size or by the type of installation, like ceiling, wall, or inline.

FAQ

Domande frequenti

What is a ventilation check valve used for?
It allows air to flow in one direction and prevents backflow in a duct. In 3D printing, it is often used for fan exhaust or enclosure ventilation.
How do I choose the right size for a ventilation valve?
Match the valve's inner or outer diameter to your duct or fan opening. The author's page usually lists the nominal diameter and the dimensions of the connecting parts.
Do ventilation valve models need supports?
It depends on the design. Some are modeled to print without supports, while others have overhangs that require them. Check the author's notes and photos.
Can I scale a ventilation valve to fit a different pipe?
Scaling changes wall thickness and clearances, which can affect how the flap moves or seals. It is better to find a model made for your diameter or adjust the design in CAD.
