DIN Rail Stand v2 by philklaus

http://www.thingiverse.com/thing:2144527 DIN Rail Stand v2 by philklaus is licensed under the Creative Commons - Attribution license. http://creativecommons.org/licenses/by/3.0/

# Summary

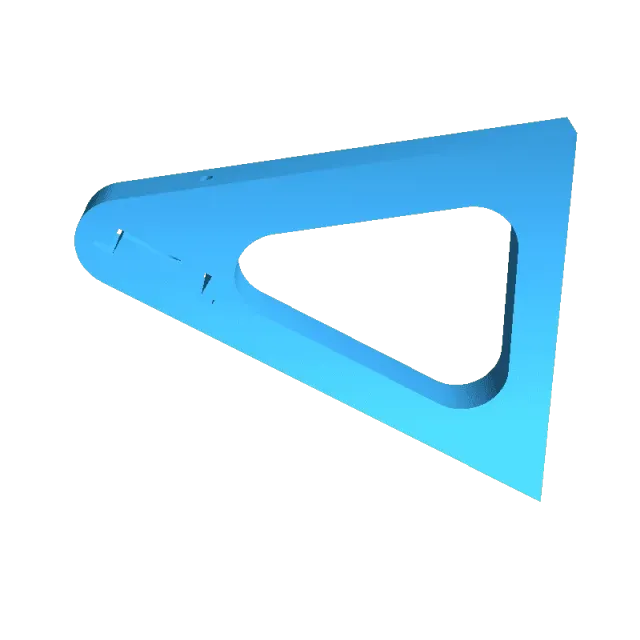

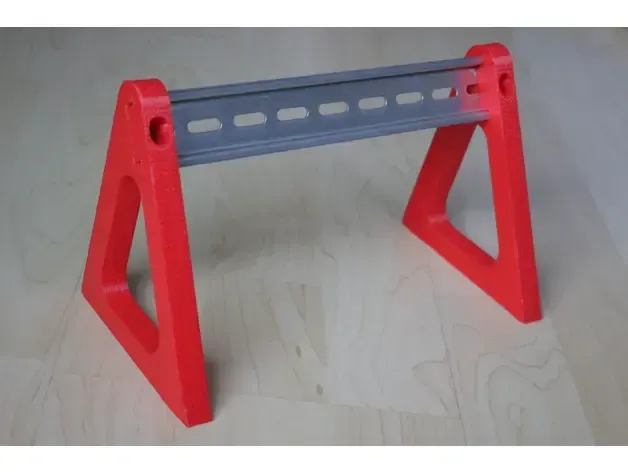

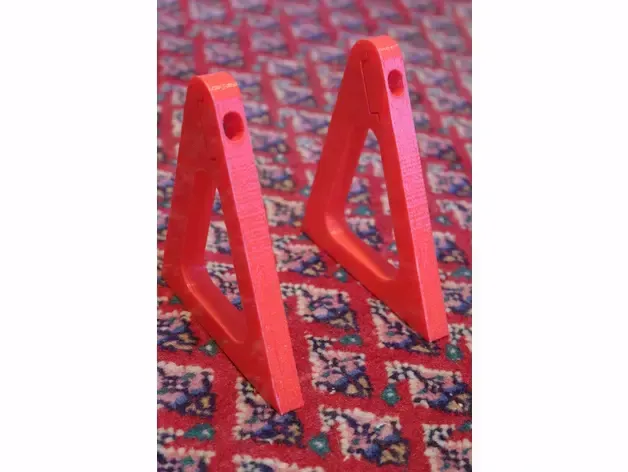

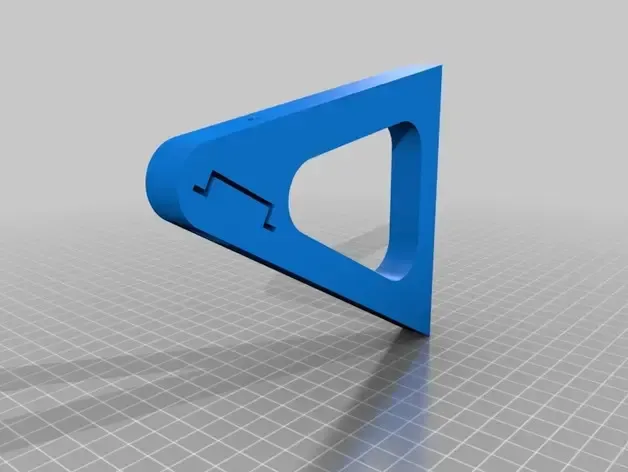

This stand helps you to use a 35x7.5mm DIN rail on your desktop for prototyping, testing, etc. It's a remix of [DIN Rail Stand by dev67](http://www.thingiverse.com/thing:1691998). There are three minor modifications: - Use of an intermediate tolerance of the DIN rail cutout, - an additional hole to secure the rail with a screw, and - slightly slimmer stands.

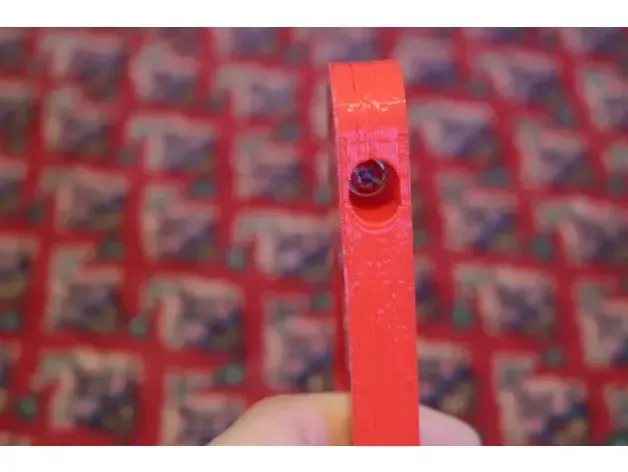

With the intermediate tolerance in the cutout, my printed version fits snugly after pushing the DIN rail in. To further secure the rail, I included a tap hole of 3.3mm to cut an M4 screw thread into it (if you have a tap at hand). There is enough space to use a 9mm wide washer when securing the rail with the M4 screw. Please note that this thing is made for the regular DIN rails (35x7.5mm), not the deep ones (35x15mm).
