ROBIN HV8 Fully 3D-Printed Robotic Humanoid

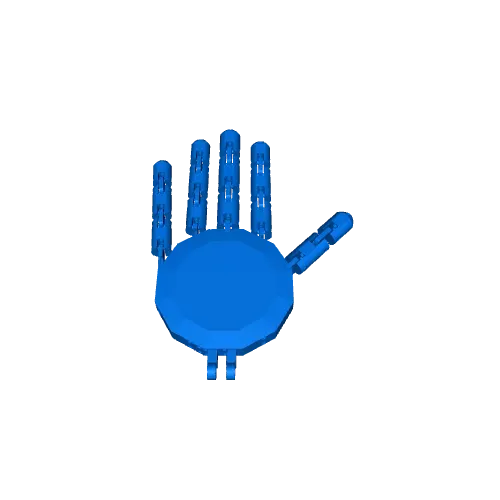

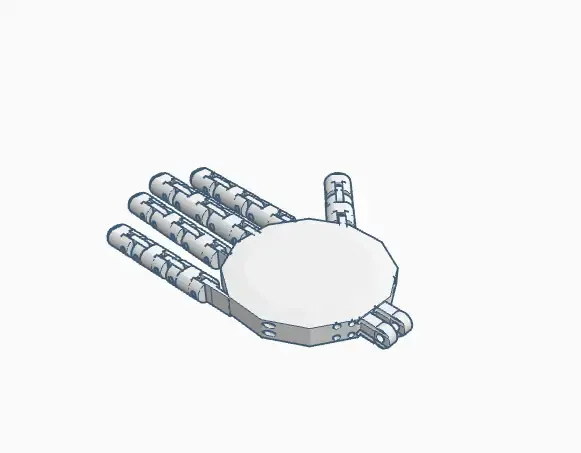

ROBIN or Robotic Optics Biped Intelligent Neural-Network is a full-scale 3d printed humanoid robot I have been working on for the past year. It is primarily designed in Tinkercad to allow anyone at any level to be able to modify and change it. The hand is a print-in-place design that can be printed, and assembled quickly and easily, also allowing for anyone at any level to be able to construct it.

Required:

Electronics: NA Code: NA Other: Fishing line 6$: https://www.amazon.com/Anezus-Fishing-String-Fluorocarbon-Monofilament/dp/B07J62FVCV/ref=sr_1_1_sspa?crid=1PI0UFJYYRRBD&keywords=fishing+line&qid=1682813840&sprefix=fishing+line%2Caps%2C581&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEzT1lZSFRLSVdJU001JmVuY3J5cHRlZElkPUEwMzA4Mzk5MkE5SjFWVjVJVzgzMiZlbmNyeXB0ZWRBZElkPUEwMjU4MzY2MjZEMDJaOVMzV1lNOSZ3aWRnZXROYW1lPXNwX2F0ZiZhY3Rpb249Y2xpY2tSZWRpcmVjdCZkb05vdExvZ0NsaWNrPXRydWU=

Links: (Coming Soon-links for other sections)

Print Settings: 10-20% infill Adhesion: Your choice No Supports

Assembly Instructions: 1. Print 2. Remove adhesion (if added) 3. Put fishing line through the top holes of each finger and finger segment, then through the hand and into the forearm 4. Repeat 3 on the bottom holes 5. Hot glue/tie the fishing line into the top of the servo motors 6. Hot glue/tie the fishing line into the top of the finger holes 7. Using the rod attachment thread the rod through the right side of the hinge pieces at the base of the hand 8. Put the rod through the middle hinge piece 9. Attach the middle hinge piece to the forearm(see forearm print for more information)

Video Coming Soon

Code and Wiring Diagram Coming Soon.
