Creality K1 Filament Spool Holder and Sensor v2.0

Creality K1 Filament Holder and Sensor v2.0

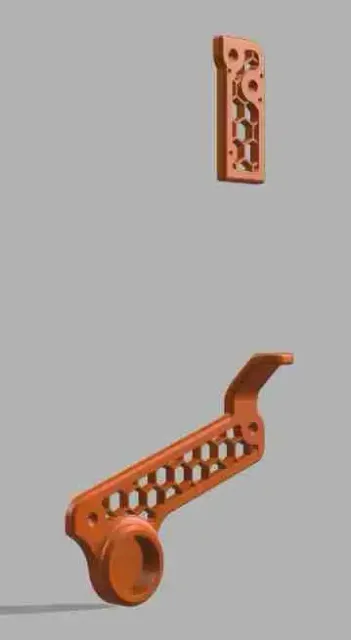

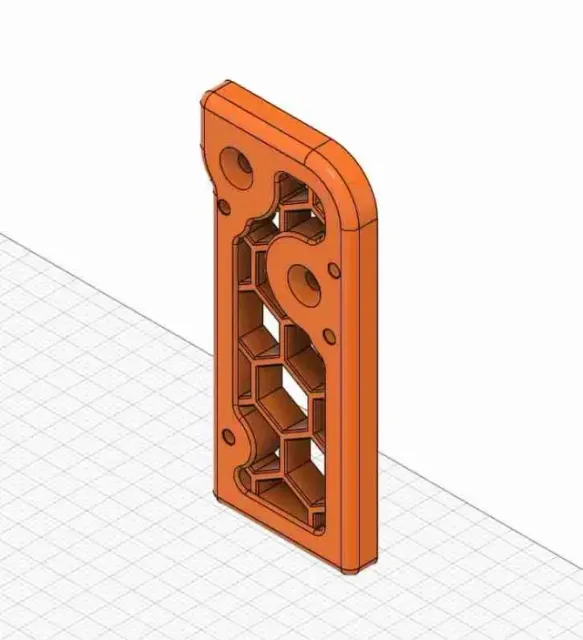

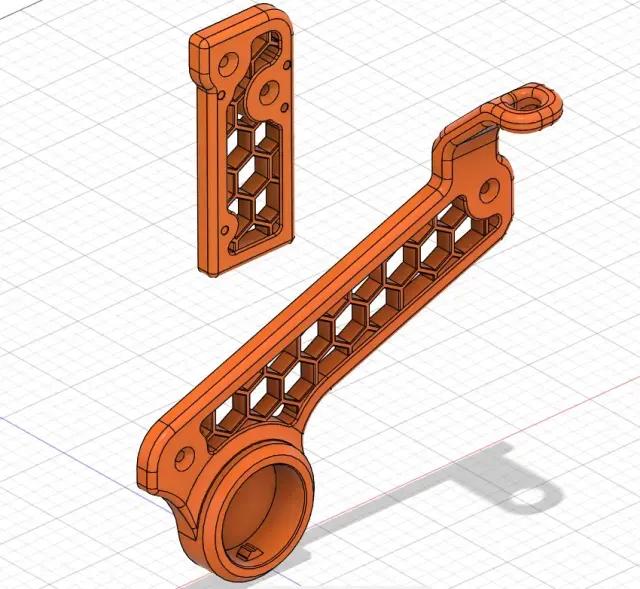

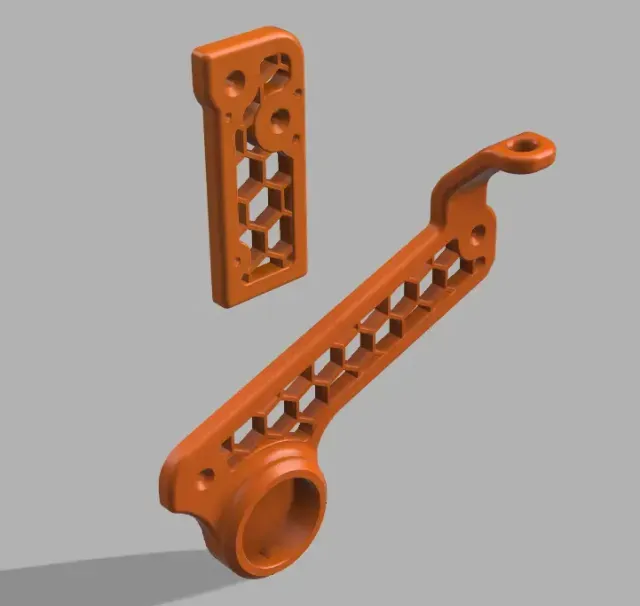

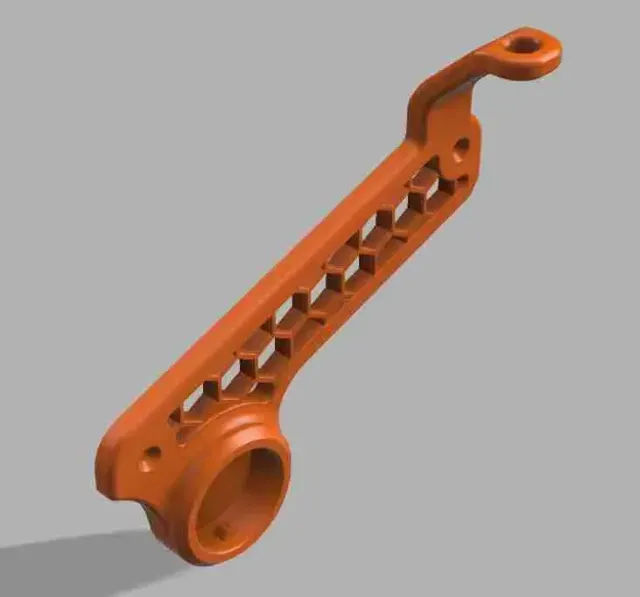

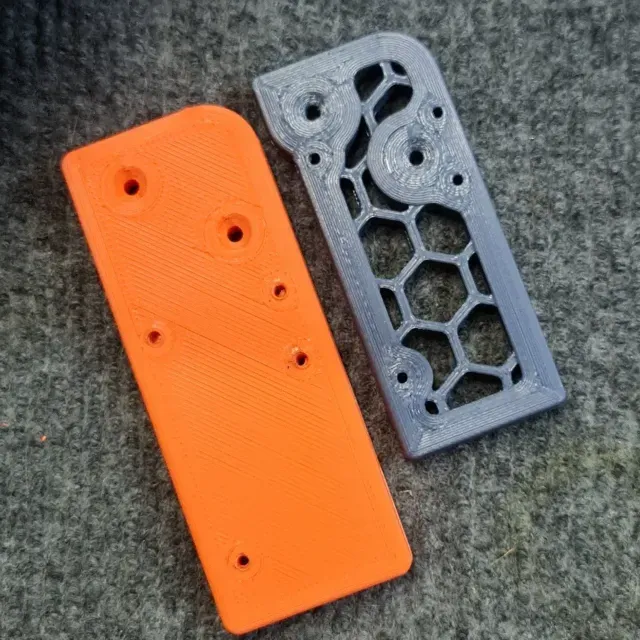

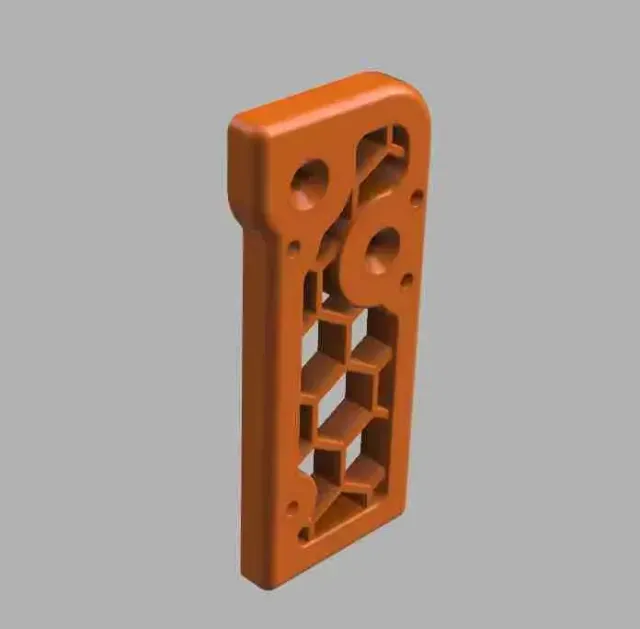

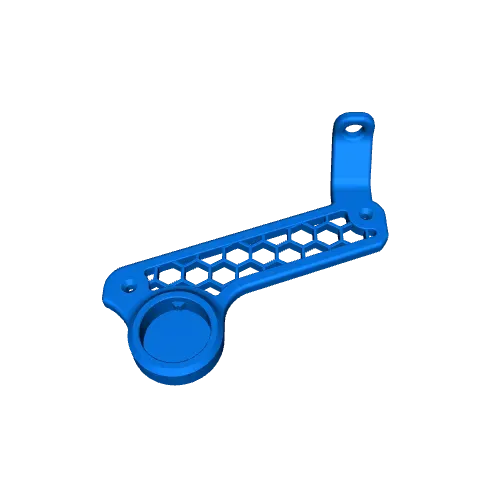

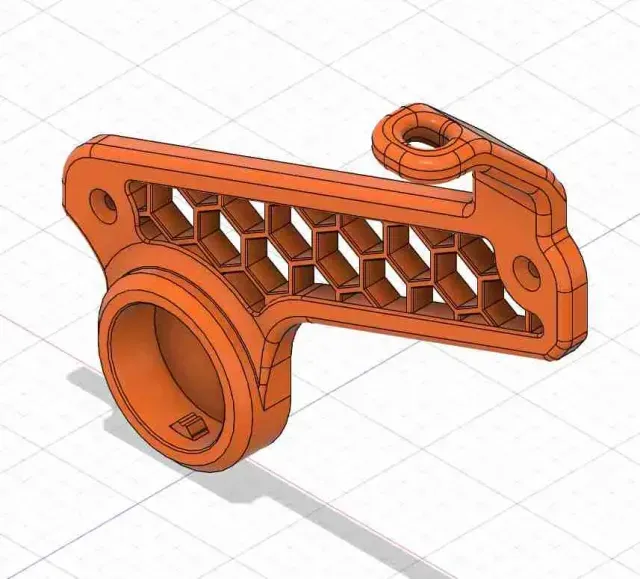

v2.0 - Plate thickness is now 6 mm instead of 8 mm. - The spool axis is inserted 5 mm deeper compared to the previous version. - Added perforations for aesthetics and decor, matching the style of https://www.crealitycloud.com/model-detail/650f1fe66e0ade0c9c9d1008 - Fixed the jamming issue with the sensor mounting holes - they are now centered. - Reduced the sensor mounting bracket - raised the sensor slightly higher and positioned it slightly further back. - Centered the filament guide hole relative to the sensor. - Changed the shape of the filament guide to allow printing without supports, though it requires printing bridges.

Print Settings Material: eSUN PETG Layer height: 0.2 mm Line width: 0.42 mm Wall lines: 6 Infill: 100% Nozzle temp: 236 °C Bed temp: 80 °C Speed: 180 mm/s - Travel: 340 mm/s - First layer: 60 mm/s - External walls: 100 mm/s - Internal walls: 140 mm/s Cooling: 20% - Layers without cooling: 3 Retraction: 2 mm - Retraction speed: 40 mm/s

Additional Materials M3x10 mm screws = 3 pcs. M3x14 mm screw = 1 pc.

All screws use M3 threads. I haven't measured the exact lengths yet. I will fix this oversight soon.

P.S.: Please share your suggestions for modifications! Point out any mistakes I've made, and I will fix them in the next version.
