Creality Ender V3 SE & KE Right-side bin, sloped

Sweep Tray - Right for Ender Series SE and KE.

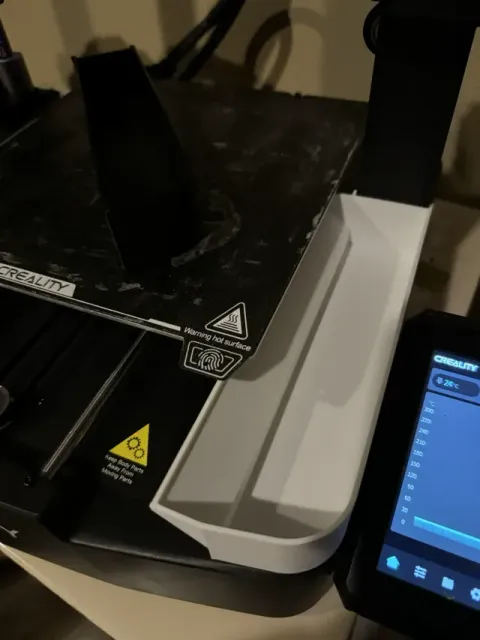

A similar design to my Tray-Right, however this one mounts below the print bed and allows user to sweep filament scrap into bin.

Print orientation:

Print Clippy with the bottom facing down.

Rotate Clippy about 45º to fit on 220 x 220 bed.

Settings Used:

Material: PLA+

Extruder Temp: 210c

Bed Temp: 40c

Layer Height: 0.20mm

Wall Line Count: 4-5

Infill Percentage: 24-50%, although material is no thicker than .07mm.

Support: No

Support Placement: Touching Buildplate

Fuzzy Skin: Disabled
