Tool holder for Ender-3 V3 SE/KE (supportless)



Intro

This holder is intended for the tool kit that comes with the Ender-3 V3 SE/KE.

For those who like to edit the model: see the link at Information.

Note: The tool holder has been tested on model KE. Manually check the interference on model SE.

Properties are:

- The design is very compact.

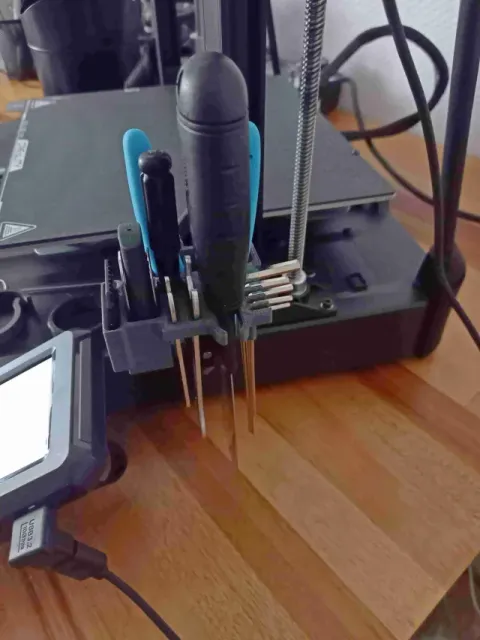

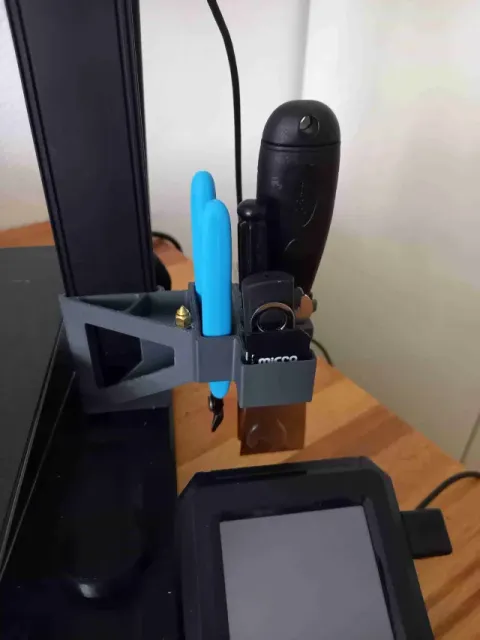

- The holder does not require any mounting material and detaching of printer elements. It clicks around the right leg of the gantry.

- Due to the downward protected placement, the sharp points of the cutting pliers do not pose a risk of injury. NOTE: Squeeze the cutting pliers before hanging.

- The spatula can be hung by feel without threading, after which it is secured against unintentional sliding out.

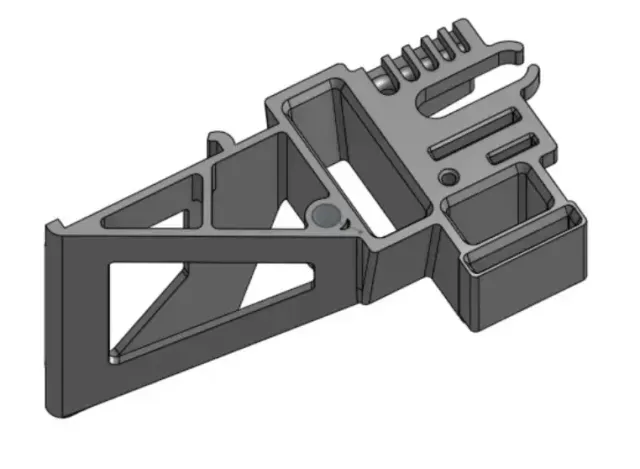

- Most of the sharp edges of the holder are rounded (no "Tinkercad" and "Sketchup" angularity).

Information at Thingiverse

For all latest/extra information and recent models see also https://www.thingiverse.com/thing:6449058 .

Print Settings:

- Printer brand: Creality

- Printer: Ender-3 V3 SE/KE

- Resolution: 0.2 mm

- Wall thickness: 0.8 mm

- Infill: 15-20%

- Filament material: PLA or even better, the more flexible PETG

- Print the holder upside down. Then no support is needed when the setting of the support overhang angle is ≥45° relative to the print bed. Mounting Instruction

See the mounting instruction video at Thingiverse (https://www.thingiverse.com/thing:6449058).
