Easter egg box (with a key lock)

Сведения о модели

Площадка
Creality Cloud
Цена
Бесплатно
Лицензия
CC-BY-NC
Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы
3MF
  • 260 Лайки
  • 307 Загрузки
  • 150 Напечатали
  • 272 В подборках
  • 3 Бусты
  • 12 Комментарии
  • 6 249 Просмотры

Эта модель на других площадках

Автор:AXIOM Prints

Опубликована

Описание

Themed Easter candy box in which you can not only hide something but also lock it

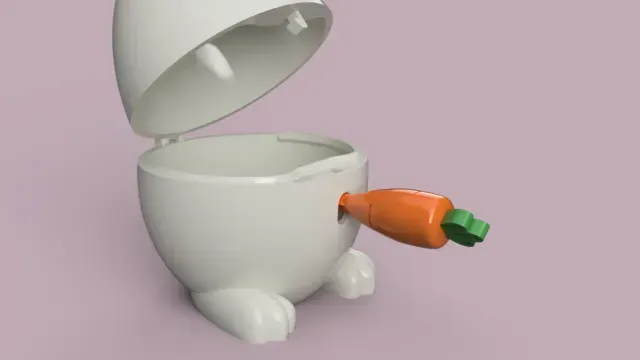

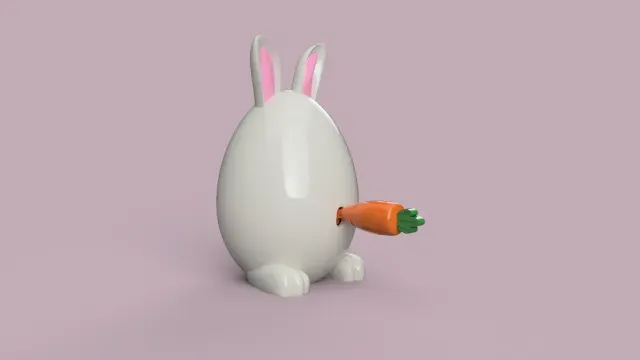

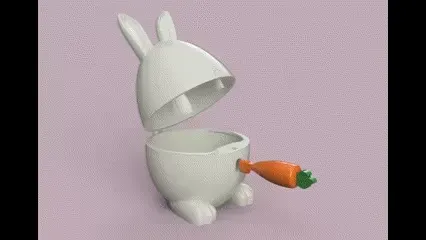

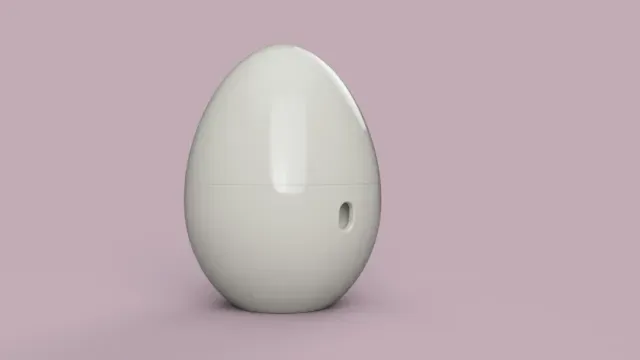

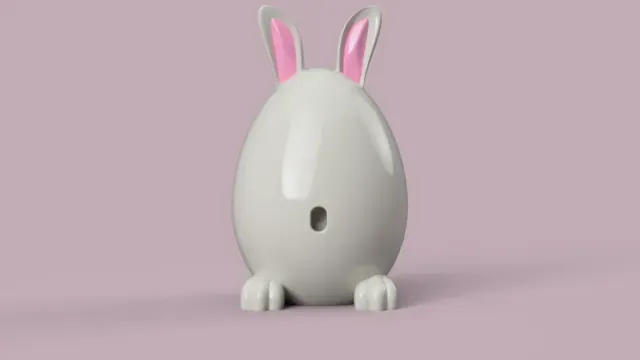

There are 2 models of boxes to choose from: An egg box and an egg box with rabbit ears and feet.

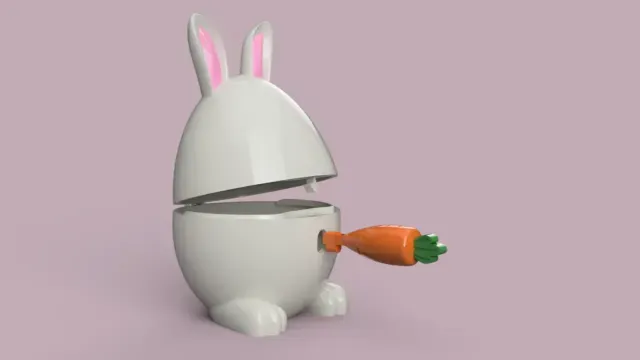

Also 3 models of keys: Carrot key 3D,Carrot key 2D,Egg key

Instructions:

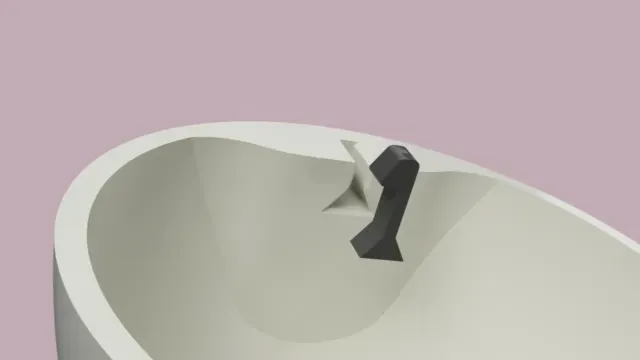

Take the finished top of the box and insert the lock into the hole made on the inside (shown in the photo)

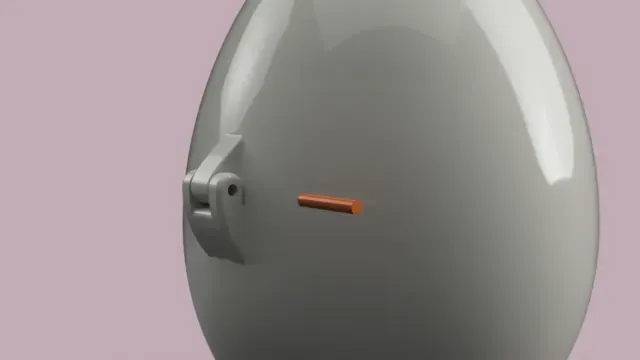

Then connect the top and bottom of the box and insert a piece of filament into the box loop (shown in the photo) so that it goes through, then cut off the excess thread! (you may need to clean the holes depending on the cleanliness of the print)

And you can use the box :)

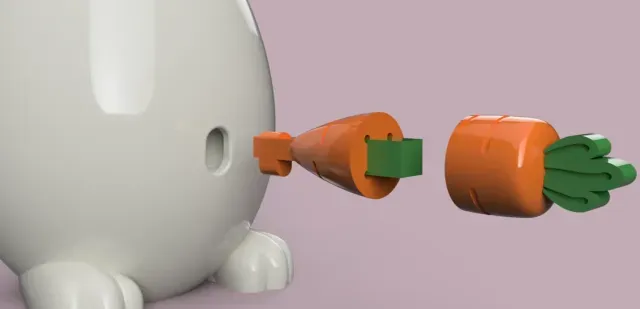

Carrot key assembly print 3 models : Carrot key 3D (Bottom),Carrot key 3D (Top),Carrot key conector

then take any part of the key, insert the connector into it, then take the other part of the key and connect

Print settings:

Printer: Creality K1

Nozzle: 0.4

Build Plate: PEI

Slicer: Creality Print

Plastic: Creality Hyper PLA

Layer Height: 0.20

Line wight: 0.42

Wall lines: 2

Filling: 15%

Temp nozzle: 210°

Temp bed: 60°

Print Speed: 300.00

Infill Speed: 300.00

Outer Wall Speed: 210.00

Inner Wall Speed: 240.00

Top Surface Skin Speed: 210.00

Top/Bottom Speed: 210.00

Cooling: ON

Ironing: Off

Support: Off
