K1 MAX RAISER / LID / TOP COVER / UPGRADE (VERSION 2)

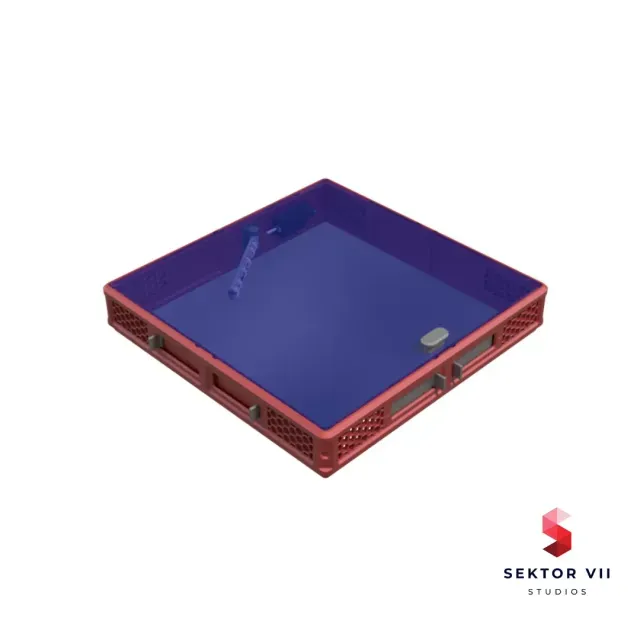

Introducing the Ultimate Lid Extension for Your CREALITY K1 MAX 3D Printer in VERSION 2 WITH SWING-ARM! (no supports needed)

Welcome to Sektor 7 Studios, where innovation meets performance. We’ve meticulously crafted a high-quality lid extension (Raiser) for your Creality K1 MAX printer, designed to elevate your printing projects to the next level.

After the many requests to design a raiser for the K1 MAX, we complied and thought about how we could realise the raiser for the K1 Max.

As with our raiser for the K1 & K1C, there will be several versions.

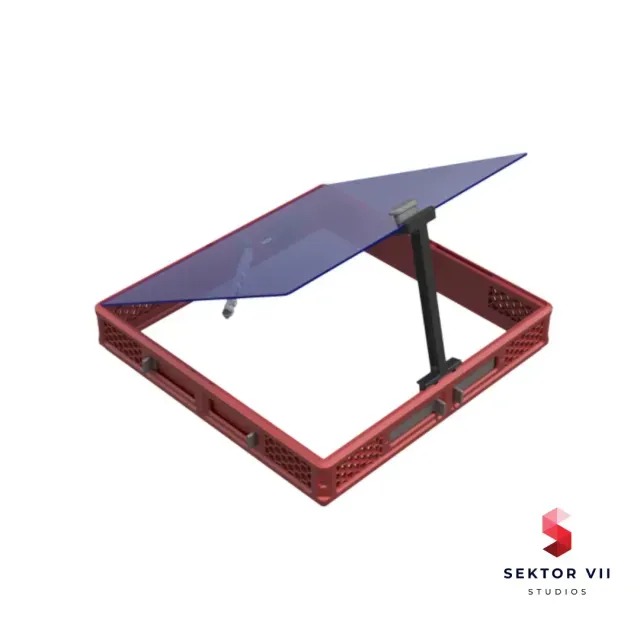

**THIS IS VERSION 2 FOR K1 MAX --> WITH SWING-ARM**

We have designed two different versions: - Version 1 (without SWING-ARM) --> https://www.crealitycloud.com/model-detail/66d807316afb3f8da13fc388 - Version 2 (this one, Upgraded version with SWING-ARM, for advanced users)

Both versions have their advantages, choose the one you like the most!

We'll post the printed raiser later as a picture and video in the "Makes" section

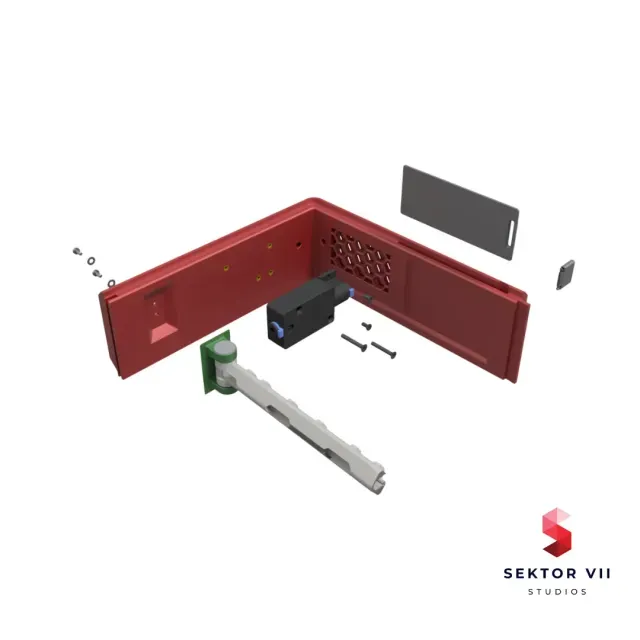

★ OUR STL FILES OFFER YOU: - Perfect Fit on Creality K1 Max - Enhanced Functionality - Improved Print Quality - Easy Installation - Noise reduction - More moving space for the Bowden tube - Air supply regulation & indirect control of the temperature - Bowden tube passage to the back and side (you can choose) - Detailed assembly instructions are supplied as a download - Detailed print settings are supplied as a download - More mobility of the filament tube and the power cable (no annoying slapping of the chain against the printer) - Side filament outlet - Filament sensor is located inside the raiser

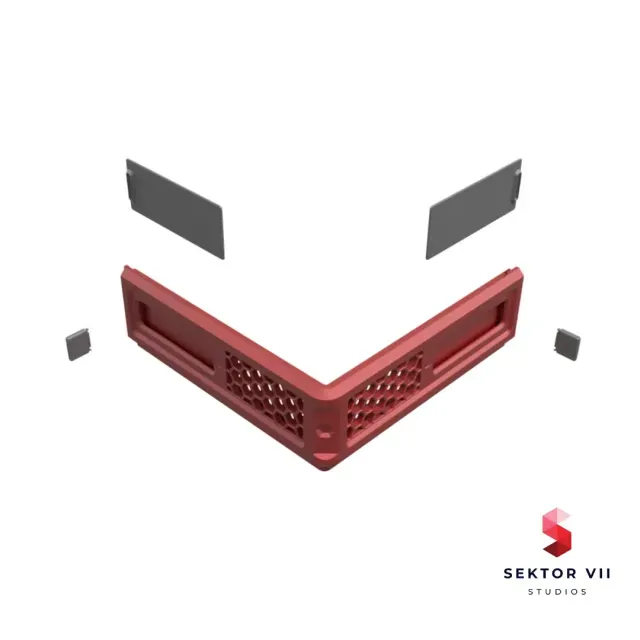

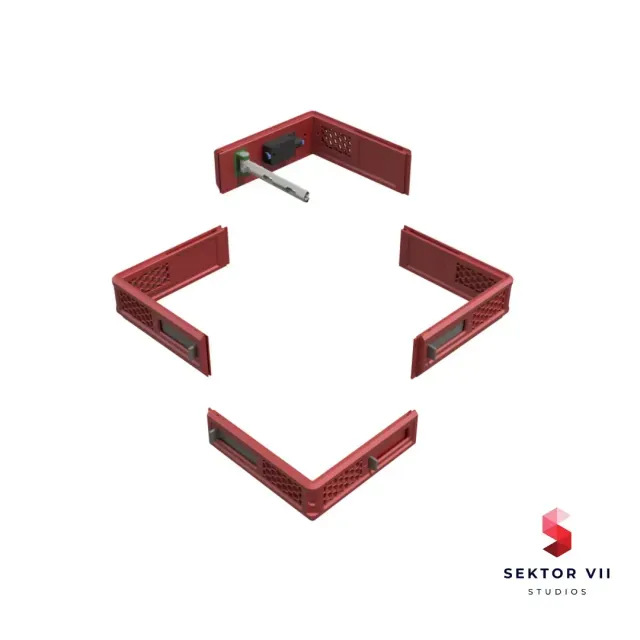

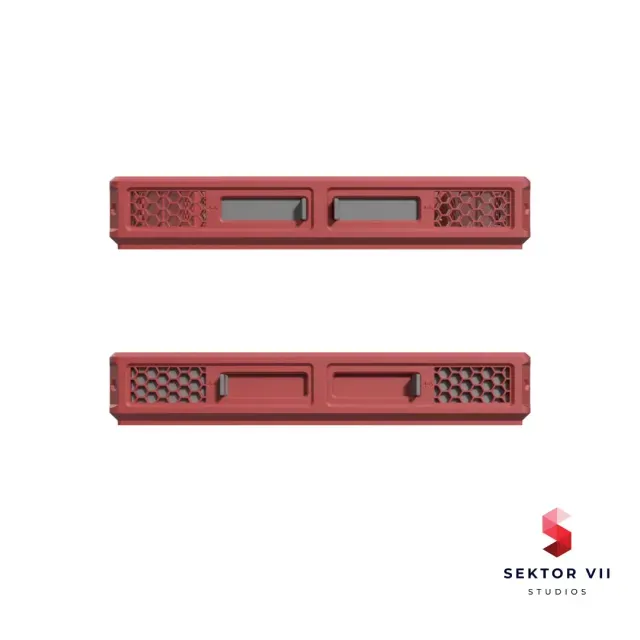

★ THE FOLLOWING PARTS MUST BE PRINTED: - PART_RAISER_K1-MAX_VERSION-2 (3 TIMES) - PART_BACK-RIGHT_RAISER_SWING-ARM_K1-MAX_VERSION-2 (ONCE) - SLIDER_K1-MAX (8 TIMES) - CONTROLLER_WITH_LOGO_K1-MAX (8 TIMES) or CONTROLLER_WITHOUT_LOGO_K1-MAX (8 TIMES) - GLASS_HOLDER_K1-MAX (ONCE) - PLUG (1 OR 2 TIMES) - PLUG_WITH_HOLDER (1 OR 2 TIMES) - DRIVE-SHAFT (ONCE) - HOLDER_SWING-ARM (ONCE) - SWING-ARM (ONCE) - SWING-ARM_CLIP (6 TIMES) - BEARING-COVER_TOP (ONCE) - BEARING-COVER_BOTTOM (ONCE) - CABLE_CLIP_DOUBLE (2 – 3 TIMES) - CABLE_CLIP_TRIPLE (3 – 5 TIMES) - CABLE_SUPPORT (ONCE)

★ PRINT SETTINGS (Please read the INSTRUCTIONS and the PRINT SETTINGS) - Printing Material: PLA/PETG/ABS/ASA (heat-resistant filaments are recommended, but not absolutely necessary) - Nozzle: 0.4mm - Infill: 15% (Gyroid or Grid) - Layer Height: 0.2mm (Attention! CONTROLLER + SLIDER with 0.1 mm or 0.16 mm layer height) - Walls: 2 - Support Structure: no support needed (we have modeled the supports for you in the model, these must be removed with a click after printing) - Recommendation: BRIM with 5 lines, 100mm/s print speed (Attention! CONTROLLER with minimum 8 lines)

★ TAKE A LOOK AT OUR OTHER SUITABLE UPGRADES:

- K1 MAX RAISER (VERSION 1) --> https://www.crealitycloud.com/model-detail/66d807316afb3f8da13fc388

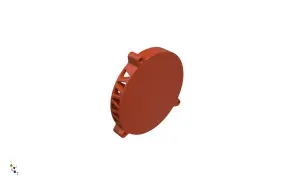

- K1 / K1C / K1 MAX SERIES FAN SILENCER --> https://www.crealitycloud.com/model-detail/662e71008e22f8a77fd4be36 - FILAMENT HOLDER --> https://www.crealitycloud.com/model-detail/660d6c3a34034d98950a25c2 - FILAMENT SPOOL HOLDER (K1 MAX) / DIGITAL SPOOL RACK CREALITY --> https://www.crealitycloud.com/model-detail/66368a138e22f8a77ff45eec

- RAISER FOR K1 / K1C (VERSION 1) --> https://www.crealitycloud.com/model-detail/660c1ef234034d9895056fb2 - RAISER FOR K1 / K1C (VERSION 2) --> https://www.crealitycloud.com/model-detail/6635542a8e22f8a77fefc956

★ NOT QUITE SURE IF YOU WANT THE RAISER YET? GET AN OVERVIEW WITH OUR DETAILED MOUNTING & PRINTING INSTRUCTIONS: - https://sektor7.studio/creality-k1-max-raiser-riser-top-cover-upgrade-version-2/#lepopup-k1max-v2-instructions

If you have any questions feel free to contact us. You can contact us under the following email:

- support@sektor7.studio

Follow us on here on CrealityCloud and Patreon for more elegant and functional designs.

Support us on Patreon to access exclusive content and be the first to see our new projects. Your support enables us to keep creating innovative and practical designs for makers everywhere

Greetings

Leon from Sektor 7 Studios
