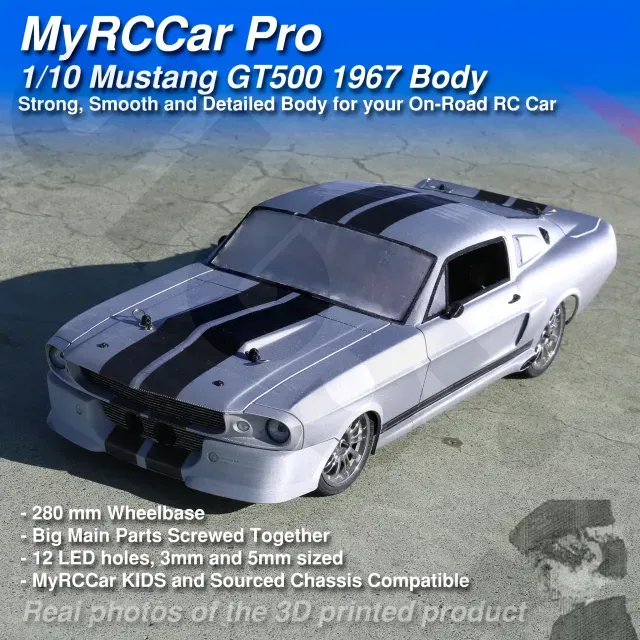

MyRCCar Mustang GT500 1967 1/10 On-Road RC Car Body

https://skfb.ly/6U6VC

Here you have the best model published so far in the MyRCCar ecosystem ;)

This is a great piece of work by my cousin Rockser3D. Using the blueprints of the 1967 Mustang GT-500, he has completely modeled this beautiful 1/10 RC car body, always keeping FDM 3D printing in mind.

Main Features

- The model is divided into 3 main parts, along with some smaller parts like the front bumper and rear trunk, and a lot of extra detail parts such as lights, mirrors, windows, handles, oil cup, radiator, and more.

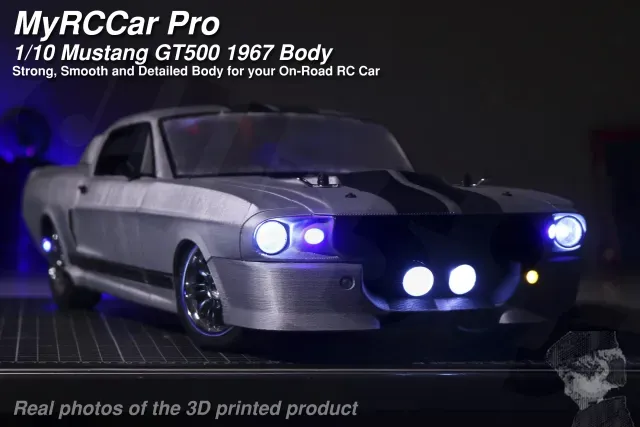

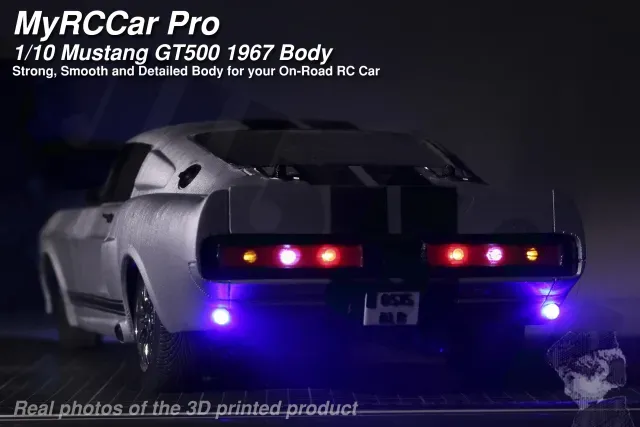

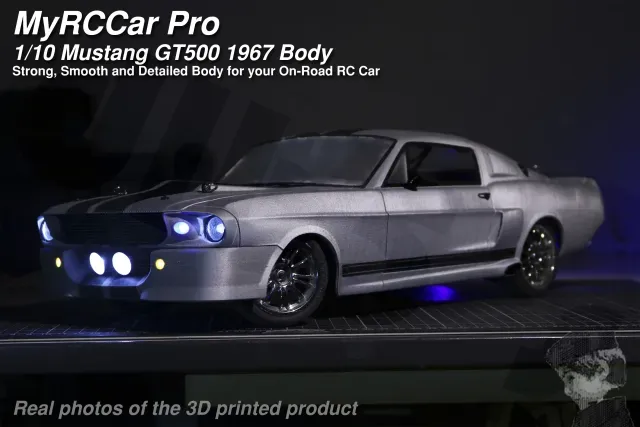

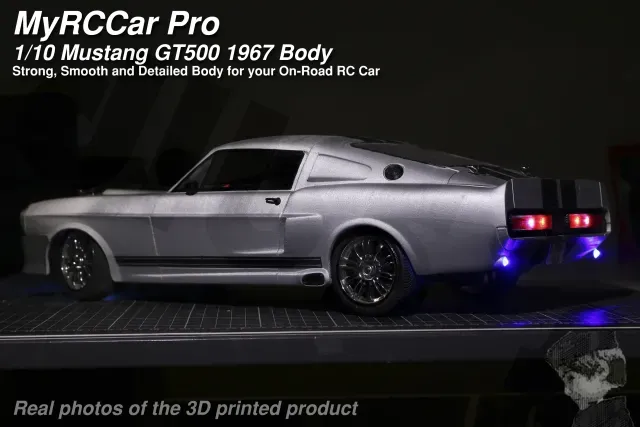

- It features 8 holes for lights in the front and another 8 in the rear, so you can create a great "Light Show" with this one ;) - When printed in PLA, it can survive some rolling (it has), but it probably won't be indestructible against other types of impacts.

- You will need between 500g and 1000g of plastic to build the body. It has no flexible parts (though TPU is recommended for the rear-view mirrors), but you might need transparent PLA for the windows and light lenses.

- The large parts are screwed together instead of glued, which makes the assembled body feel quite rigid!

- You will need very little to no supports for the 3 main large parts, and only minimal supports for some of the detail parts

Specifications

- Total width (without rear-views): 200mm - Total length: 490mm - Wheelbase: 280mm - Height: ~120mm

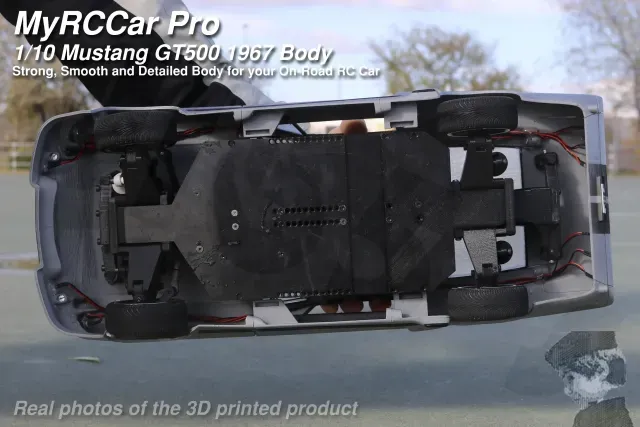

Under the hood, there is actually a MyRCCar KIDS On-Road Chassis, and I'm using some flexible holders for the body, which makes the setup quite resistant to minor impacts and handling.

If you have a 280mm wheelbase chassis with an axle width smaller than 195mm (maybe even a little less), you will probably be able to use this body too! You will need to drill the holes in the right place for your body holders or glue in your magnets. You will also need a "low profile" chassis front part to accommodate the body as low as possible.

I have provided two versions for the windows. In the 1-piece version, the frame and glass will be just one part. On the other hand, you can find separate "frames" and "glass" for each window if you prefer to print them separately.

If you are going to use it with the MyRCCar KIDS On-Road, you will need some "Spacers" for the rear body holding system. Those are also provided.

3D Printed Parts List

- MRCC_Mustie_MainBody_Cabin - MRCC_Mustie_MainBody_Front - MRCC_Mustie_MainBody_Front_Bumper - MRCC_Mustie_MainBody_Rear - MRCC_Mustie_MainBody_Rear_Trunk - MRCC_Mustie_Details_Bands_Central - MRCC_Mustie_Details_Bands_Sides - MRCC_Mustie_Details_Exhaust_Left - MRCC_Mustie_Details_Exhaust_Right - MRCC_Mustie_Details_FuelCup - MRCC_Mustie_Details_Handle_Left - MRCC_Mustie_Details_Handle_Right - MRCC_Mustie_Details_HoodHolder_Left - MRCC_Mustie_Details_HoodHolder_Right - MRCC_Mustie_Details_LightBlock_Front_3mmLedHolder_Body - MRCC_Mustie_Details_LightBlock_Front_3mmLedHolder_Lens - MRCC_Mustie_Details_LightBlock_Front_5mmLedHolder_Body - MRCC_Mustie_Details_LightBlock_Front_5mmLedHolder_Lens - MRCC_Mustie_Details_LightBlock_Front_Big_body - MRCC_Mustie_Details_LightBlock_Front_Big_Lens - MRCC_Mustie_Details_LightBlock_Front_Big_Old - MRCC_Mustie_Details_Radiator_Bottom - MRCC_Mustie_Details_Radiator_Top - MRCC_Mustie_Details_RearLights_Left_Body - MRCC_Mustie_Details_RearLights_Left_Cover - MRCC_Mustie_Details_RearLights_Right_Body - MRCC_Mustie_Details_RearLights_Right_Cover - MRCC_Mustie_Details_RearLightsHolder - MRCC_Mustie_Details_RearView_Left - MRCC_Mustie_Details_RearView_Right - MRCC_Mustie_Windows_Frame_Left - MRCC_Mustie_Windows_Frame_Rear - MRCC_Mustie_Windows_Frame_Right - MRCC_Mustie_Windows_Frame_WindShield - MRCC_Mustie_Windows_Glass_Left - MRCC_Mustie_Windows_Glass_Rear - MRCC_Mustie_Windows_Glass_Right - MRCC_Mustie_Windows_Glass_WindShield - MRCC_Mustie_Windows1piece_Left - MRCC_Mustie_Windows1piece_Rear - MRCC_Mustie_Windows1piece_Right - MRCC_Mustie_Windows1piece_WindShield - MRCC_KIDS_BodyHolder_MustieSpacer_PartOne - MRCC_KIDS_BodyHolder_MustieSpacer_PartTwo

Sourced Parts List

- Some cyanoacrylate or strong glue - M3x12-16 screws - 4 Body Clips - 12 Led Smart RC Car lighting system + extra leds (5mm and 3mm leds)
