Creality K2 Plus Hepa and Carbon Filter Box (In Printer)

Please don't forget to share your makes as this would help me.

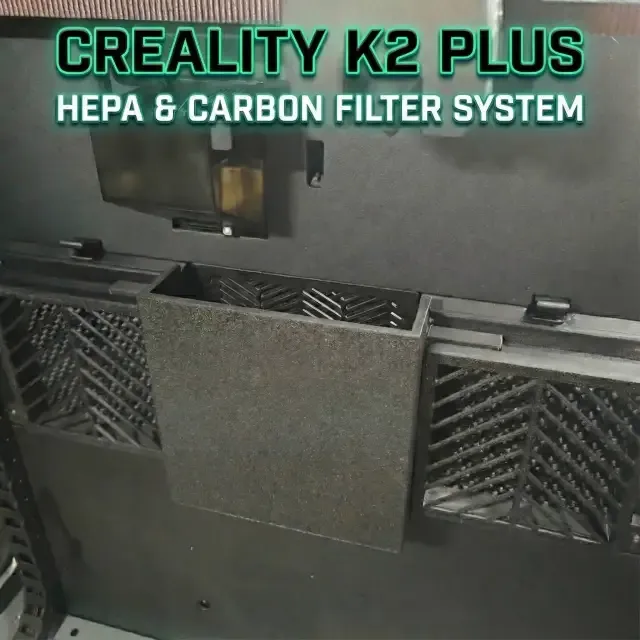

This upgrade replaces the stock filter housing to improve air quality and accessibility. It is specifically designed for users who keep their printer against a wall, allowing you to change filters from inside the chamber rather than the back.

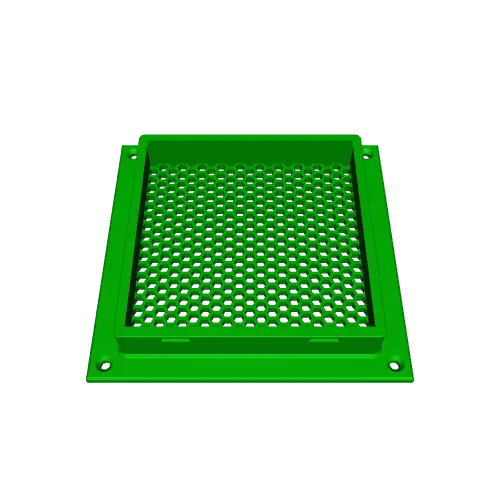

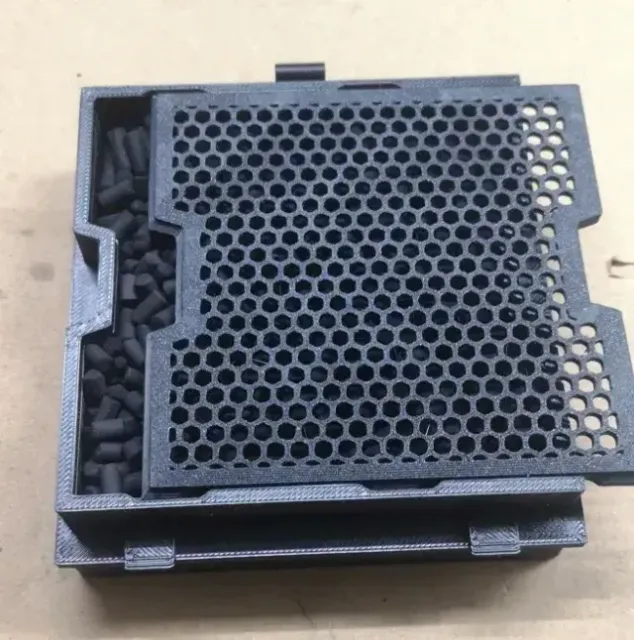

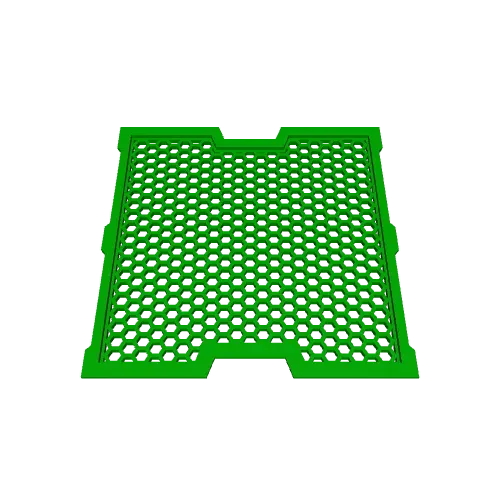

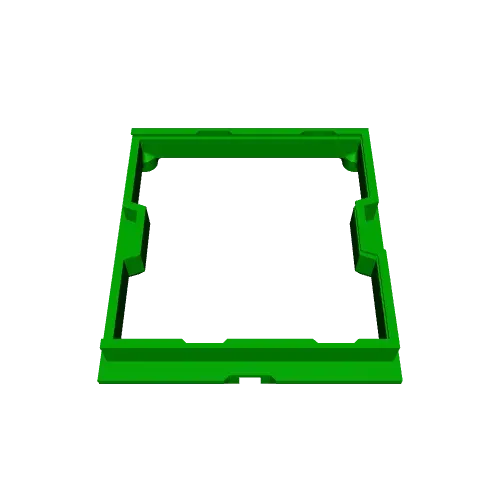

1. The Filter Box

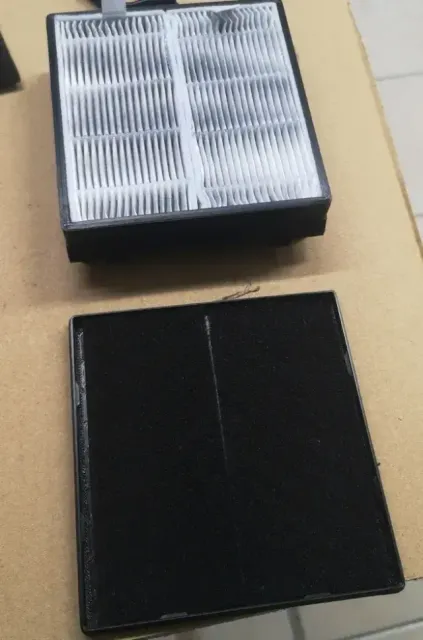

* Function: Holds a dual-stage filtration system.

* Stage 1 (Carbon): A refillable compartment for Activated Carbon Pellets (removes odors/VOCs).

* Stage 2 (HEPA): A front slot for a HEPA filter (removes fine particles).

* Hardware Required:

* M3 x 6mm screws (to secure the HEPA filter).

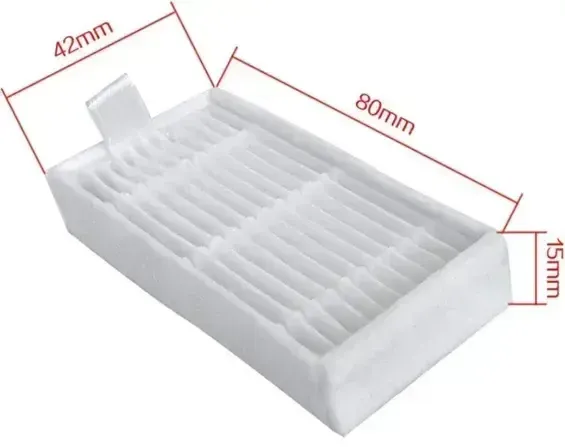

* HEPA Filter: Uses generic robot vacuum filters. Search Amazon for: "Ilife Vacuum model V3 / V3s / V5 / V5s Pro filters" (Dimensions approx. 40x80x15 mm).

2. The Air Intake Blocker

* Function: Prevents the intake fan from blowing air directly onto the print, which causes warping and deformation.

* Installation: No screws required. It fits in front of the intake fan.

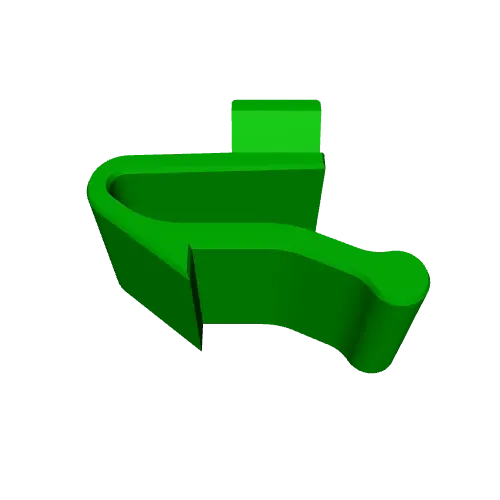

* Mechanism: Features hinges that sit on top of the HEPA filter box and are squeezed securely in place by the filter caps.

Printing Recommendations

* Material: ABS or ASA is strongly recommended because the part sits inside a heated chamber. (PETG is listed as an option, but may warp if you print at high chamber temperatures).

* Infill: Standard structural settings (15-25%).

Summary of Benefits

1. Easier Maintenance: No need to move the printer to change filters.

2. Better Filtration: Combines HEPA and Carbon for both fumes and particles.

3. Print Safety: The air blocker protects your prints from unwanted drafts.
