Filament Coil Holder Ender3 V3 SE, Ender3 V3 KE

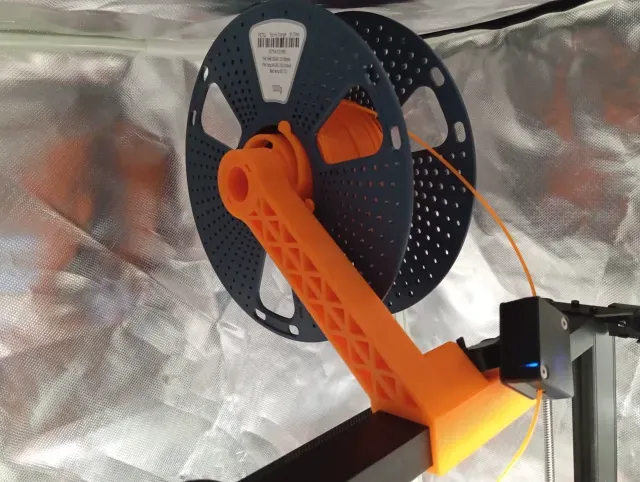

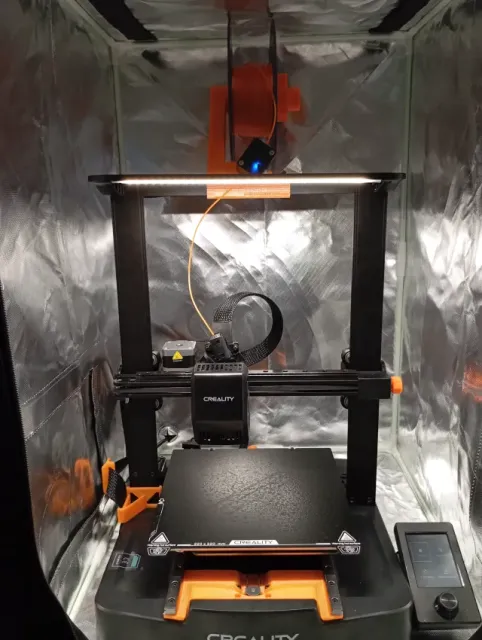

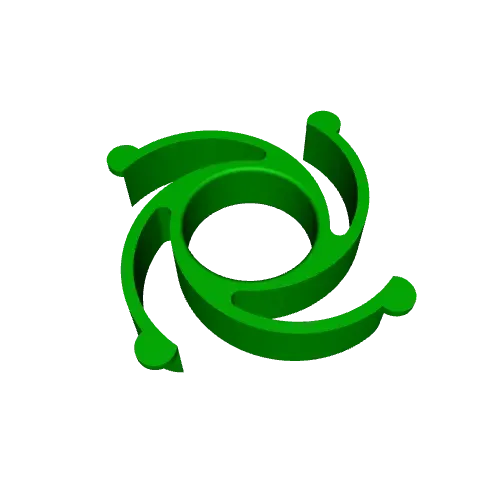

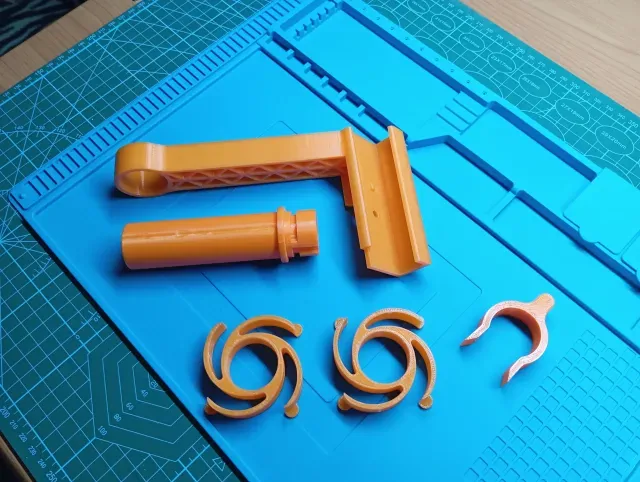

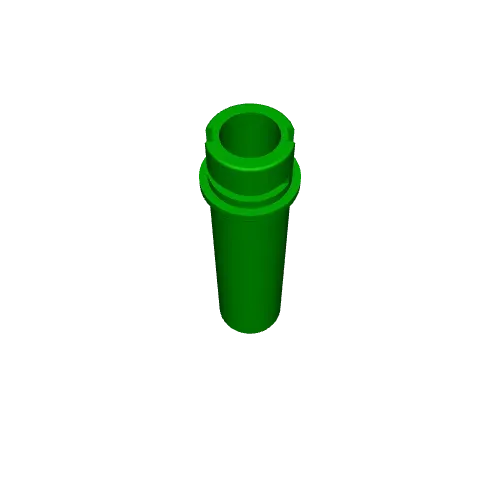

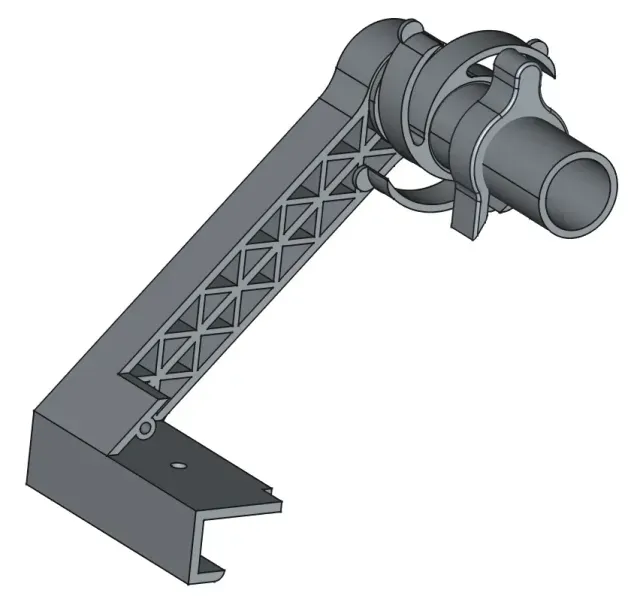

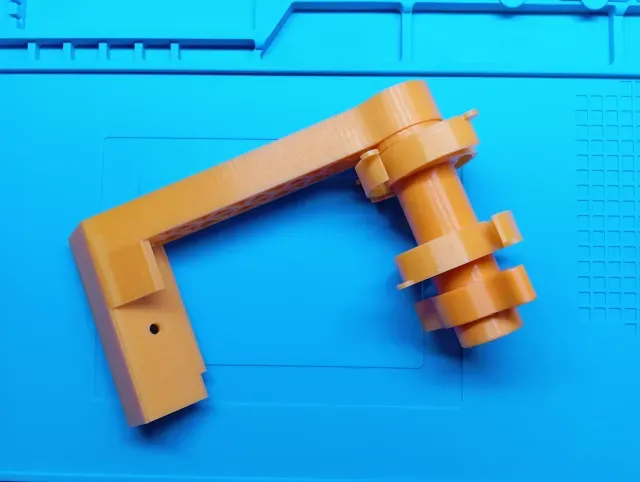

Filament coil bracket for Ender3 V3 SE and Ender3 V3 KE printers. The set includes a bracket, a bushing, a coil adapter, and a retainer. Designed in the style of the Creality Ender 3 S1. The coil is installed longitudinally to lower the center of mass, and the adapters compensate for the diameter difference between the sleeve and the coil. It attaches to the standard mounting location. A mount is provided for a standard filament runout sensor. The bracket kit eliminates portal swinging caused by transverse coil vibrations, improving overall print quality.

Printed using PETG, 0.4mm nozzle, 3 walls, 35% gyroid infill. An M3 knurled nut is installed at the filament sensor mounting point using a soldering iron.

Link to purchase the nut:

https://aliexpress.ru/item/1005007032671116.html?spm=a2g2w.orderdetail.0.0.26794aa6y9YTUe&sku_id=12000039159171889
