Nissan Skyline GTR R34 Kit Card

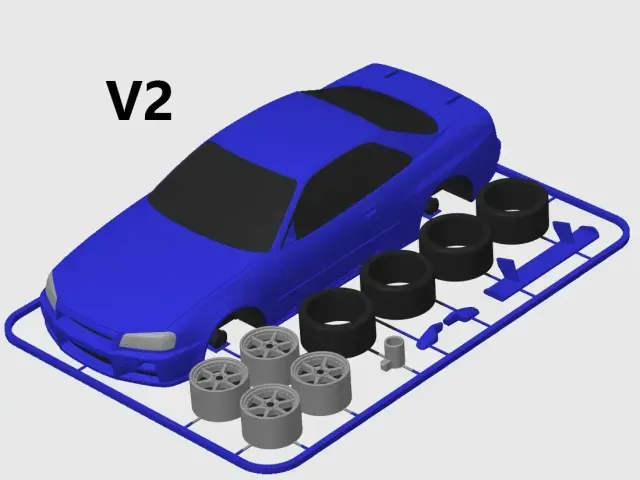

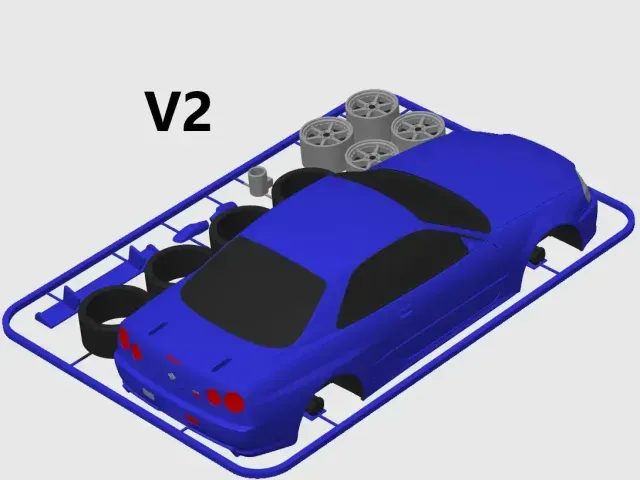

Update 01.06.2024: Added V2. New: - body/chassis is now one part (front integrated). The needed print bed sizes has increased! - complete new repaint (closer to the original car)

Update 26.05.2024: Fixed error in 3MF-file.

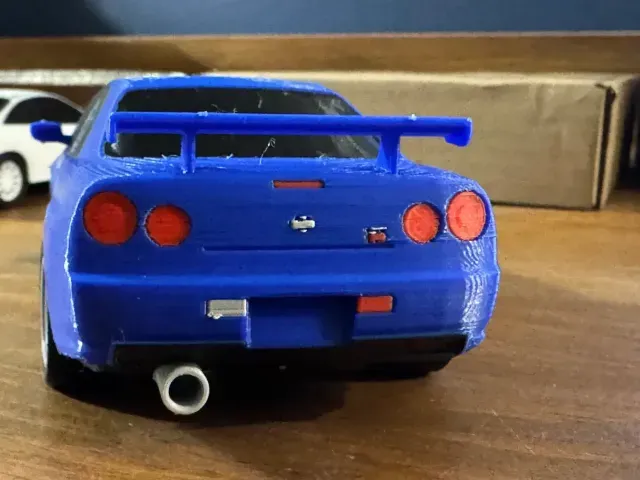

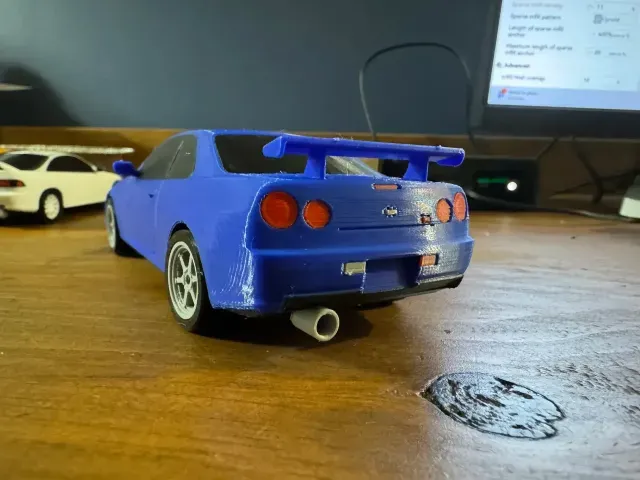

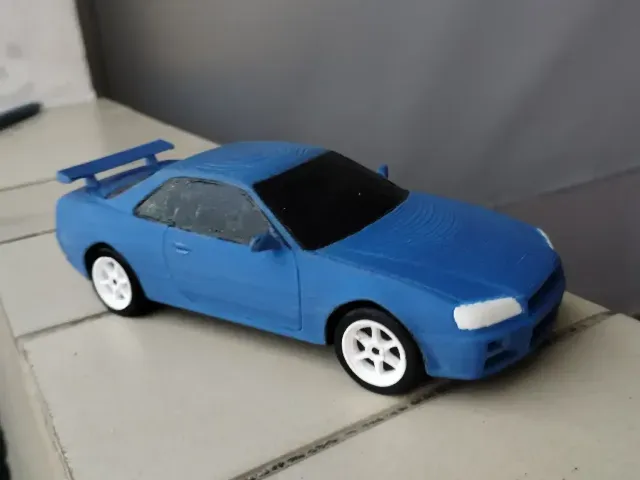

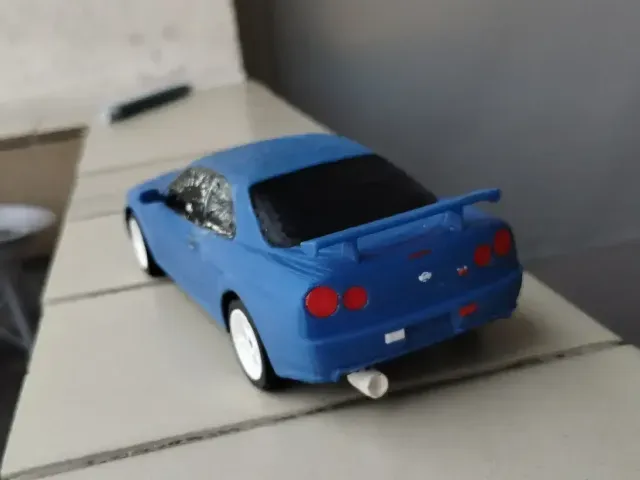

Summary This is a model of a Nissan Skyline (R34) GTR in a kit / gift card style. Some characteristic details can be discovered. Equipped with separate spoiler and exhaust :) After printing, the model can be assembled with the help of integrated connectors. The wheels can be turned, but the car will not roll.

Versions The complete set is available in an STL file for a one-color print. There is a 3MF-file with predefined colors intended for users of AMS or MMU. Otherwise, the body, rims and tires must be printed separately. V1 is desired to fit smaller print beds.

Print Print with 0.15 layer height or lower to bring up the details. I printed mine in 0.2mm layer height. No supports are needed. Use 3 perimeters and 10% infill.

Post processing The small struts can be removed really quickly and cleanly using a side cutter.

Assembly The kit is easy to assemble. All parts fit together very well. If a part should be loose, superglue can be used.

Dimensions The fully assembled model has the following dimensions Height: 48mm Depth: 164.4mm Width: 70mm (including side mirrors)

The complete kit card has the following dimensions when printed Height: 39.5mm (V2: 39.5mm) Depth: 158.8mm (V2: 169.5mm) Width: 137mm (V2: 121.5mm) Scaling will work in a low range due to the tolerances.

Other models I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

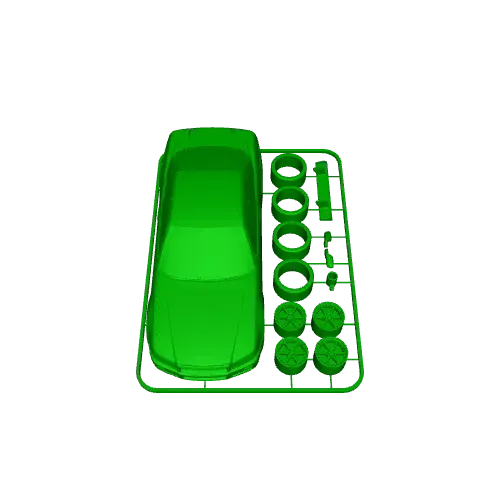

models disassembled into individual parts and arranged connectors added connected in kit card style and framed painted for AMS / MMU
