Nissan Skyline GTR R32 Kit Card (1:24 scale)

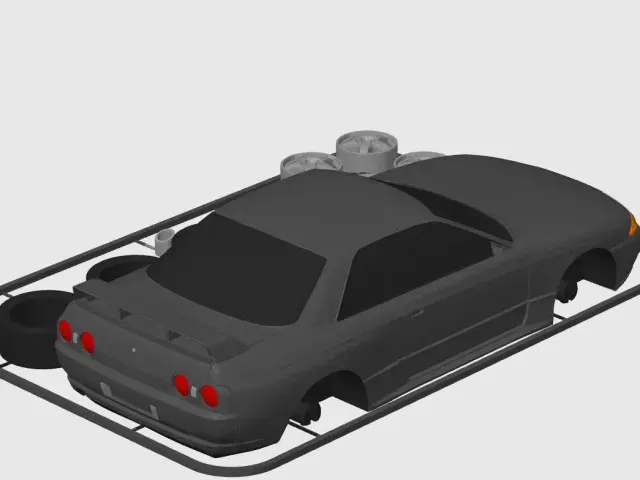

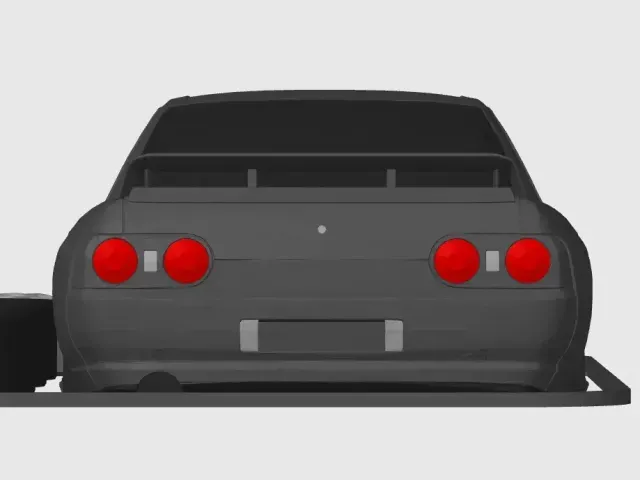

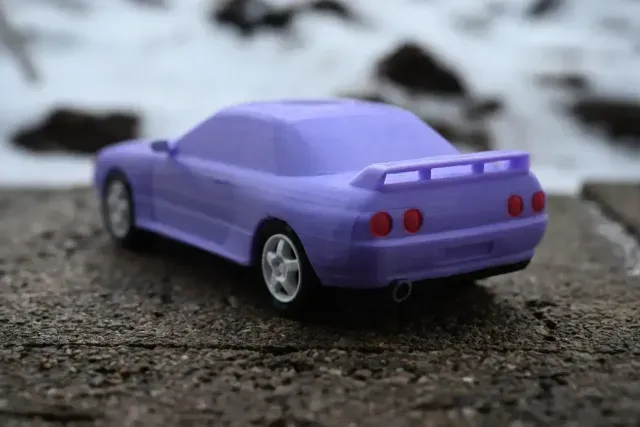

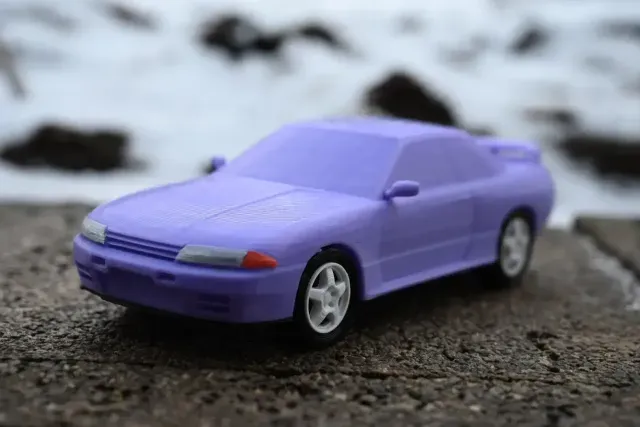

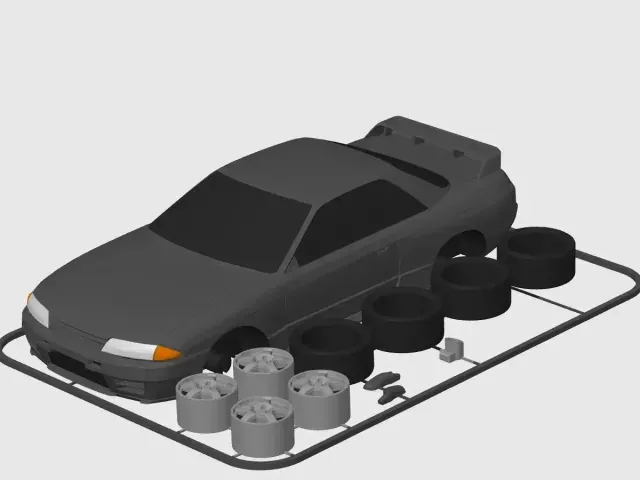

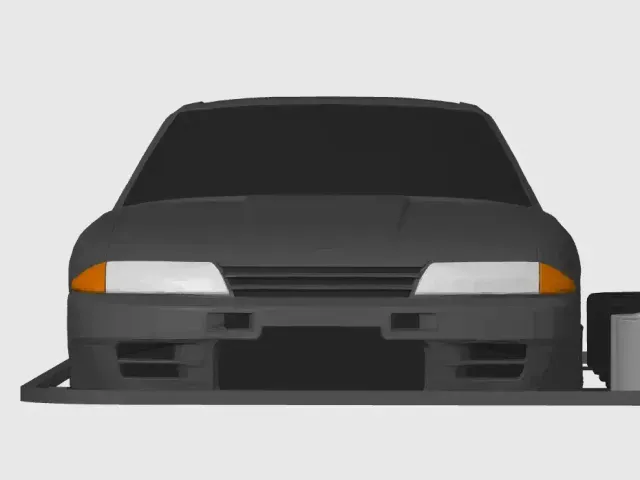

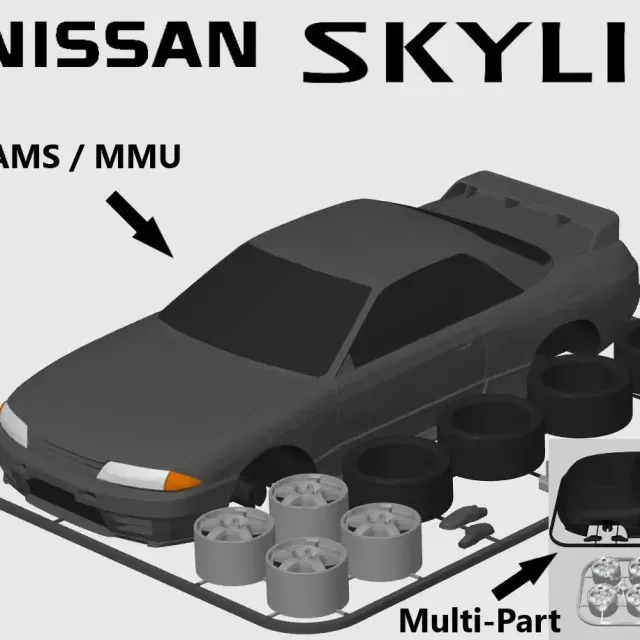

Summary This is a model of a Nissan Skyline R32 GT-R in a kit card style. Some characteristic details can be discovered. Equipped with separate exhaust ;-) After printing, the model can be assembled with the help of integrated connectors. The wheels can be turned, but the car will not roll.

Versions The complete set is available in a STL file for a one-color print. There is a 3MF-file with predefined colors intended for users of AMS or MMU. Otherwise, the chassis, tires and rims&exhaust must be printed separately.

Print Print with 0.15 layer height or lower to bring up the details. No supports are needed. Use 3 perimeters and 10% infill.

Post processing The small struts can be removed really quickly and cleanly using a side cutter. Please remove the pre-designed supports carefully under the rear wing / spoiler.

Assembly The kit is easy to assemble. All parts fit together very well. If a part should be loose, superglue can be used.

Dimensions at 100% scale (1:24) The fully assembled model has the following dimensions Height: 56 mm Depth: 187.5 mm Width: 81 mm (including side mirrors)

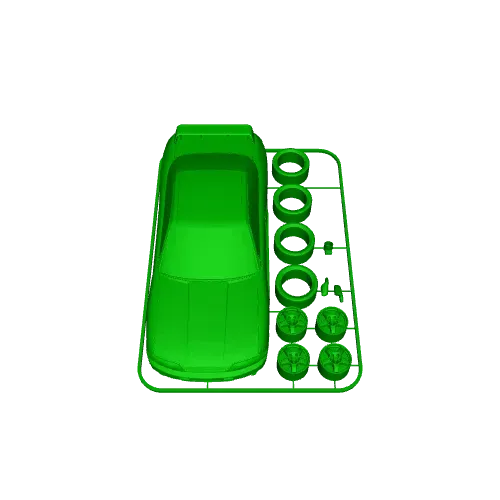

The complete kit card has the following dimensions when printed Height: 44.4 mm Depth: 193 mm Width: 137 mm Scaling will work in a low range due to the tolerances.

Other models I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

model disassembled into individual parts and arranged connectors added connected in kit card style and framed painted for AMS / MMU
