Coffee-pod Carousel Caddy

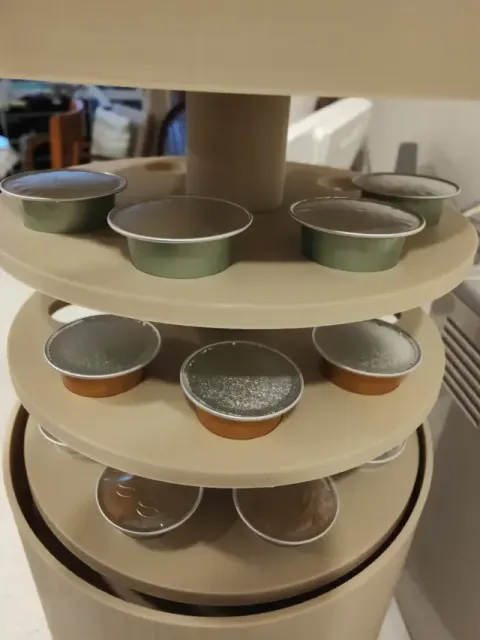

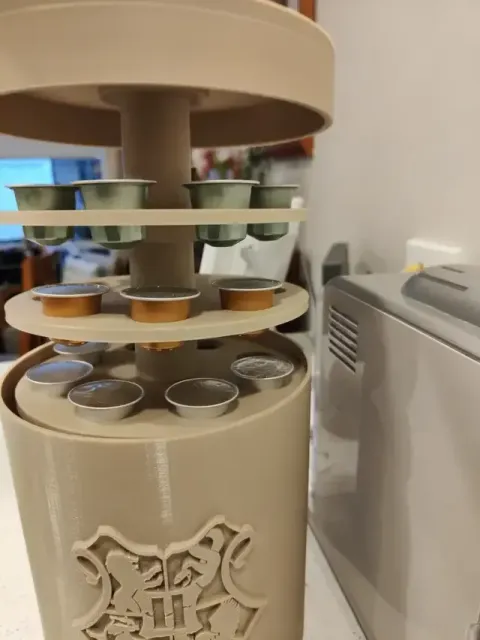

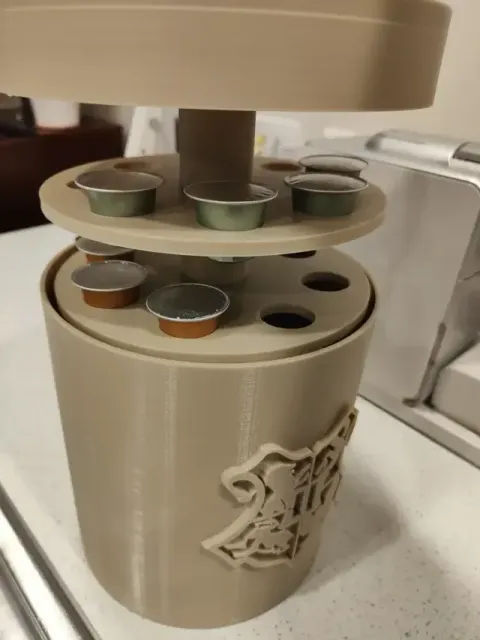

Design Concept Created in the style of the traditional British Tea Caddy; this caddy with a familiar crest emblazoned on its side, stands 24cm (9 inches) tall and conceals 3 rotating platters, each holding 8 Nespresso sized coffee pods.

The pods sit securely in the platters, but are raised up slightly to allow for easy loading and selection.

Options

1. If you would prefer to use this as a tea caddy or a cookie jar, additional files have been supplied. Simply print the Body, Top Nut (handle) and the following two files, then follow the instructions in the section below:

08. Coffee Caddy - Cookie Jar Adaption - Bolt.stl

08. Coffee Caddy - Cookie Jar Adaption - Lid.stl

2. There is also an alternative top nut (handle) option with knurling: 06b. Coffee Caddy - Top Nut (Knurled).stl

3. If you would like to print the crest separately from the body, swap out the #07A STL file for the two #07b STL files.

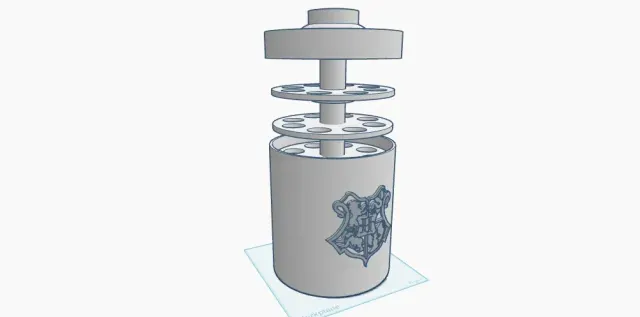

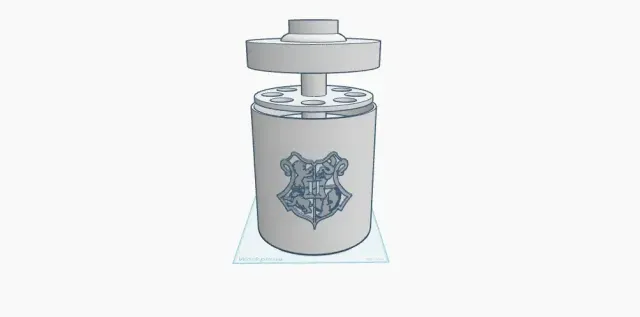

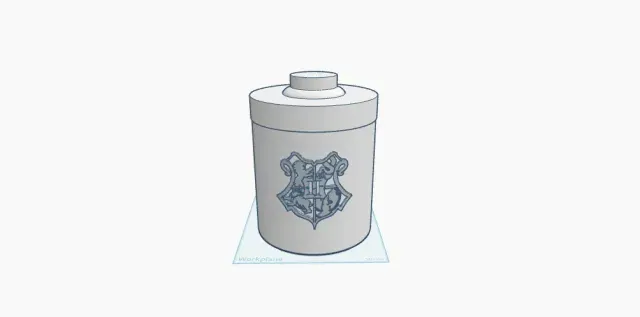

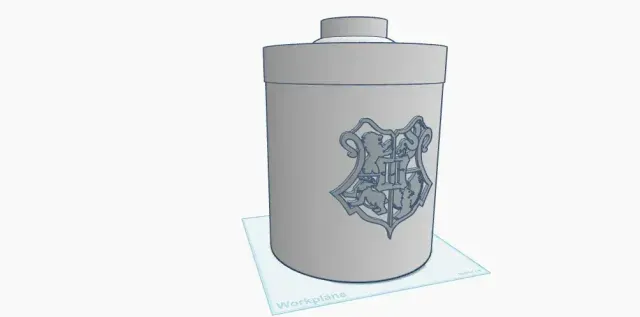

Design & Printing The caddy was designed completely in Tinkercad. All printing was done on a Creality Ender-3 V3 KE. All pieces were printed with the following settings: Media: PLA Bed: Textured PEI Temperatures: 215°C Nozzle, 60°C Bed Z Hop: Slope, Z hop retraction: 0.2 Layer Height: 0.2 First Layer Height: 0.2 Infill: 15% Supports: (Tree (Auto) - Organic) were used with the Body (STL #07) to support the logo.

Filament used in photos: eSun ePLA+ 1.75mm (colour: bone white)

Time & Material Usage:

Lifter - 5.5 hours 207g

Disc 1 - 2 hours 57g

Disc 2 - 2.6 hours 74g

Disc 3 - 2.6 hours 74g

Lid - 6.5 hours 242g

Top Nut (smooth) - 2 hours 80g

Body - 11.6 hours 461g

Total: 32.8 hours - 1,195g

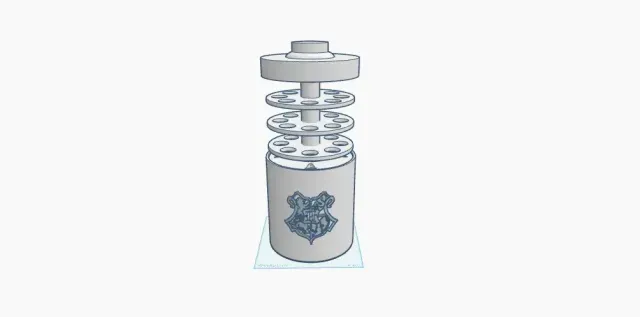

Assembly Instructions

1. Slide Disc 1 (with number facing down) onto the Lifter axle.

2. Follow by sliding Discs 2 and 3 (with numbers facing down) onto the Lifter axle.

3. Slide the Lid on to the Lifter axle.

4. Screw the Top Nut onto the top of the threaded protruding Lifter axle.

5. Lift the completed assembly and slide into the Body.

6. Fill caddy with Nespresso Coffee Pods.

If you are creating the Tea Caddy / Cookie Jar option:

1. Print only the Body, the Top Nut and both STL#08 files.

2. Push the Cookie Jar Adaption Bolt (STL #08) through the lid from underneath, so the thread pokes out the top.

3. Screw the Top Nut onto the Adaption Bolt thread

4. Place the completed lid assembly onto the Body.
