Interchangeable spool holder for K1 Max - K2 Plus D3P riser

MODEL

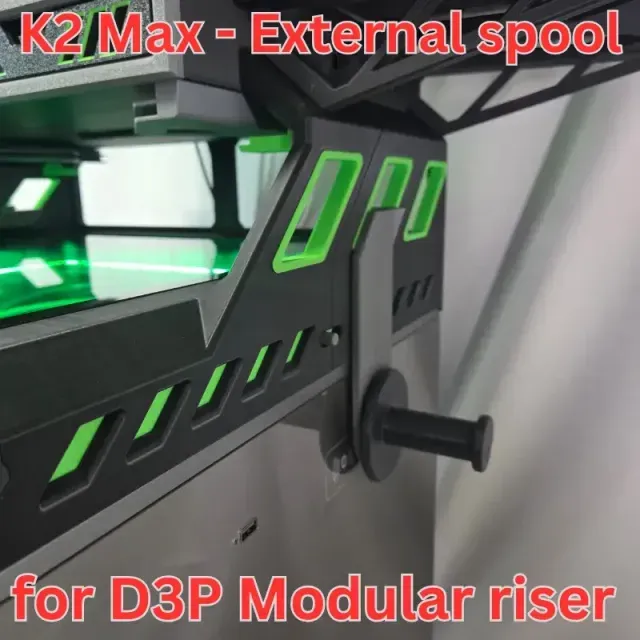

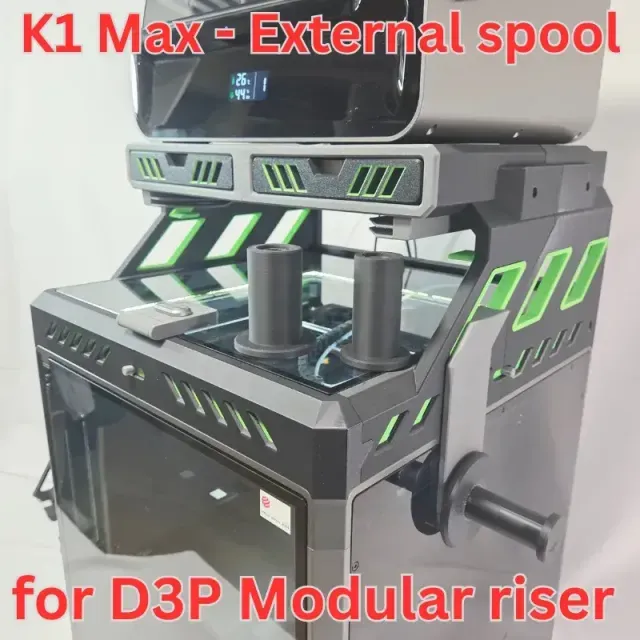

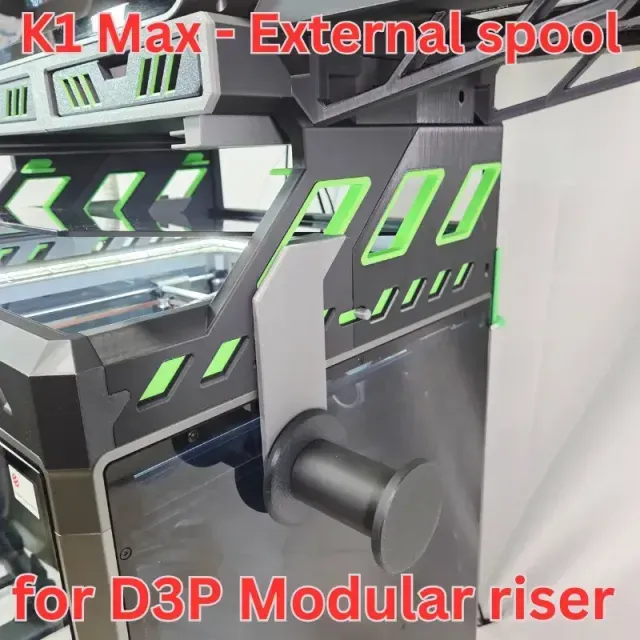

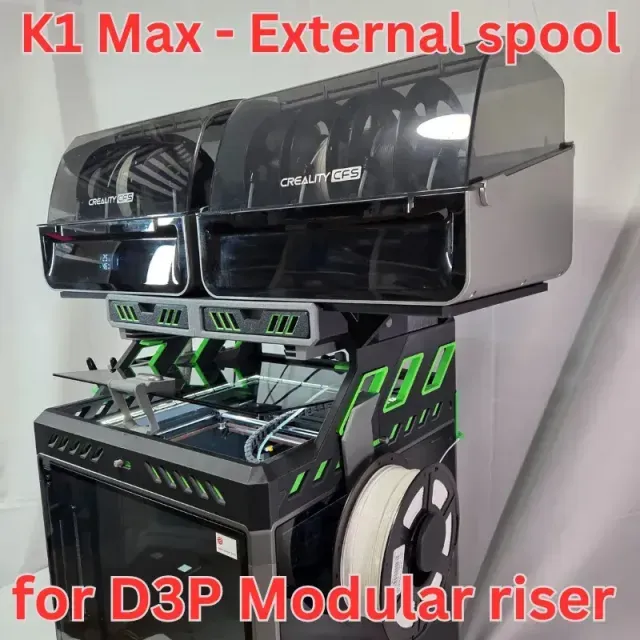

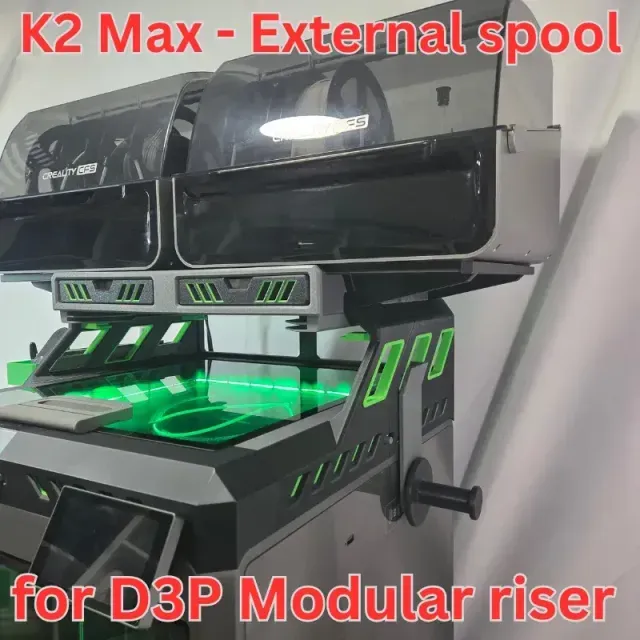

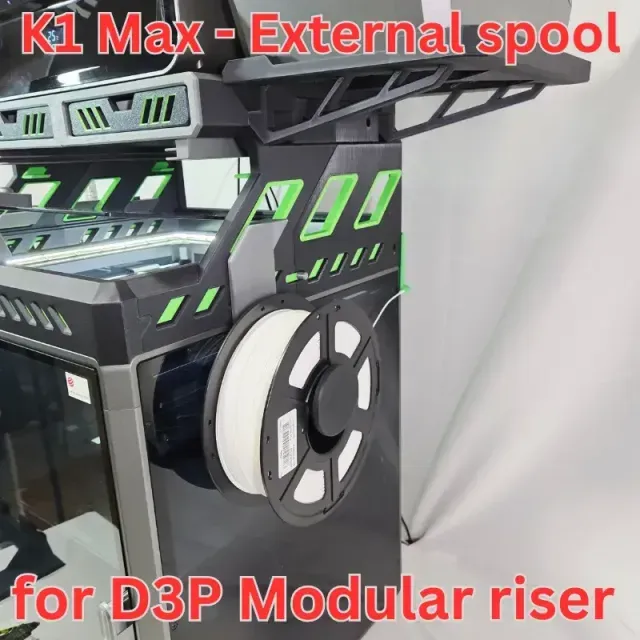

This model is for an interchangeable external spool holder for use with the K1 Max and K2 Plus D3P riser:

Click here to find out more about the D3P riser system for the K1 Max:

K1 Max D3P riser

Click here to find out more about the D3P riser system for the K 2 Plus :

K2 D3P riser

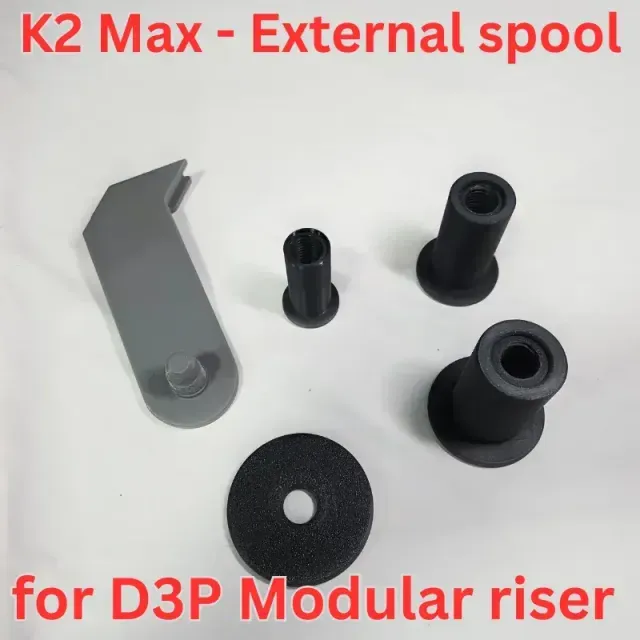

The spool holder has a threated adapter that can hold an adapter for any size spool.

Three sizes of spool spindles are included:

Large: 63.5 mm x 70 mm (most plastic spools)

Medi)um: 50 mm x 70 mm (most cardboard spools)

Small : 36 mm x 57 mm (small diameter spools)

An optional threaded washer.

Two spool holders are included, one for use on the left side and one for use on the right side. On account of the thread, the spool holder will not work if mirrored.

3D PRINTING

PRINT SETTINGS

IMPORTANT: After verification with Creality it appears that there are some issues that need to be resolved with the mobile printing app. At present it seems these may affect slicing and printing of the model. After verification, it was suggested by the Creality Cloud team to use the desktop slicing and printing software. Thank you for your understanding.

IMPORTANT I upload a print setting files for all my models. The print settings has the parts positioned for correct printing.

EACH BUILD PLATE HAS THE TYPE OF SUPPORT REQUIRED INDICATED ON THE BUILD PLATE DESCRIPTION (TREE AUTO, TREE MANUAL OR NO SUPPORT).

I strongly recommended you use my print setting file. If not, I will not be able to assist you if there is an issue when printing. From experience, many of the issues with printing my models are on account of users not using my print settings.

3D PRINT SETTINGS

I use the following settings and materials to print this model:

Infill % : 15% (no need for more)

Nozzle diameter: 0.4 mm

Layer height: 0.2 mm standard

Material: PLA is recommended as its more rigid. PETG or other filaments may cause the part to deform or may not work with the built-in tolerances. PLA-CF and PETG CF and other materials often print too wide and cause parts not to fit.
