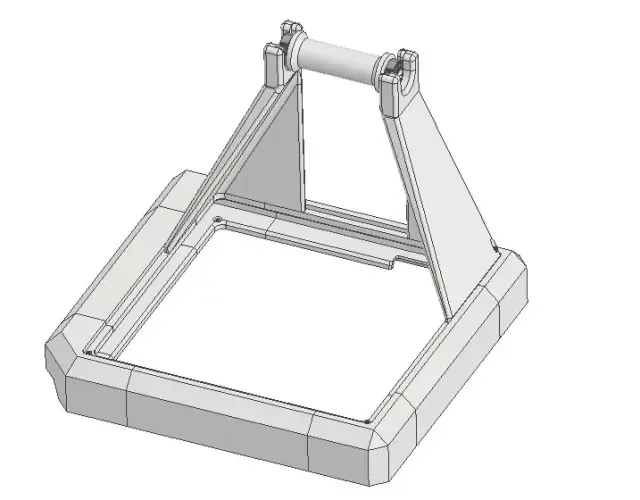

K1C lid raiser + spool top holder

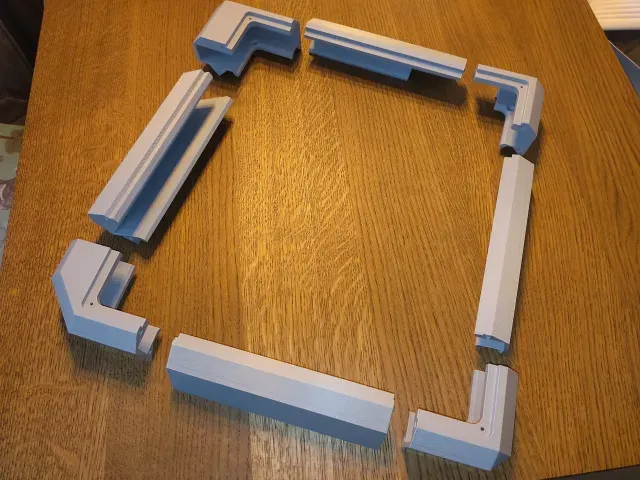

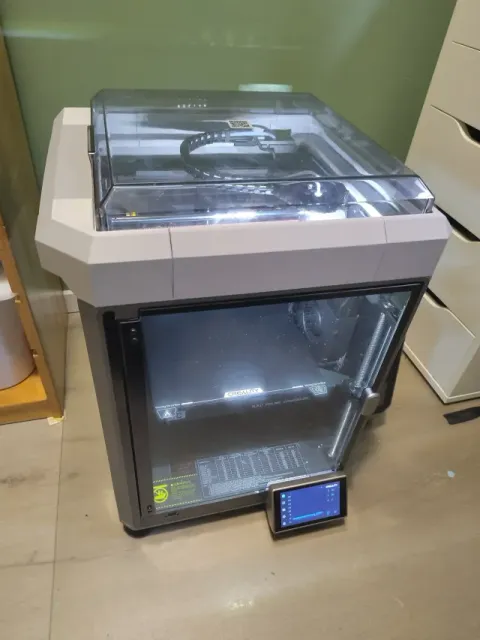

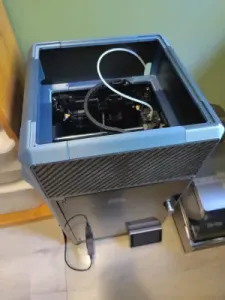

I made a raiser for the K1C to give the cable chain more space.

Now it no longer clashes on the side or the back.

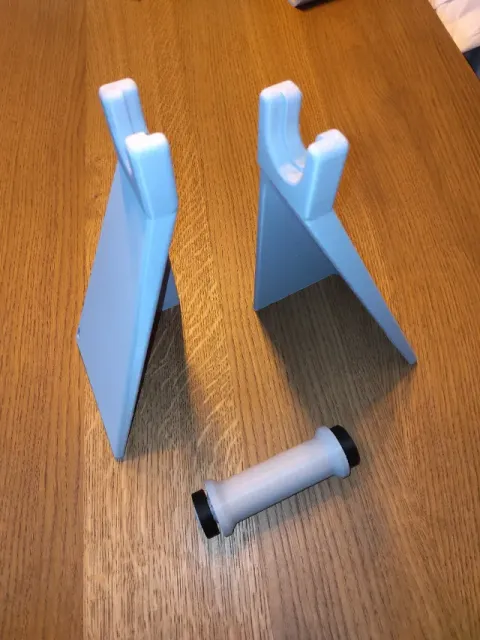

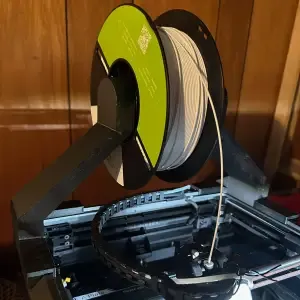

Because I had some issues with printing TPU, I also made a top spool holder for it.

It could also fit on the K1C itself.

It is recommended to print in a heat resistant filament such as PETG or ABS.

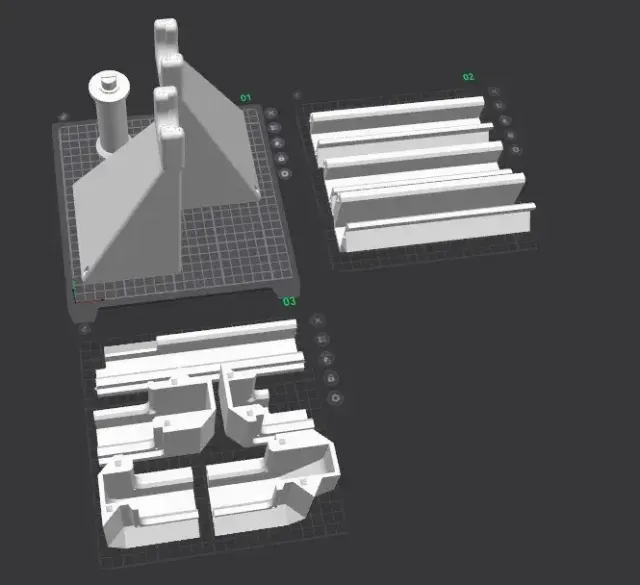

The raiser can be printed without support; only the shaft needs some support.

It is best to mount the raiser on the top of the printer using 4x DIN7991 M3x10 screws; if you don't, I at least recommend gluing the parts together.

The spool holder can be mounted onto some M3 DIN912 screws or tightly secured with 2x DIN912 M3x16 screws.

The 4 top holes of the raiser need to be tapped with M3 for this.

The shaft is mounted with 2 DIN625 6002 bearings (these can just be printed ones).

Total list of extra parts needed:

2x bearing DIN625 - 6002 - 15x32x9

2x DIN912 M3x10

2x DIN912 M3x16

4x DIN7991 M3x10
