Trunk Lever Hyundai Accent 2008

Сведения о модели

Площадка
Creality Cloud
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MF
  • 12 Лайки
  • 56 Загрузки
  • 0 Напечатали
  • 15 В подборках
  • 0 Бусты
  • 0 Комментарии
  • 332 Просмотры

Автор:AlbertVrV99

Опубликована

Описание

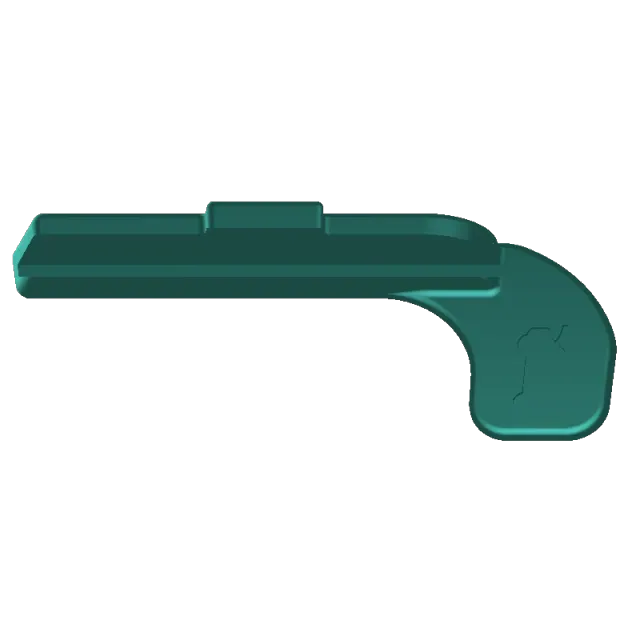

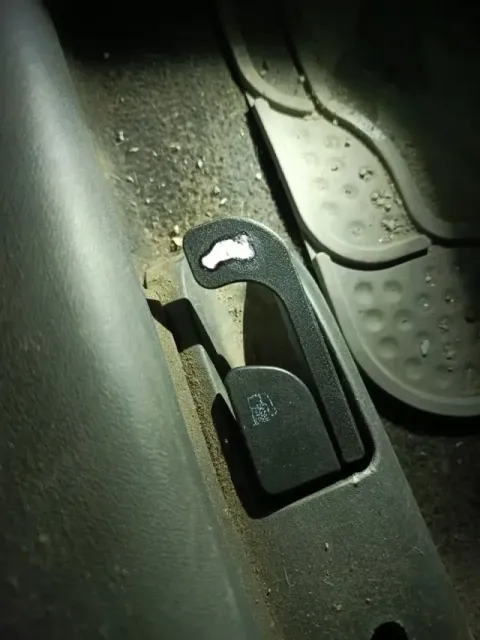

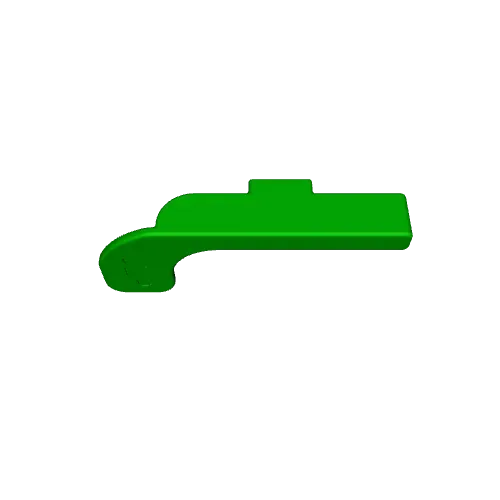

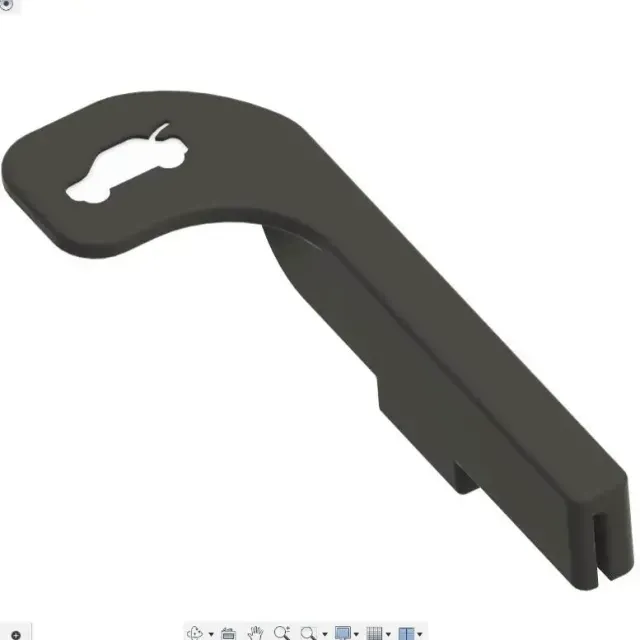

This is a design that replaces the lever that opens the trunk of my Hyundai Accent 2008. I searched online and only found paid models, so I decided to design my own and publish it for free, as a thank you for all the free designs I've used and so it might be useful to someone else. I designed it in Fusion 360 and the file is there in case you want to modify it for another car (and if I have to clean the car).

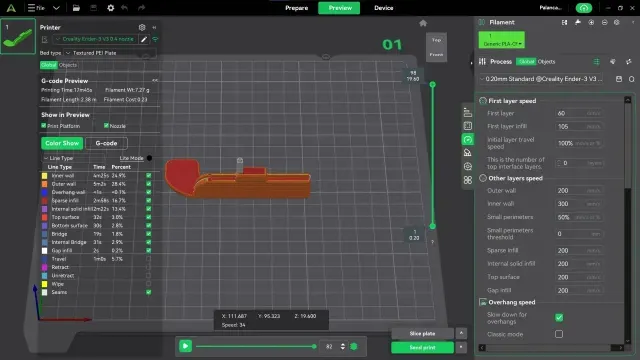

As for the print, it was done with a Creality Ender 3 V3 using PLA-CF. I used the default PLA-CF profile from the Creality Print 6.3 slicer, and in summary it was: 0.4mm nozzle, with a nozzle temperature of 220, 65 on the bed, 200 mm/s for the outer wall, 300 for infill, and 10% rectangular infill.
