CAMLOCK System Suction Nozzles for Ridgid 1 7/8"

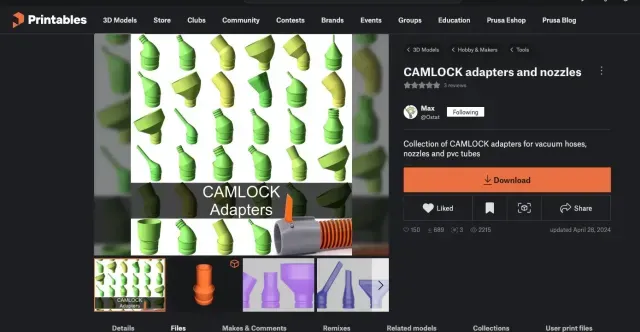

Max @ Ostat https://www.**********.com/model/540409-camlock-adapters-and-nozzles

--> he used Peter H design to created 400 (YES, four hundred) adapters and nozzles !!!!

--> CrealityCloud does not allow more than 100 uploads... so I uploaded all his 45" suction nozzles for his 20mm (0.79"), 30mm (1.18"), 40mm (1.57"), 50mm (1.97"), 60mm (2.36"), 70mm (2.76") and 80mm (3.15") collection!!!

--> They go with the CamLock System created by Peter H himself (https://www.**********.com/model/461256-shopvac-50mm-camlock-connectors-with-magnetic-catc)

=== Here are his descriptions for the sizes.... I uploaded here his 45 degree Suction Nozzles only (will upload his other next) ===

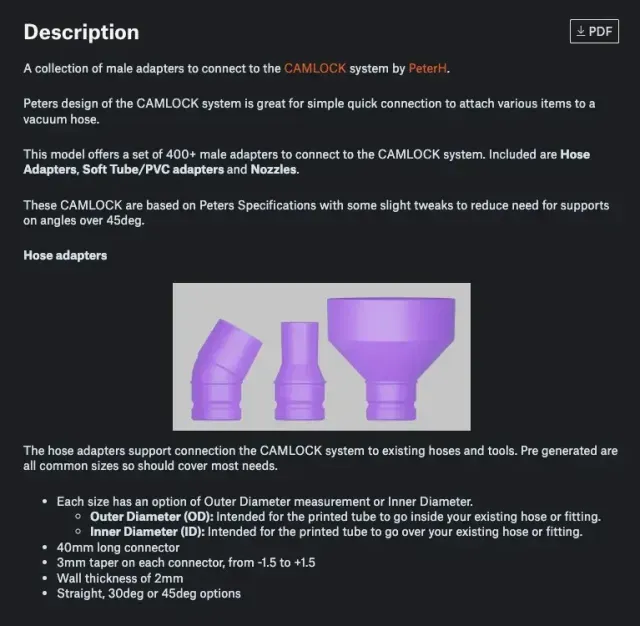

A collection of male adapters to connect to the CAMLOCK system by PeterH.

Peters design of the CAMLOCK system is great for simple quick connection to attach various items to a vacuum hose.

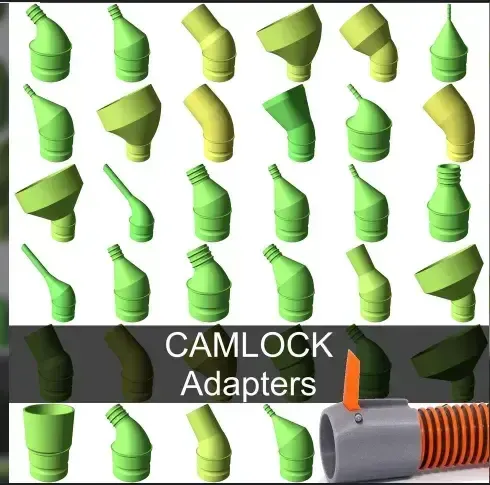

This model offers a set of 400+ male adapters to connect to the CAMLOCK system. Included are Hose Adapters, Soft Tube/PVC adapters and Nozzles.

These CAMLOCK are based on Peters Specifications with some slight tweaks to reduce need for supports on angles over 45deg.

-- Hose adapters:

The hose adapters support connection the CAMLOCK system to existing hoses and tools. Pre generated are all common sizes so should cover most needs.

Each size has an option of Outer Diameter measurement or Inner Diameter.

Outer Diameter (OD): Intended for the printed tube to go inside your existing hose or fitting.

Inner Diameter (ID): Intended for the printed tube to go over your existing hose or fitting.

40mm long connector

3mm taper on each connector, from -1.5 to +1.5

Wall thickness of 2mm

Straight, 30deg or 45deg options

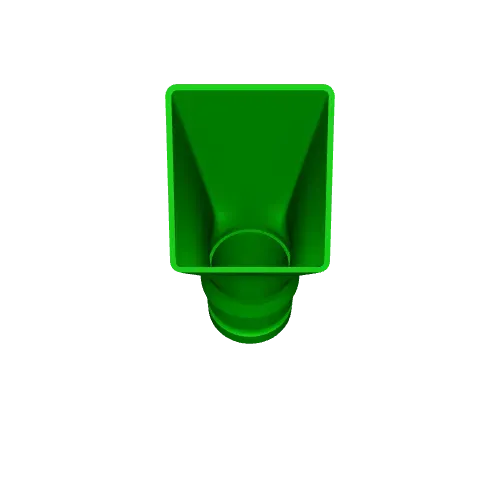

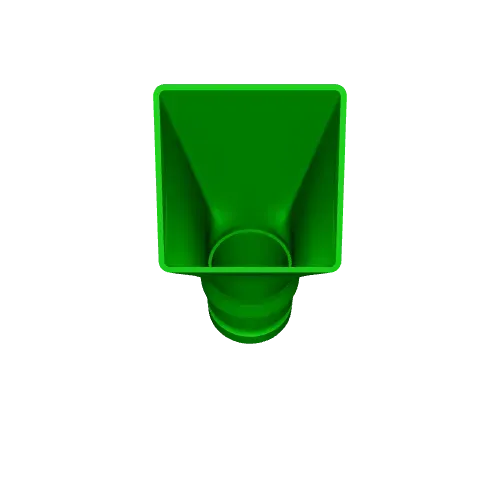

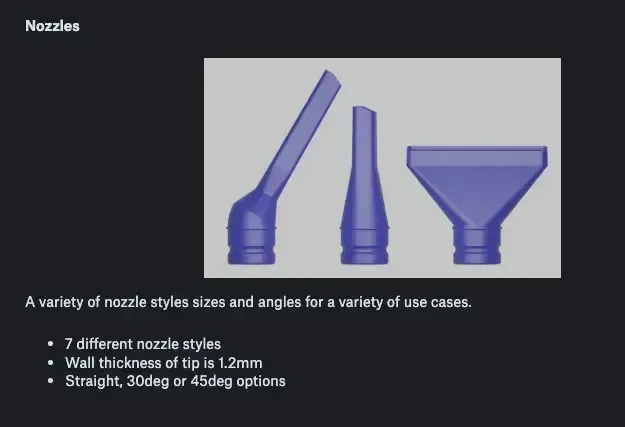

-- Nozzles:

A variety of nozzle styles sizes and angles for a variety of use cases.

7 different nozzle styles

Wall thickness of tip is 1.2mm

Straight, 30deg or 45deg options

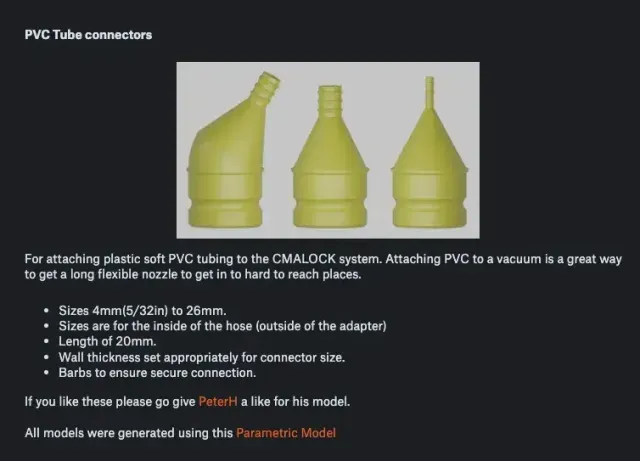

-- PVC Tube connectors:

For attaching plastic soft PVC tubing to the CMALOCK system. Attaching PVC to a vacuum is a great way to get a long flexible nozzle to get in to hard to reach places.

Sizes 4mm(5/32in) to 26mm.

Sizes are for the inside of the hose (outside of the adapter)

Length of 20mm.

Wall thickness set appropriately for connector size.

Barbs to ensure secure connection.

If you like these please go give PeterH a like for his model.

All models were generated using this Parametric Model
