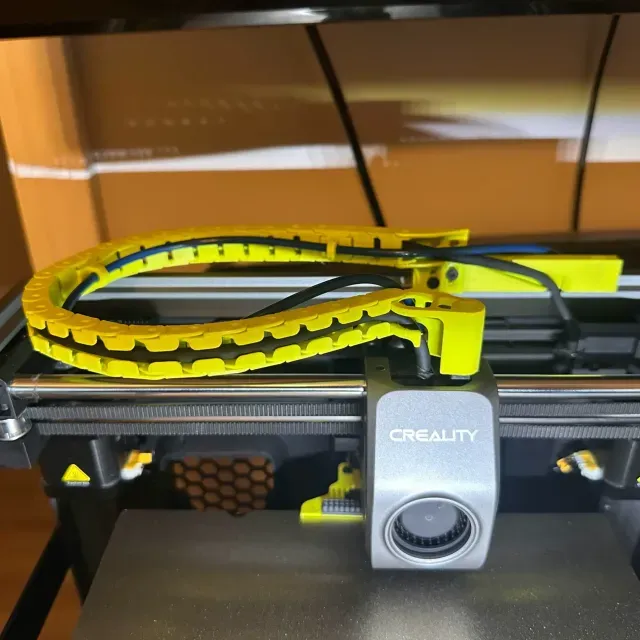

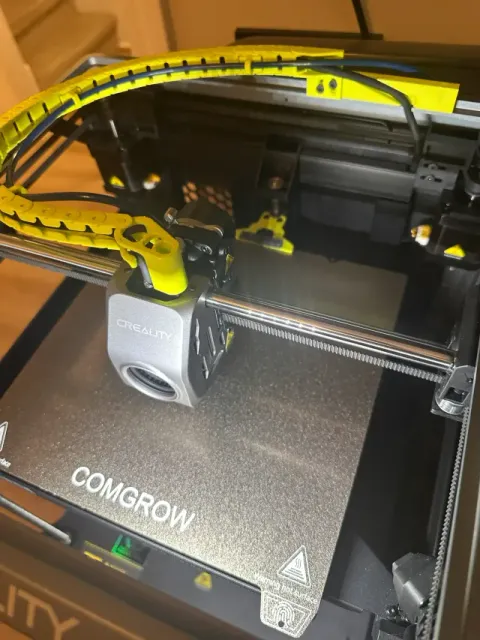

K1SE Cable Chain All Parts with PTFE tube holder

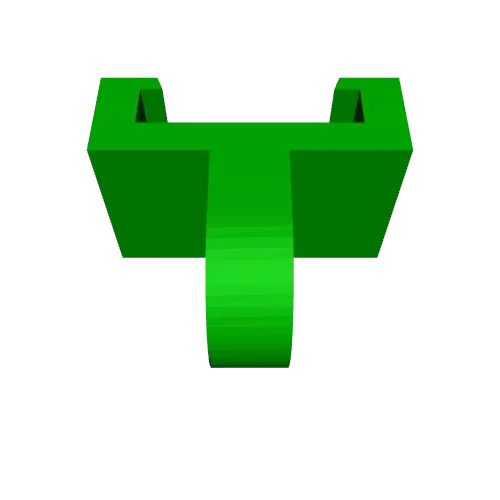

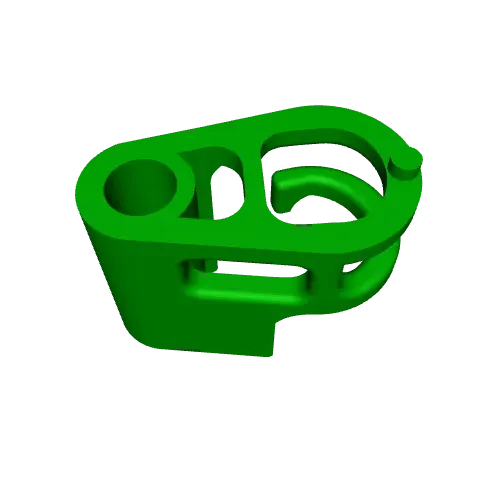

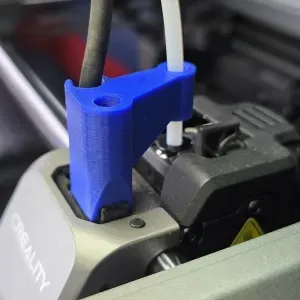

Design is a combination originally from another site. Credit to user spvd_3539588 for sharing all these. I have just combined them into one print and added my own mounts to hold the filament tube to the chain.

Links

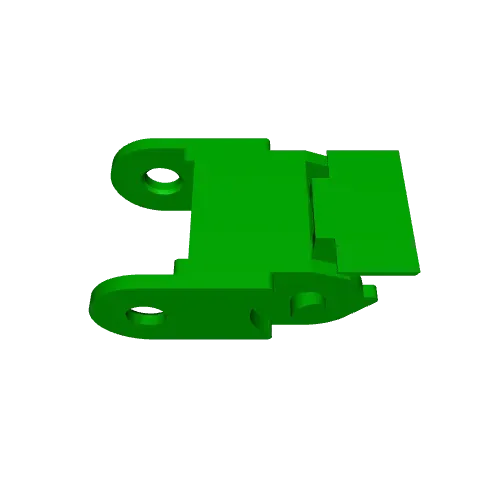

My chain took 28 links.

Design Concept

The K1SE Cable Chain Riser is designed to securely hold and guide the cables of a 3D printer, ensuring they stay organized and protected during the movement of the printer's components. Its curved structure follows the natural path of cable movement, reducing stress and wear on the cables.

Use

This model is used to elevate and support the cable chains in 3D printers, specifically for enhancing cable management, increasing the lifespan of the wires, and maintaining a neat working environment. It is suitable for DIY enthusiasts and professionals looking for efficient printer setups.

Printing Recommendations

It is recommended to print this model using PLA+, PETG, or a similarly durable material to ensure longevity and adequate support. A layer height of 0.2mm and infill of 20% should suffice. Ensure good adhesion to avoid warping.

Assembly Instructions

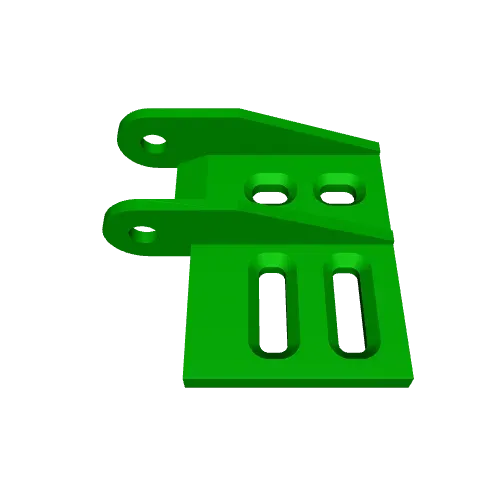

After printing, mount the cable chain riser on your printer using the existing screws.
