Wuben G5 Holster for Belt – Friction Lock Retention

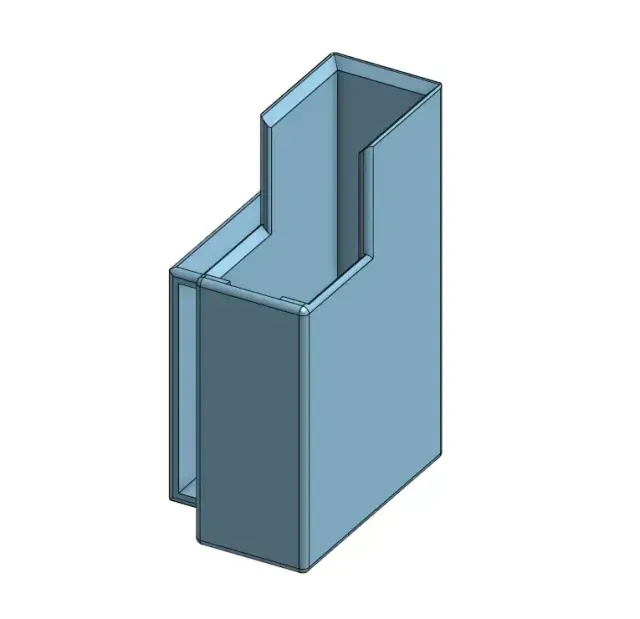

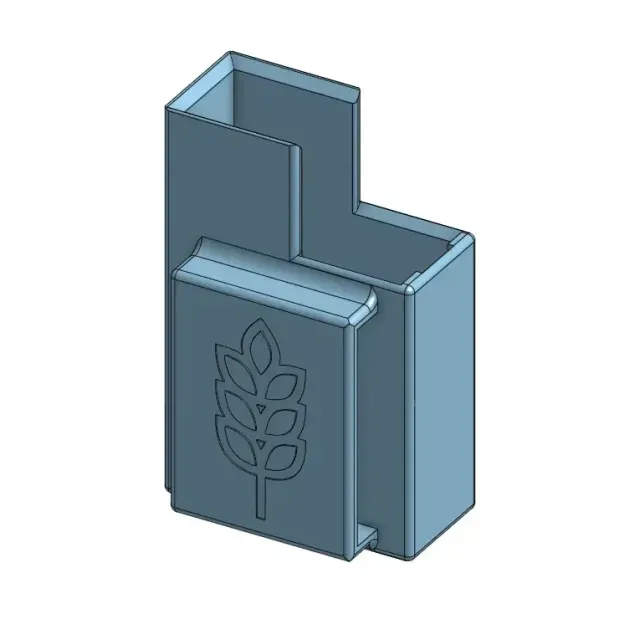

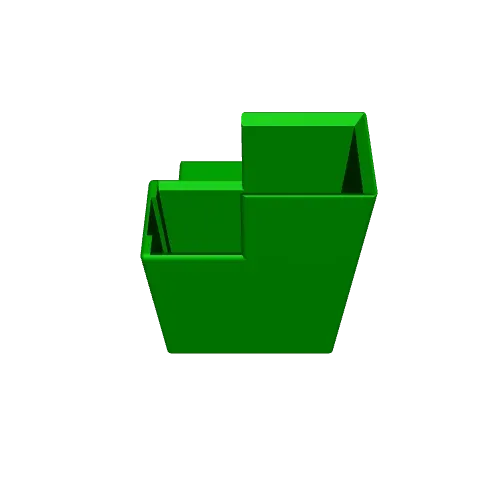

Custom-fit belt holster designed for the Wuben G5 flashlight. Features an interference shim for a snug friction-lock fit, keeping the light secure yet easy to remove. The mode-toggle slot keeps flashlight locked and cut out gives easy thumb access while holstered.

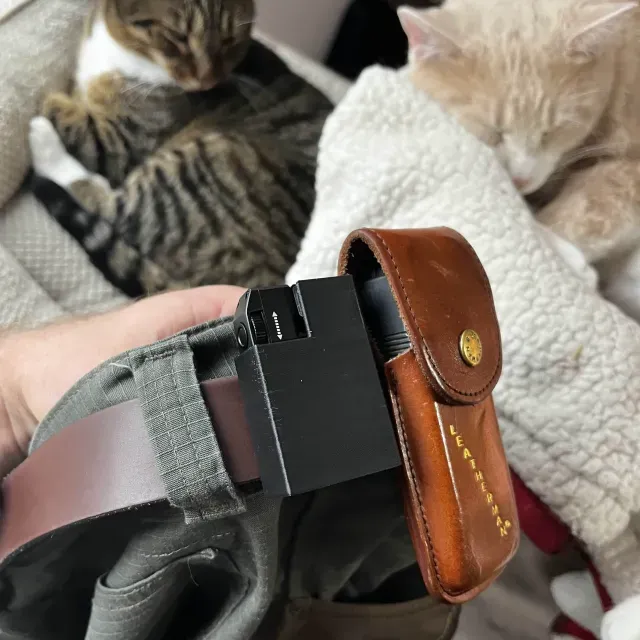

Optimized for a 1.25-inch (32 mm) belt with a reinforced clip channel and open bottom for drainage and debris clearance. Perfect for everyday carry, field work, or workshop use — compact, tough, and print-ready without supports.

Filament: PETG (preferred) or PLA+

Layer Height: 0.2 mm

Wall Count: 3 (≈ 1.2 mm shell)

Top/Bottom Layers: 6

Infill: 25–35 % (Gyroid or Grid)

Supports: Normal – Everywhere

Brim: Optional (2 mm for added adhesion)

Print Orientation: Vertical (open top facing upward)

Test-fit your flashlight before sanding; the 0.125cm retention shim provides a secure hold.
