Cincinnati Bengals

Design Concept

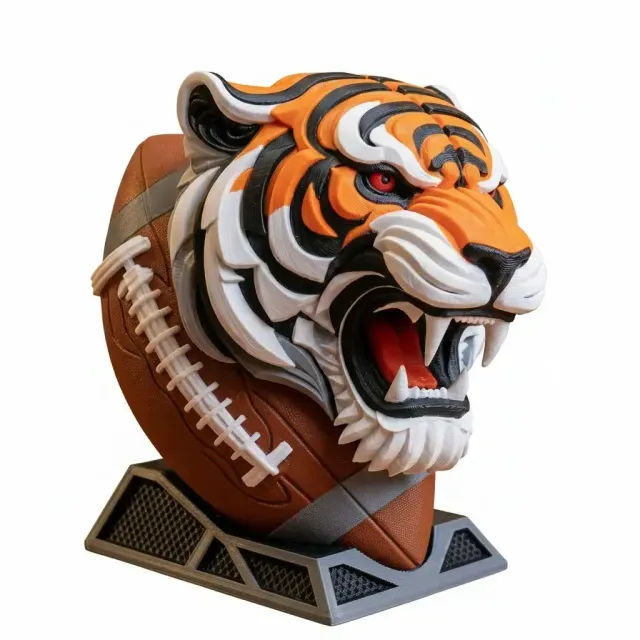

​The Aggressive Tiger: The head features exaggerated, "layered" fur textures and sharp, stylized facial features. This creates a modern, almost comic-book aesthetic that emphasizes power.

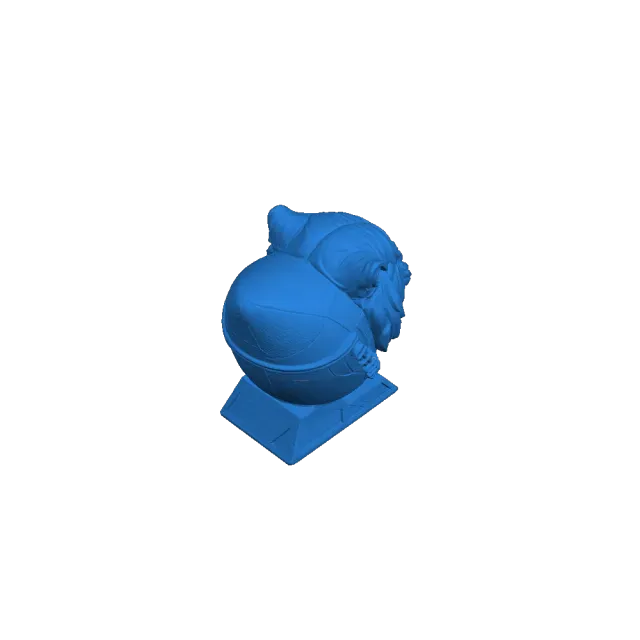

​Integrated Base: The tiger head is merged into the side of a football, which acts as the body of the bust. The "laces" and "seams" are embossed to provide tactile detail.

​The Stand: A geometric, industrial-style pedestal provides a stable base while contrasting with the organic curves of the tiger.

​Color Strategy: The design is optimized for "multi-part" printing (where pieces snap together) or for high-contrast painting, using a palette of orange, white, and charcoal black to make the features pop.

​Printing Settings (Creality Halot R6)

​The Halot R6 is a 2K monochrome resin printer. To capture the fine fur details and smooth curves of the football, use these optimized settings:

Parameter Recommended Value

Resin Type Standard 405nm Rigid Resin

Layer Height 0.05 mm (standard) or 0.03 mm (high detail)

Exposure Time 2.0 – 2.5 seconds

Bottom Exposure 25 – 35 seconds

Bottom Layers 5 – 6 layers

Light-off Delay 4.0 seconds

Lifting Distance 6.0 mm

Lifting Speed 60

Pro Tips for this Model:

​Orientation: Tilt the model backward at a 30°–45° angle. This reduces the cross-sectional area per layer, preventing the "suction cup" effect that could pull the print off the plate.

​Hollowing: To save resin, hollow the model with a 2.5 mm wall thickness. Critical: Add at least two drainage holes near the base to let uncured resin escape.

​Support Placement: Place supports primarily on the bottom and back of the football/base. Avoid supports on the tiger's face to prevent "pockmarks" on the most detailed areas.
