25 pc Brad Point SAE Drill Bit Set Case

Design Concept

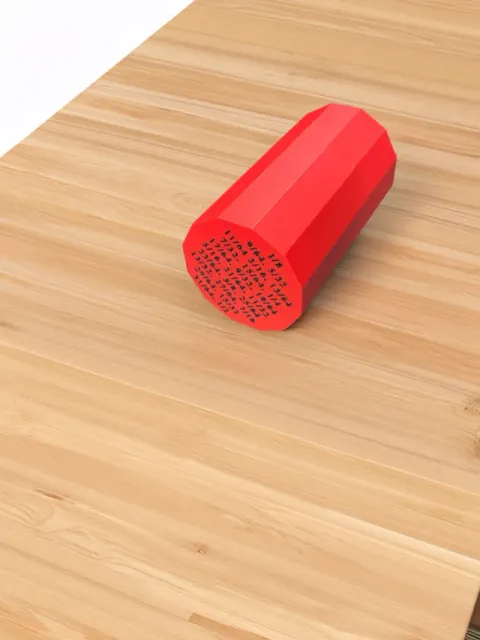

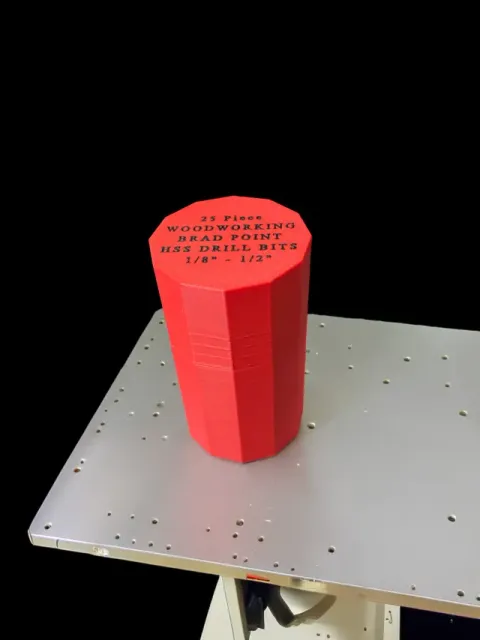

The design of this drill bit set case is inspired by functionality and convenience, providing a stylish way to store a 25-piece drill bit set. The case is hexagonal, which provides stability and a unique visual appeal. TinkerCad designed to fit in a Milwaukee 3-drawer tool cabinet. The 3mf file has lettering included, bit sizes are on the bottom and the set nomenclature is on the lid. The stalls are blank.

Purpose

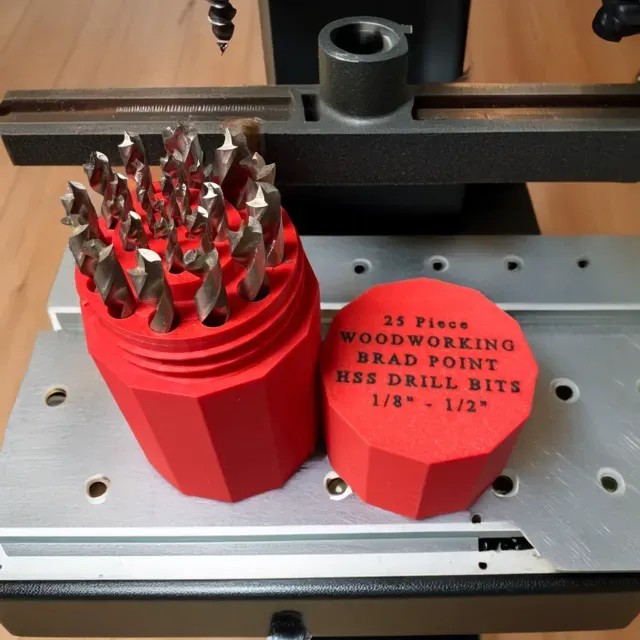

This case is meant to organize and securely store brad point drill bits for woodworking projects. It holds the bits conveniently and makes them easily accessible when needed during work.

Printing Recommendations

Print the case with strong ABS or PLA material to ensure durability and impact resistance, especially if it will be used in a workshop environment. Consider using a resolution of 0.2 mm for optimal detail and clarity of labels.

Assembly Instructions

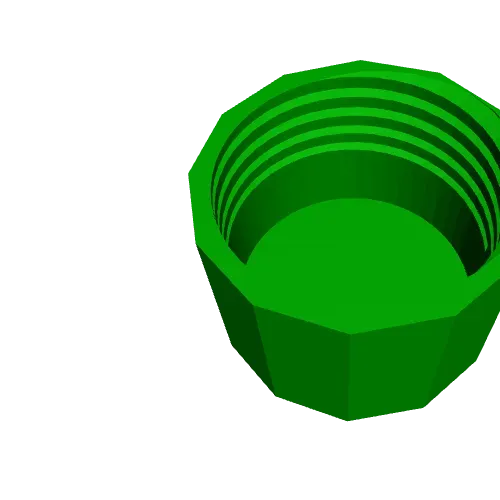

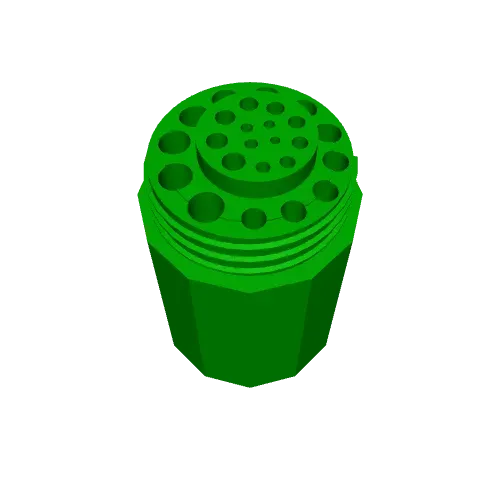

The case prints in two parts (bottom and lid) with a simple twist-lock mechanism. Ensure that the fitting edges are clean and free of debris before assembling them together.
