D1 Mini + LD2410C mmWave Enclosure

DESIGN This enclosure is designed specifically for the ESP8266 D1 Mini and the Hi-Link LD2410C 24GHz Human Presence Sensor. Its sleek design allows for easy housing of both components, ensuring reliable functionality and simple integration. Ideal for implementing smart home applications where human presence detection is required. The enclosure protects the sensitive electronics from dust and damage.

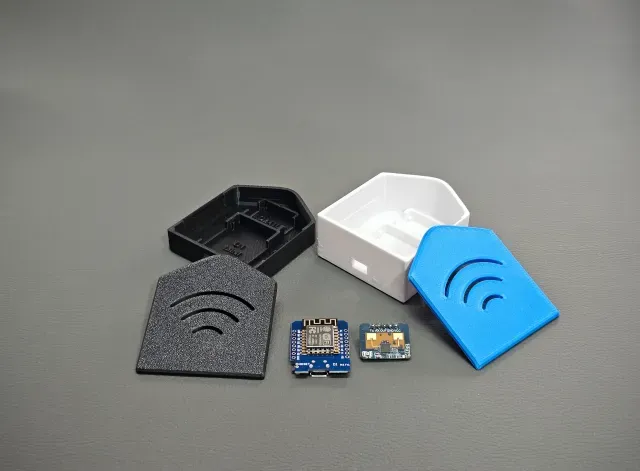

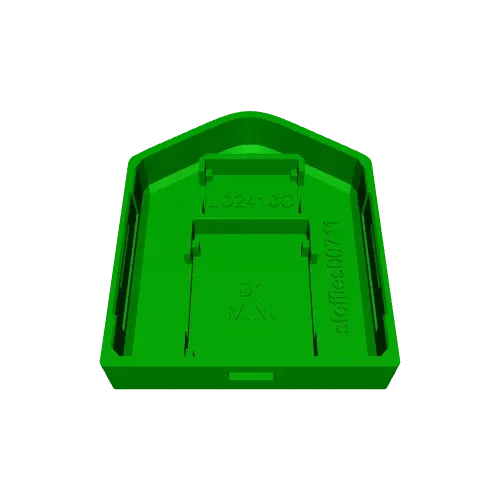

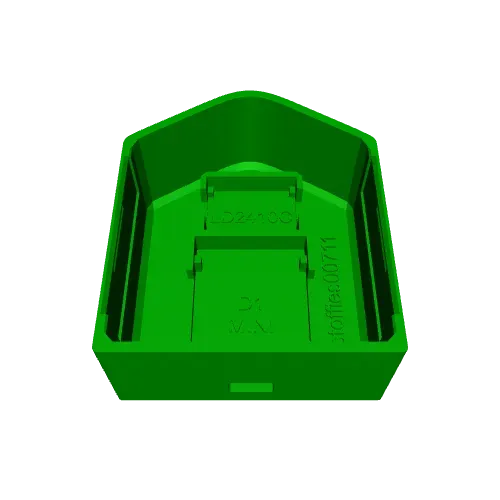

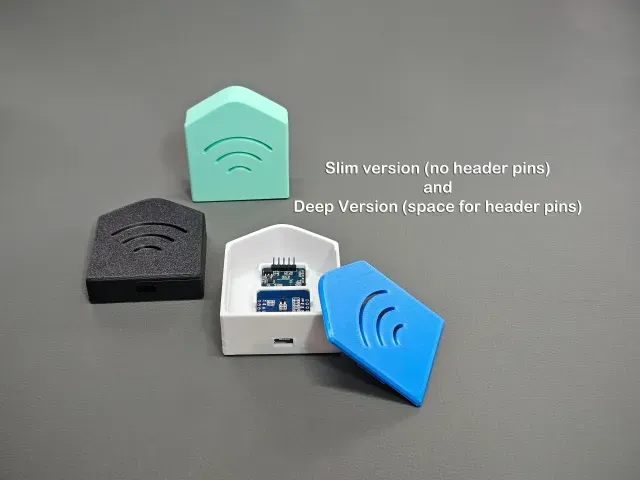

PRINT 0.2mm Layer Height 2 Walls 10% Rectilinear Infill No Supports There are two versions of this case - Slim and Deep. Print the deep version if you are planning to use pin headers on your PCBs. If you prefer to solder directly onto the boards, the slim base will work perfectly. It also looks very cool printed on a textured plate (see images)

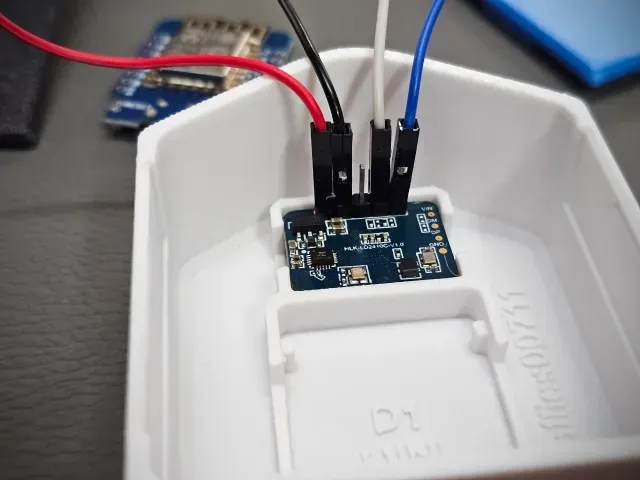

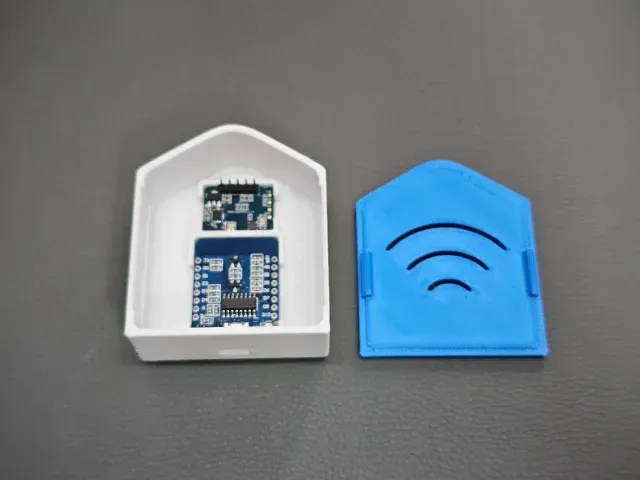

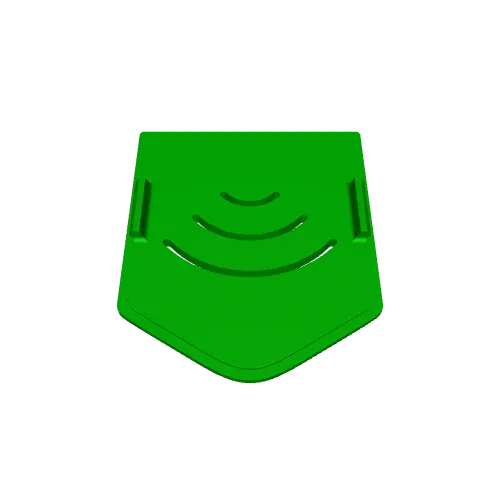

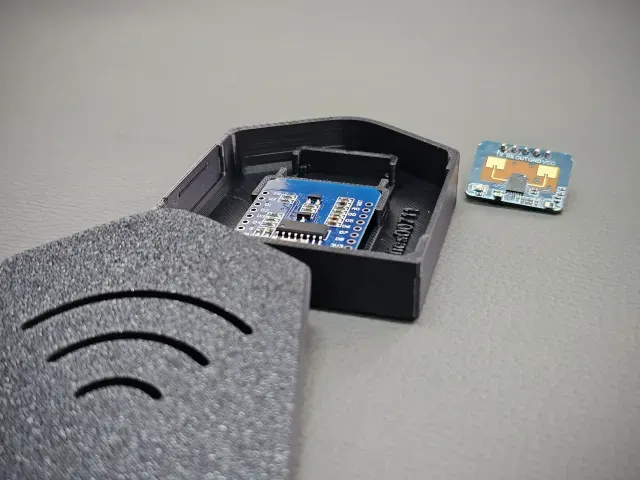

USE Simply place the D1 Mini and LD2410C sensor into their respective slots within the enclosure. Secure the top cover using the provided clips, ensuring that all components are snugly fit to prevent any movement. (Note: The sensor I used in the sample shots above had the pins on the wrong side for this case.)

If you find this enclosure useful in any way - Please leave a LIKE - Happy printing!
