MEGA Project - Cat Exercise Wheel

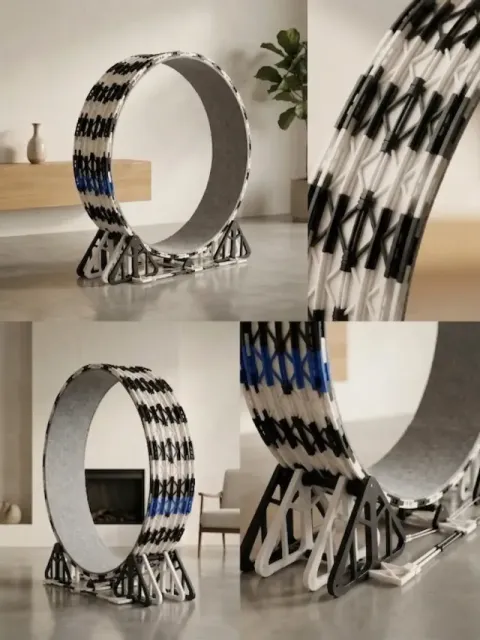

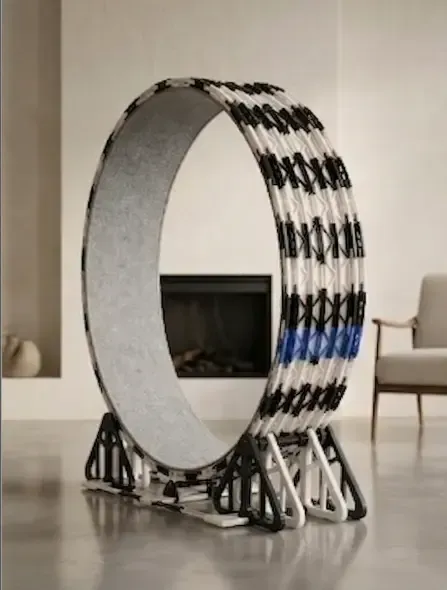

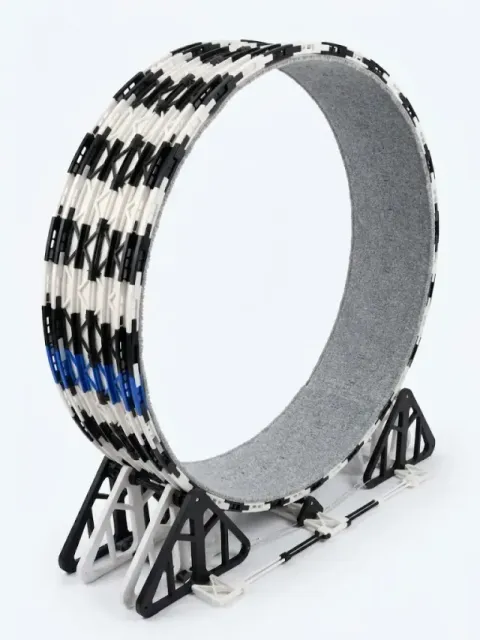

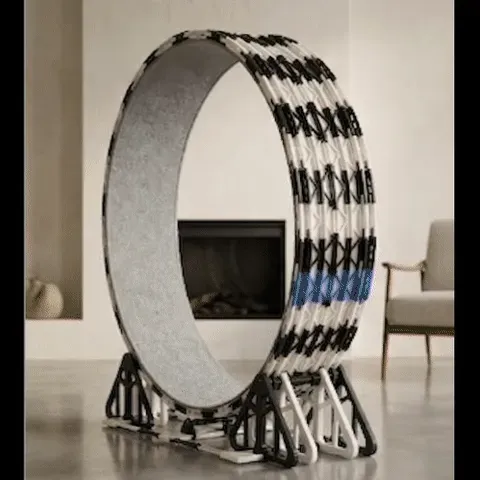

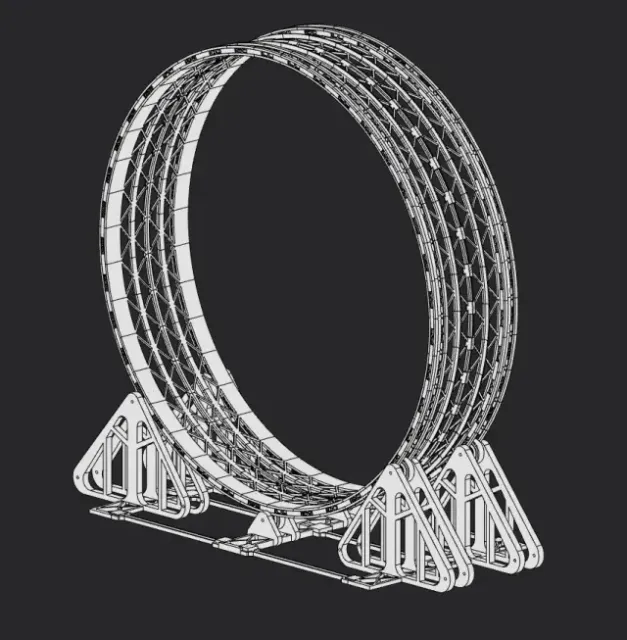

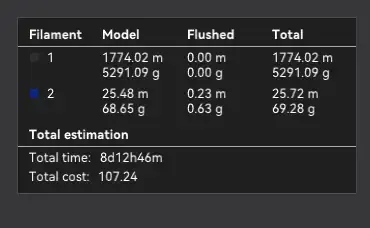

The MEGA Project that takes nearly 9 days to print and 6KG of filament, however hours of fun and exercise for your feline buddy. It represents the pinnacle of functional 3D design, offering a sophisticated, 1-meter tall exercise solution for high-energy indoor cats. This isn't just a toy; it is a meticulously engineered lattice structure designed to provide a stable, safe, and visually striking fitness platform. By utilizing a modular interlocking rim and integrated, high-precision printed bearings, this wheel brings professional-grade pet equipment to the home. The design emphasizes a "form-follows-function" philosophy, where the stylish geometric patterns provide the necessary rigidity to handle the centrifugal forces of a sprinting cat while maintaining a surprisingly lightweight profile.

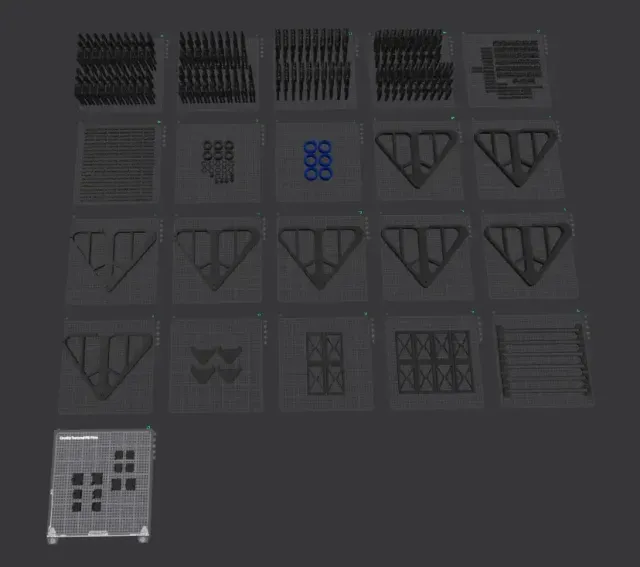

To successfully execute a project of this scale, your machine must be dialed in for precision and structural integrity. While the design is optimized to be support-free on well-calibrated machines, the sheer size of the segments means you must be vigilant about bed adhesion. If your machine is prone to lifting, the use of brims is highly recommended to ensure the arc segments remain perfectly flat during the printing.

For a build that can withstand constant use, material choice is non-negotiable. PETG or ABS are the primary candidates for the structural rim due to their superior impact resistance and thermal stability. For the wheels, TPU can be integrated to provide necessary grip and noise reduction.

To ensure the wheel doesn't delaminate under the weight of an active pet, use high wall counts (3+) to create a thick structural "skin." For internal support, a 15%PLUS Cubic Infill is recommended; its three-dimensional nature provides excellent strength-to-weight ratios and prevents the segments from twisting under load.

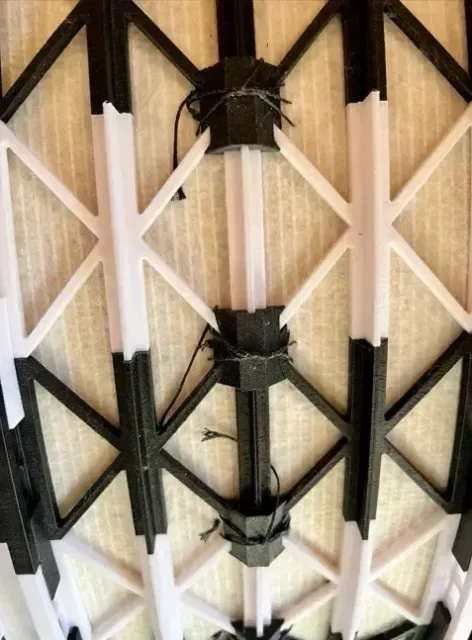

Assembly is a multi-stage process where precision is paramount. Once the segments are printed, they must be aligned on a flat surface to verify a perfect circular geometry before any permanent bonding occurs. Because this wheel operates as a high-speed mechanical assembly, you cannot rely on friction fits or temporary clips.

⚠️ Safety Disclaimer & Waiver of Liability ⚠️ IMPORTANT: READ BEFORE COMMENCING BUILD

By proceeding with the construction of the MEGA Project Cat Wheel, you acknowledge and agree to the following:

Builder Responsibility & Structural Integrity: This is a DIY experimental project. The safety of the final product is 100% dependent on your execution. Factors including, but not limited to: layer adhesion, moisture content of filament, and assembly precision dictate the tool's safety. You assume all risks associated with the construction and operation of this device. Mandatory Permanent Bonding: For the safety of your pets, all interlocking segments must be permanently bonded with high-strength industrial plastic glue once aligned. Do not rely on friction fits or temporary fasteners. A failure at high RPM could result in catastrophic shattering. Mandatory Maintenance & Inspection: Mechanical 3D prints fatigue over time. You are solely responsible for performing regular "stress-checks" for hairline cracks, delamination, or bearing wear. If any structural compromise is detected, the wheel must be decommissioned immediately. Assumption of Risk: This project requires advanced technical knowledge. If you are unsure of your ability to produce a structurally sound 1-meter moving assembly, do not attempt this build. No Liability: Under no circumstances shall the designer be held liable for any direct, indirect, punitive, incidental, or consequential damages to property, humans, or animals arising out of the use, misuse, or failure of this design. By downloading these files, you accept that any failure resulting from print settings or improper assembly is strictly your responsibility.
