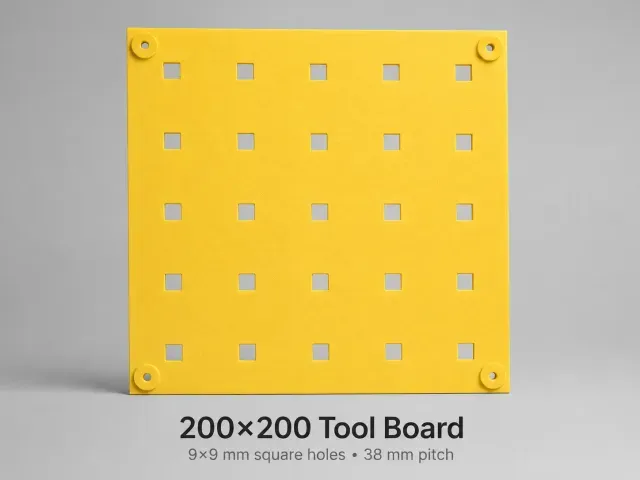

200x200 Square Hole Tool Board – 9x9 mm / 38 mm Pitch C/C

Short description

A compact 200 × 200 mm industrial-style tool board panel with 9 × 9 mm square holes, 38 mm center spacing and four M4 mounting holes. Designed as a printable workshop organization panel, hook compatibility test plate or modular wall-mounted tool holder base.

Industrial-style 200 × 200 mm square-hole tool board panel designed for workshop organization, pegboard testing and modular tool-holder setups.

This model is a compact 3D printable tool board inspired by industrial perforated workshop panels. It uses a 9 × 9 mm square hole pattern with 38 mm center-to-center spacing , making it useful for testing tool hooks, wall-mounted holders, custom 3D printed accessories and workshop storage layouts.

The panel is designed as a thin 1.5 mm functional front plate , so it behaves more like a real metal tool board than a thick plastic wall block. This makes it especially useful when testing hooks and accessories that are designed for thin perforated panels. The model also includes four M4 mounting holes near the corners for screw mounting to a wall, board, cabinet, test rig or workshop surface.

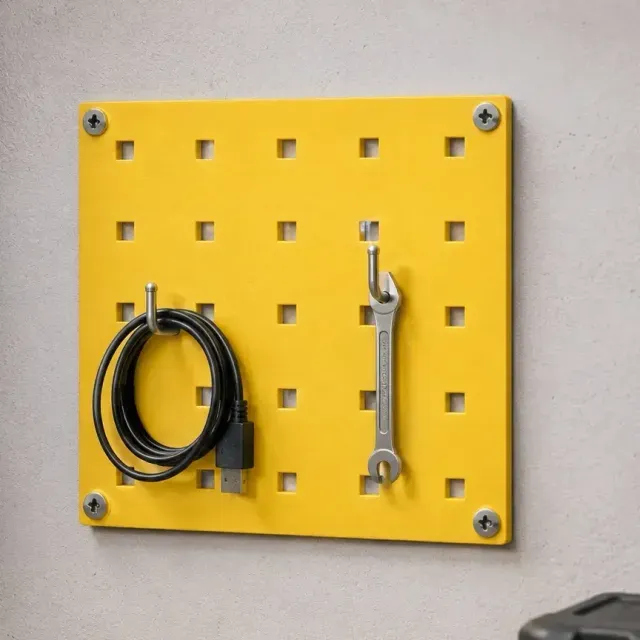

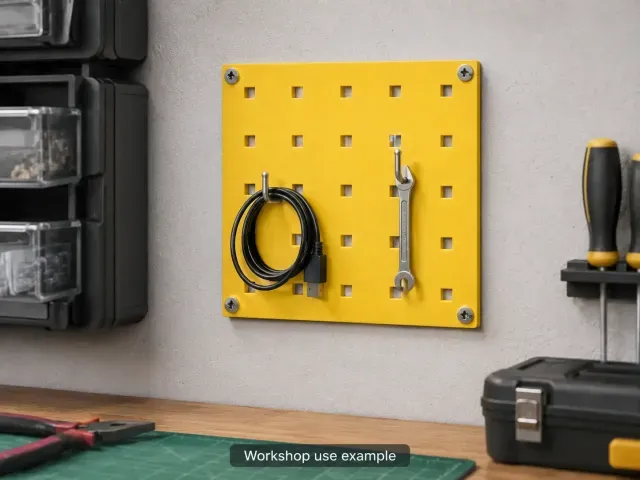

This is a practical model for anyone building a custom garage wall, tool wall, maker space, 3D printing station, pneumatic tool storage area or small workshop organization system.

Main features

- 200 × 200 mm compact tool board panel

- 25 square mounting holes

- 9 × 9 mm hole size

- 38 mm center-to-center spacing

- 5 × 5 hole layout

- M4 mounting holes in all four corners

- Thin 1.5 mm functional front plate

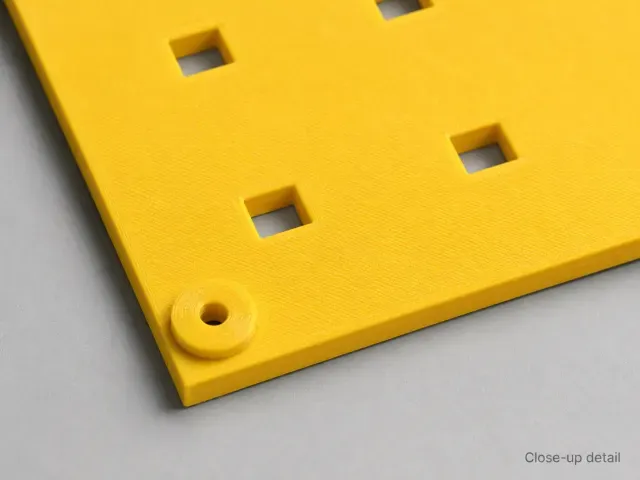

- Raised/reinforced screw areas around the mounting holes

- Good for testing hooks before making a larger tool wall

- Useful for custom 3D printed holders, garage storage and workshop organization

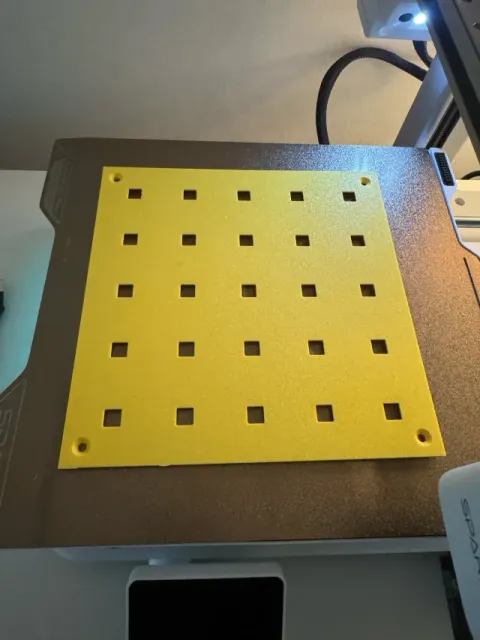

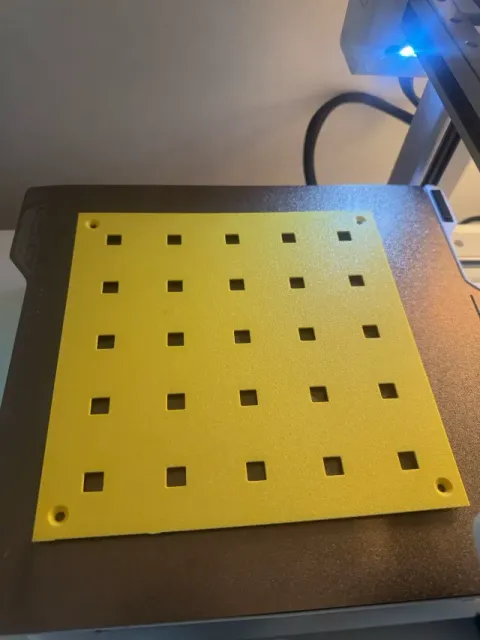

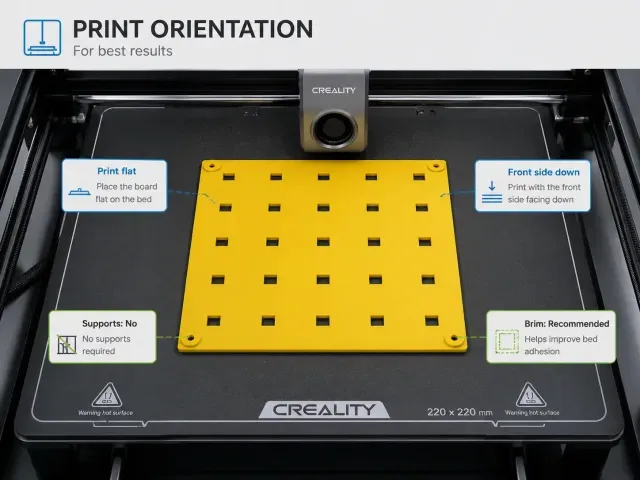

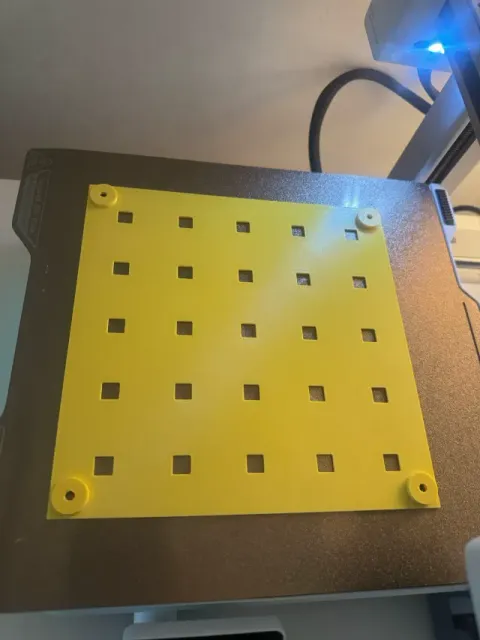

- Easy to print flat on most modern FDM printers

- Designed for functional use, not just decoration

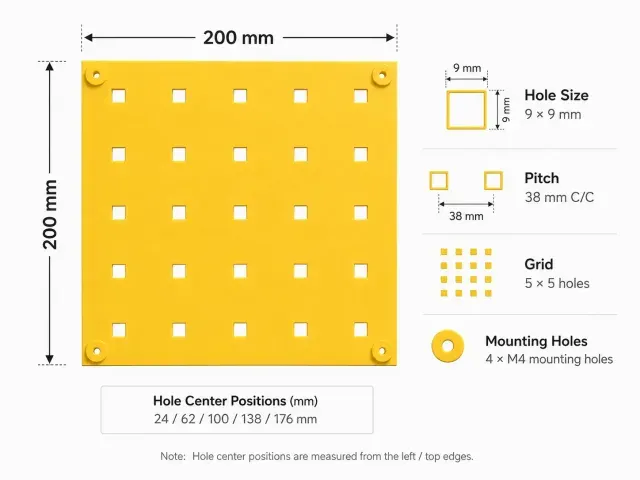

Dimensions

- Overall size: 200 mm × 200 mm

- Functional panel thickness: 1.5 mm

- Maximum height at mounting bosses: approximately 5 mm

- Hole size: 9 mm × 9 mm

- Hole pattern: 5 × 5

- Number of square holes: 25

- Hole center spacing: 38 mm

- Hole center positions from edge: 24 / 62 / 100 / 138 / 176 mm

- Mounting holes: 4 × M4

- Recommended screw type: M4 countersunk or pan-head screw depending on your setup

Suggested uses

This tool board panel can be used for:

- Garage wall organization

- Workshop tool storage

- Testing industrial square-hole pegboard hooks

- Designing custom 3D printed tool hooks

- Pneumatic tool holder layouts

- Small hand tool organization

- Drill bit, socket or adapter holder projects

- Modular maker-space storage
