Bosch E-bike charger BPC3400 (4Amps) holder

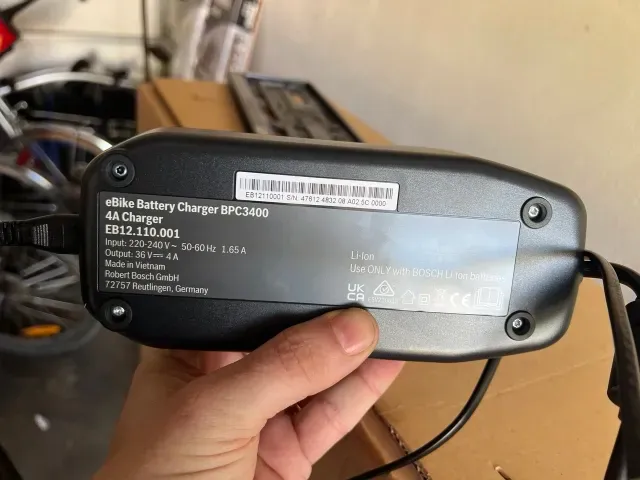

Holder for Bosch e-Bike charger (4Amps) BPC3400.

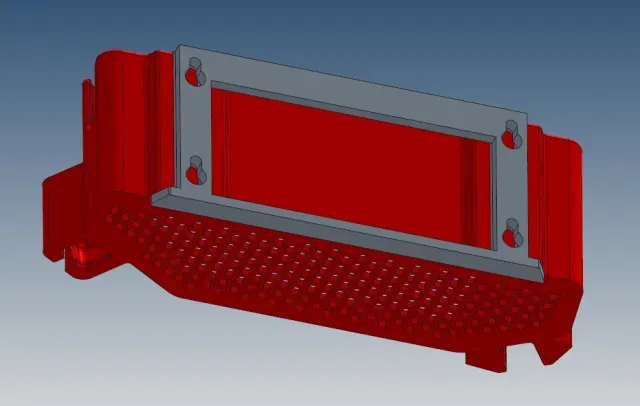

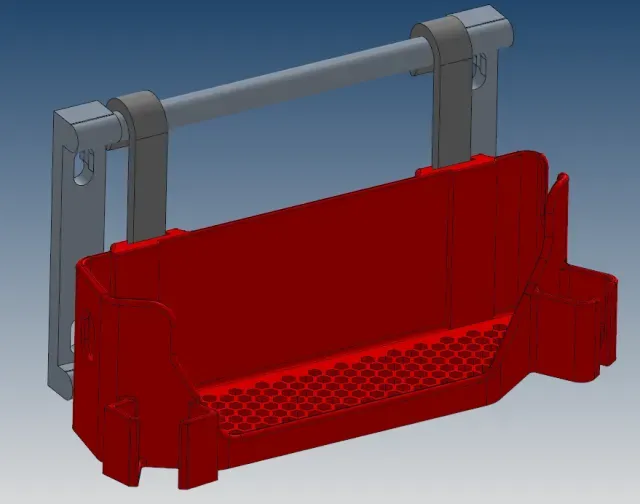

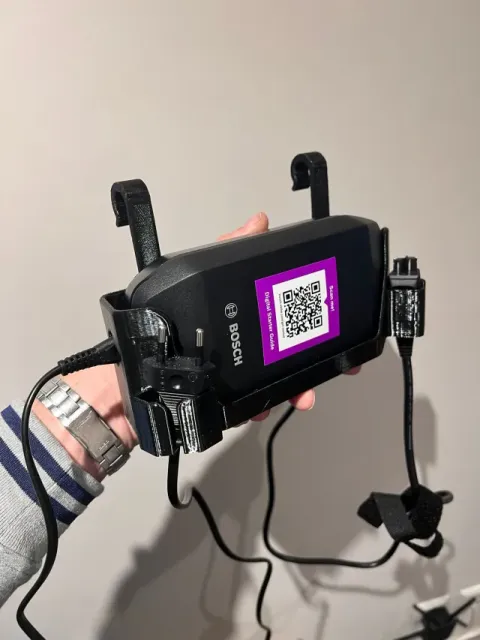

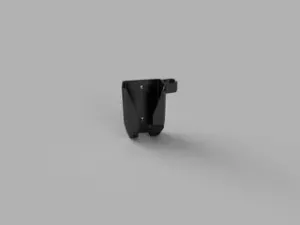

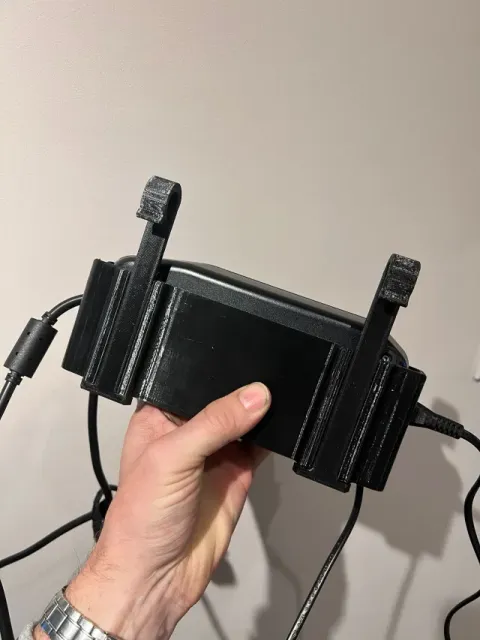

It allows you to hang the charger on the bike's luggage carrier and connect it to the bike. Optionally, the holder can be mounted on the wall without (wallmount Rev. 1) or with the hooks (wallmount Rev. 2).

The 230V power cable (EU variant) and the output cable can be neatly stored in separate compartments on the holder.

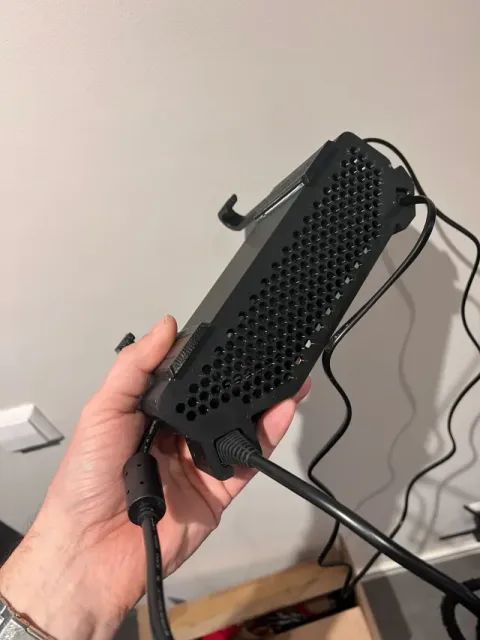

The bottom of the bracket contains various cutouts for better ventilation during charging (even though the Bosch charger does not get as hot as a Shimano one).

Charger holder: BPC3400-1.stl

Hooks (2x): BPC3400-2.stl

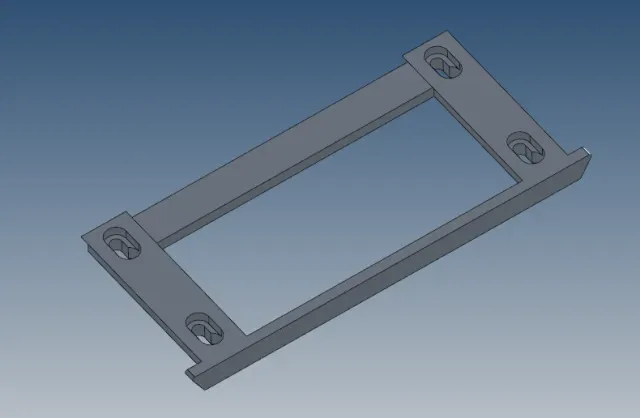

Wallmount Rev.1 (wallmount without hooks version): BPC3400-3.stl

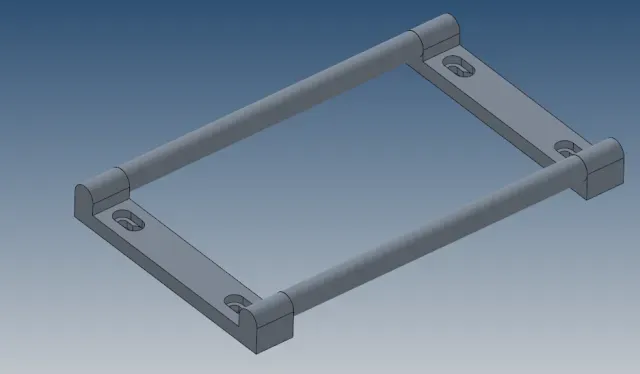

Wallmount Rev.2 (wallmount for hooks version): BPC3400-4.stl

I recommend printing the parts separately (bracket, hooks, wallmount) and choosing individual settings for the number of walls, infill %, etc.
