K2 Rear Poop Bin – Compact Magnetic System

A cleaner alternative for makers who don’t need a full poop chute system.

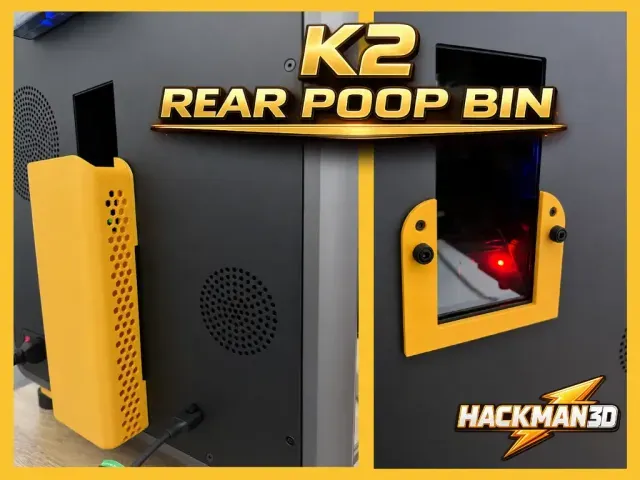

I designed a compact 2-part rear poop bin for the Creality K2.

The system is made of:

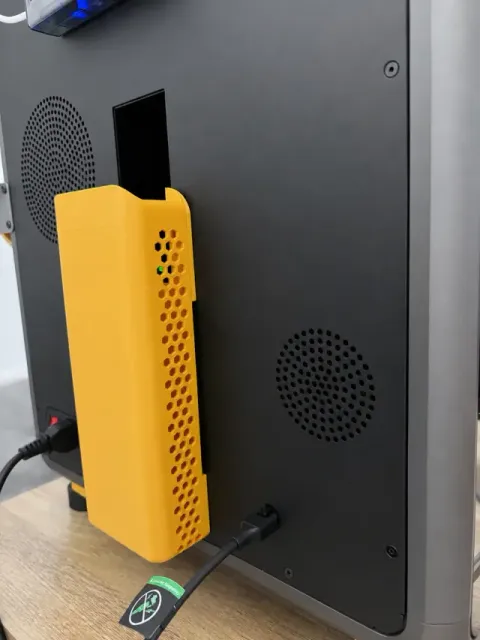

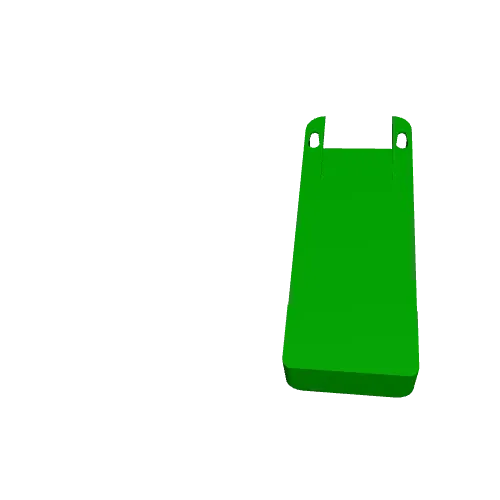

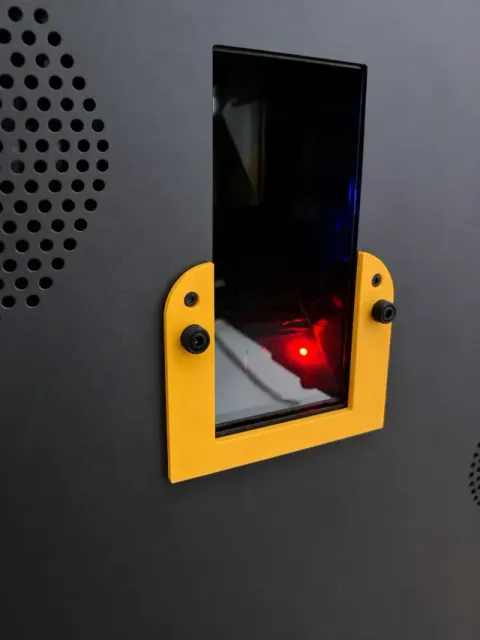

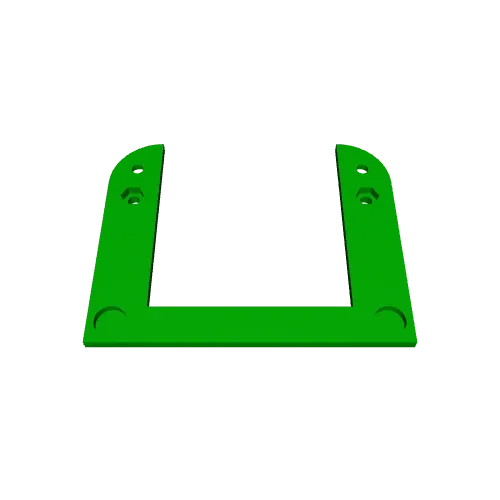

A fixed rear support mounted using the original printer screws Optional 8x2 mm magnets can be glued into the support for extra stability Two printed locking tabs secured with M3x6 screws 2x M3 nuts required for the locking tabs A removable sliding bin that easily clips onto the rear support The side of the bin features a honeycomb opening so you can quickly check the poop level without removing the bin.

Required hardware:

2x M3x6 screws 2x M3 nuts Optional: 2x 8x2 mm magnets Support required for the holder part only.
