A123 26650 Battery Tab

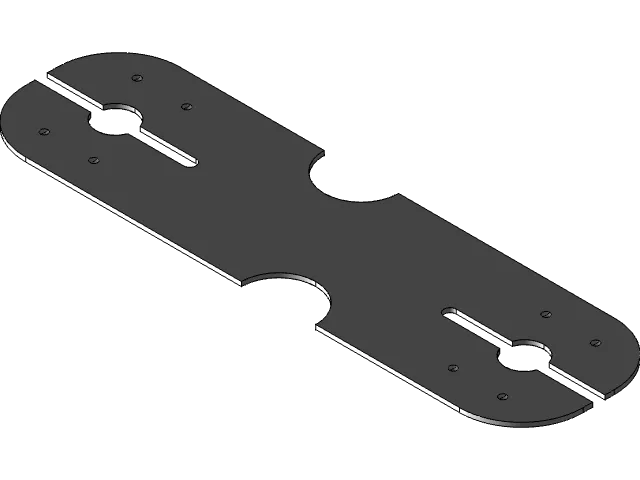

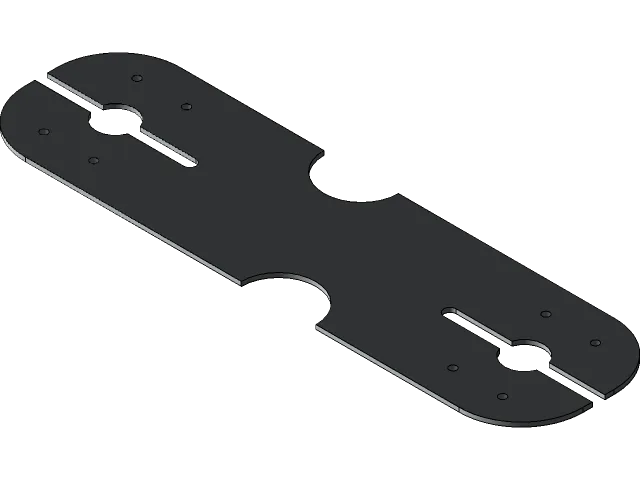

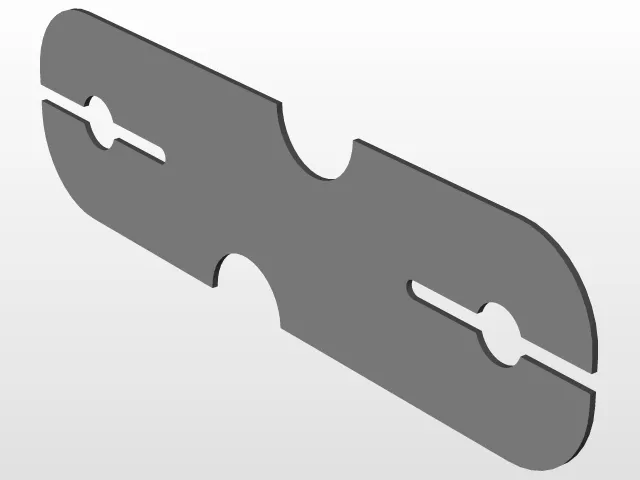

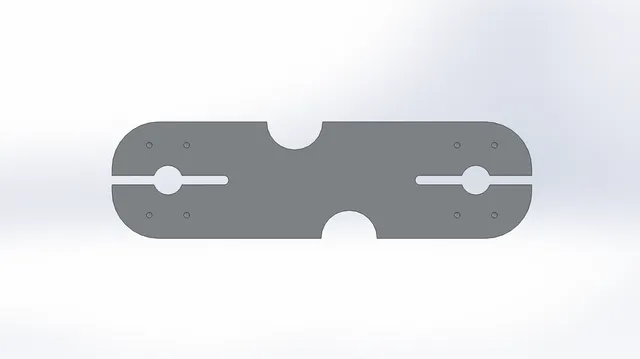

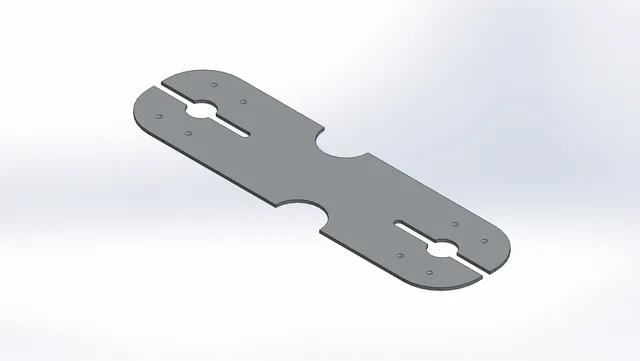

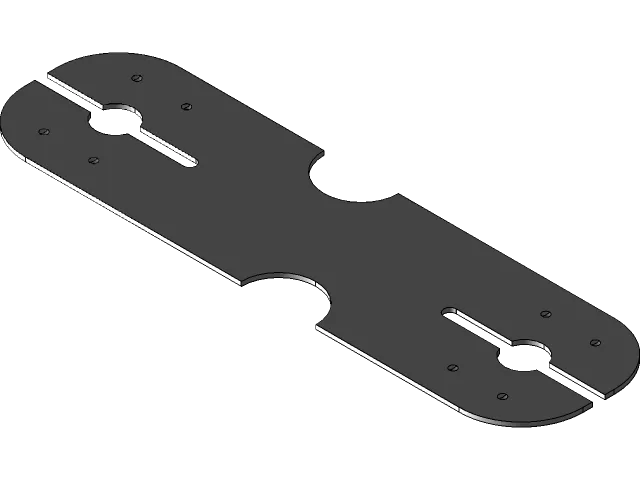

This is a model of the battery tabs used in the assembly of 26650 battery packs. These battery tabs are what connects each cell to the next cell within a group. The battery tabs are welded to each cell terminal using a battery tab spot welder. In this way, you can connect groups of batteries together into one overall large battery pack. These battery tabs are designed to connect one 26650 to an adjacent cell when the cells are inside a 26650 cell holder. This cad was composed in Solidworks 2013.
