Hydraulic Cylinder Cutaway Model

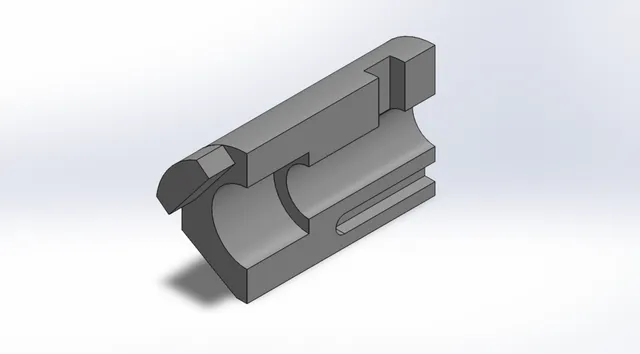

I am ready to work with you to design your products according to your exact requirements! Whether you need 3D modeling, mechanical components, assembly designs, or production-ready drawings, I can bring your ideas to life with high precision and fast turnaround times. Feel free to contact me directly for any custom engineering or design projects. About this model: This is a high-quality 3D cross-sectional model of a Hydraulic Cylinder Component. It is specifically designed to highlight internal geometry and fluid passageways, making it an excellent resource for engineering demonstrations, mechanical animations, or product design references. Key features demonstrated in this design: • Clean cross-sectional cutting layout • Internal stepped bores and counterbores • O-ring seating and sealing grooves • External fluid routing slot configuration Feel free to reach out if you need custom hydraulic or pneumatic parts modeled for your manufacturing needs!
