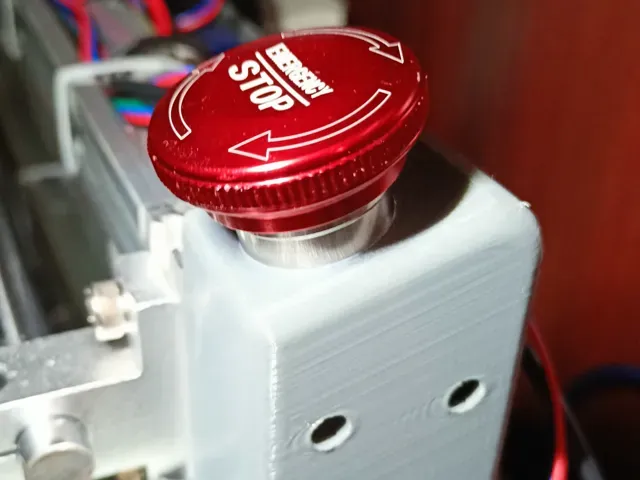

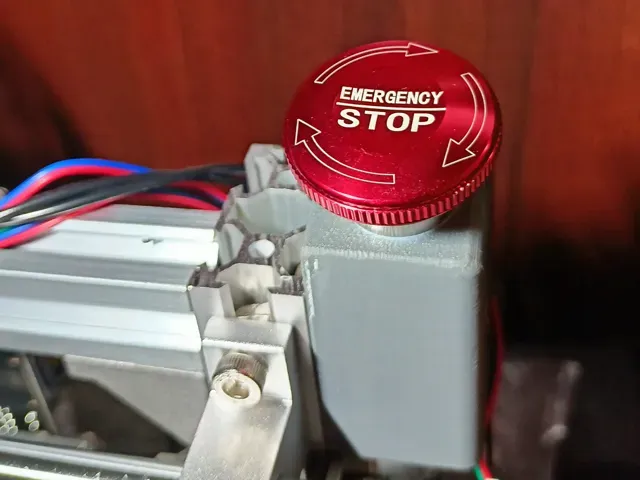

Emergency stop mount to 2040 profile cnc router 3d

Mounting with a housing for a 16mm switch. To this housing, you can mount any 16mm switch to a V-slot 2040 profile using two M5 screws. Ideal for a safety switch in CNC machines.

Print instructions: Use PETG or ABS material with a fill density of more than 70-90%. Ensure supports are placed on the surface of the table.

Assembly steps:

- Insert the M5 screws first. - Then, insert the wired switch with a mounting diameter of 16mm. - There is enough space in the housing to hide a fuse if needed. IMPORTANT: Mount in a visible and safe location!
