Magnet Slide Box - Customize or ready print

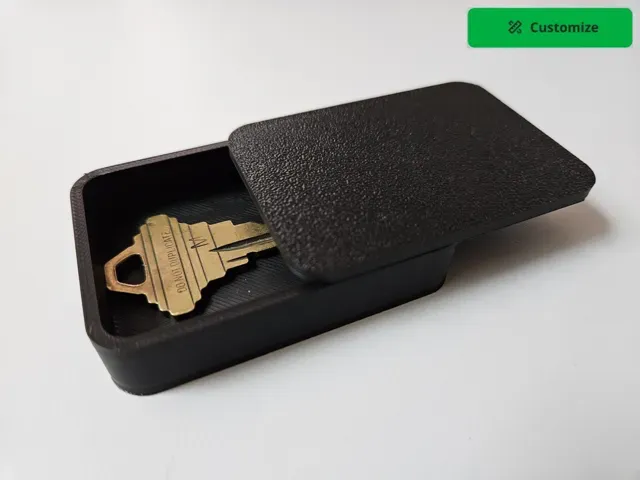

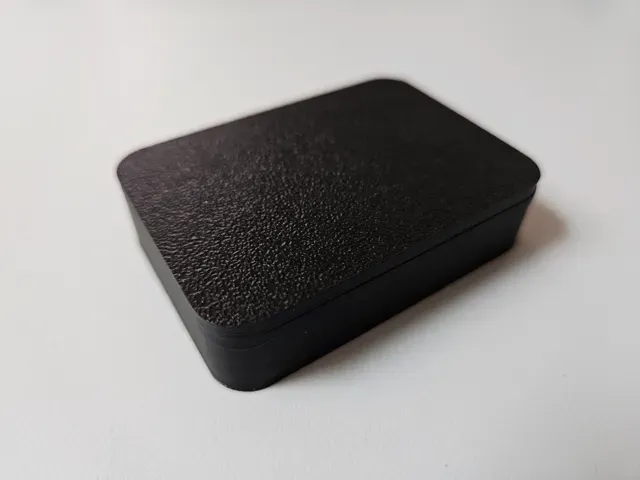

Small Slide Lid Box with Magnets - Customizable (or ready to print)

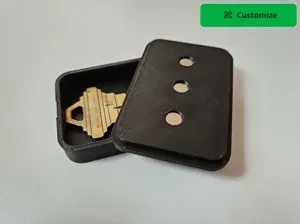

Need to hide the spare key or some stash? These little boxes have a tight fitting slide on lid with magnet holes for easy hidding.

Select Customize to make your very own case

OR

Select one of the “ Ready To Print ” profile options

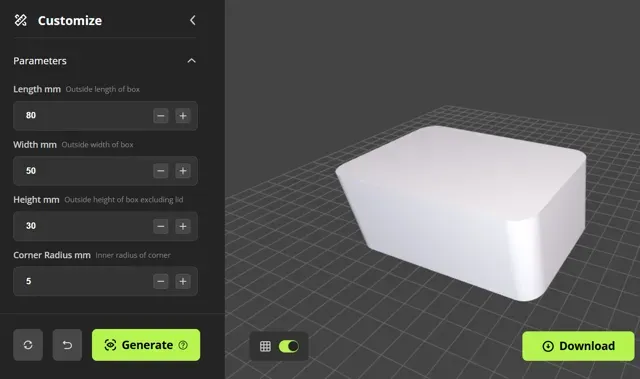

When customizing, the parameters are not validated. Use values that make sense and fully preview the model in Bambu Studio before printing. Here are some tips / suggestions:

- The “Mag Diameter” parameter should be the width of your magnet plus about 0.2 mm. e.g. 6.2 for a 6 mm magnet - The “Mag Depth” parameter is the depth below the lid surface for the magnet. e.g. 0.4 mm or 0.6 mm - Preview the customized download before printing - Prease comment or message me on how the Customize worked for you so that I can improve if needed

After you download your custom case, you need to :

- Select it (click it) - Click "Split to Objects" - Click "Arrange all objects" - Click "Auto Orient" (lid should now be top / flat side down) - Use a standard 0.2 mm layer preset. I personally like one wall on first layer

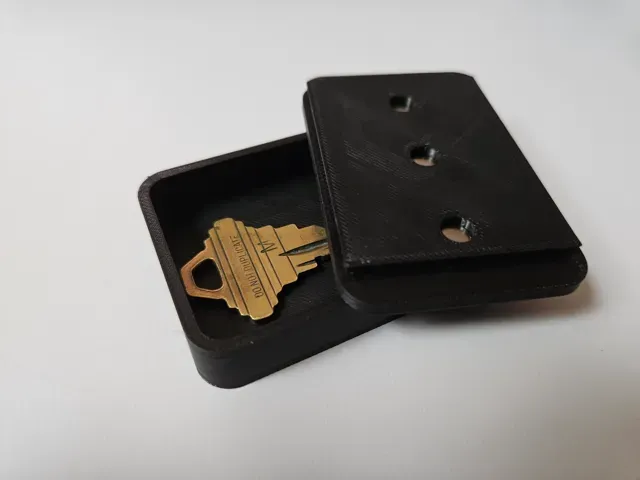

Feel free to add / remove magnet holes from the ready to print profiles. Easy to see in the “objects” list in Bambu Studio. Select one to easily scale (resize) or move. I suggest making these “negative parts” 0.2 mm wider than your magnet diameter. No glue should be needed. The lid is about 5 mm thick, so I make the magnet hole 4.6 mm deep and push the magnet right down. You can try 4.8 mm or even 5 mm for stronger attraction.

Remember to push the magnets all the way down for best results. More magnets obviously improve attraction. To help, you can add a cylinder “Part” 5x5x20 mm to the print and use it to tap in the magnet.

Use your own judgement if these boxes are safe and secure for your specific needs.

I have over 250 different box size and type variations.

Checkout All My Boxes to decide the best type for your needs.
