Modular Tape Dispenser, no Screws / no Tools

This is my tape dispenser in different sizes and can be combined in different ways.

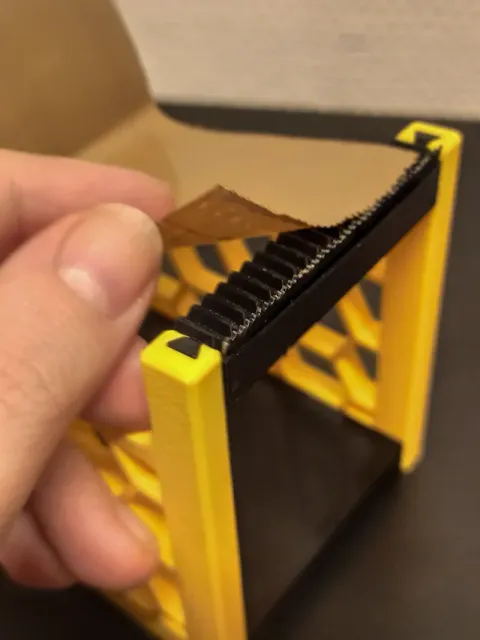

Please choose the right blade for your use!

Update (27.01.2025):

I have now changed all full sets so that you can now hopefully choose the right blade yourself and no longer overlook them.

S(10mm) can fit tape Rolls up to 20mm

M(20mm) can fit tape Rolls up to 35mm

L(50mm) can fit tape Rolls up to 60mm

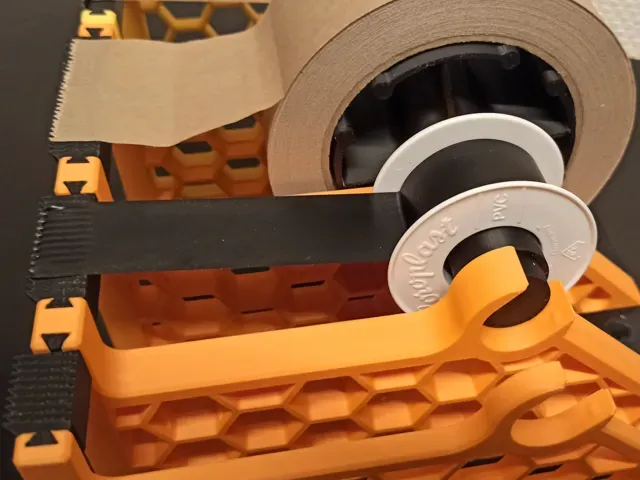

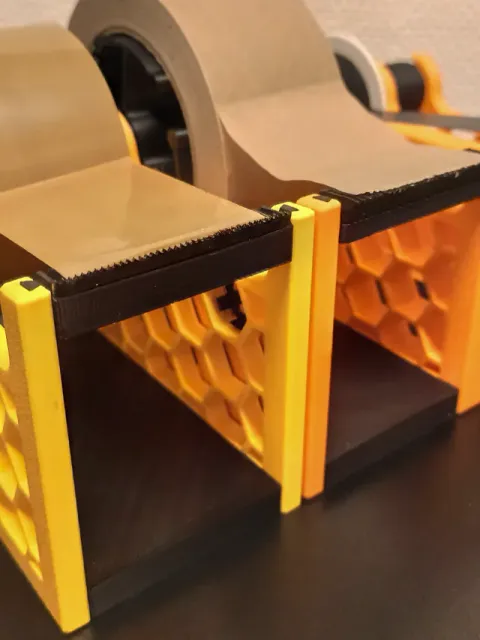

You can build them individually or put them together by using later the connector.

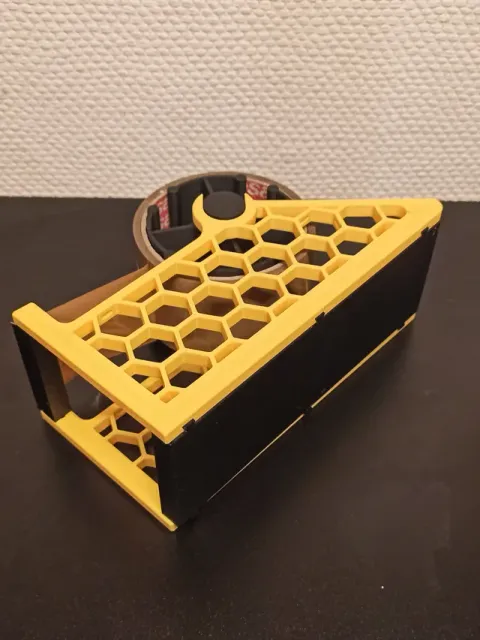

But you can also bulid a large battery with the double frame.

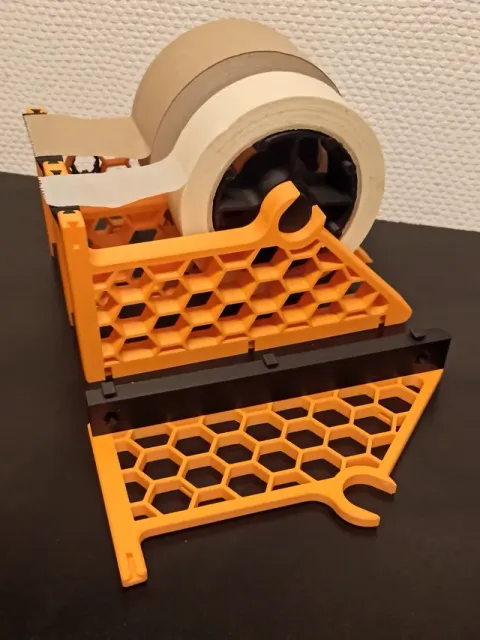

No screws or other tools are needed for assembly. If you want, you can glue the joints, but it is not necessary.

There are holes in the base plate for example for a French cleat system. A variant for the Skadis wall is to be made in the future.

Update (23.01.2025): The printable French cleat adapter has been uploaded. You need an M4/25mm screw or whatever you have on hand.

The axle is intentionally sized so that smaller tape rolls can fit on it.

Update (25.01.2025):

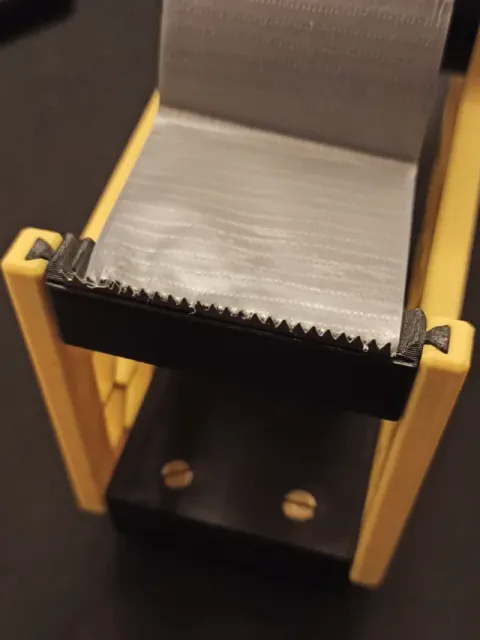

I have now uploaded the strongest and most aggressive blade from a previous version ( V3 ).

They can now be found in the full sets of each variant. I hope that works better for you, otherwise I always recommend the saw blade .

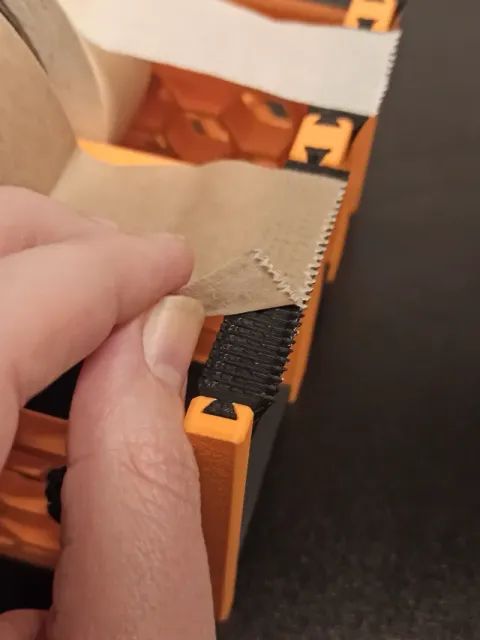

There is a saw blade variant for each size. And in my test, not only hacksaw blades (300x13x0,6) fit in there, but also some jigsaw blades to.

Update (29.01.2025):

I'm currently working on a North American version that can fit larger rolls and uses less filament.

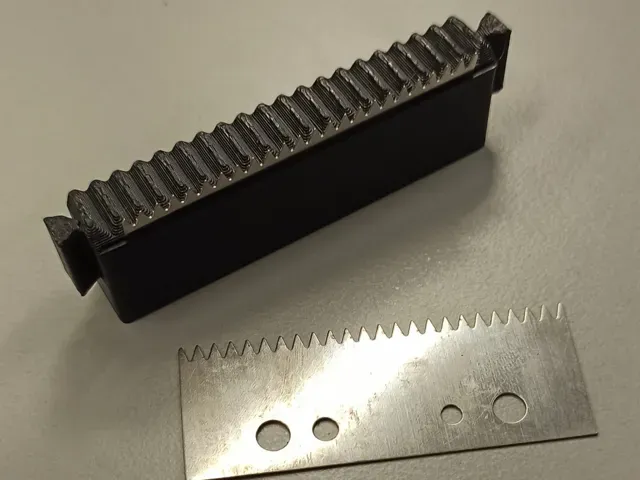

Update (29.01.2025): The new 50mm blade is here, replacement blades for packet tape dispensers can now be used. (idea by olo2000pm) I bought mine from Amazon. You can also put a box cutter in the same model.

The blade even manages fabric tape from 3M.
