Filament Spool Dry Box

Do you have one or more expensive spools that you need to keep dry but a large drying cabinet is too much for you?

This single spool dry box is the solution to your problems!

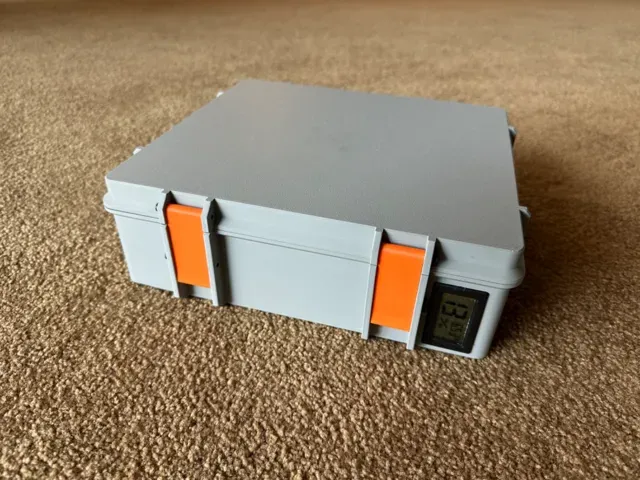

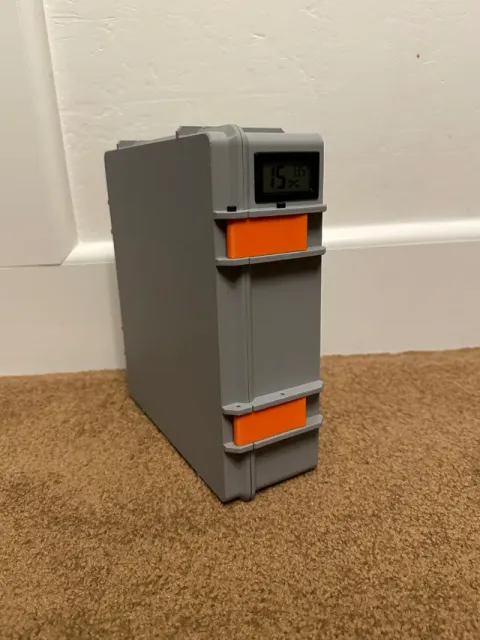

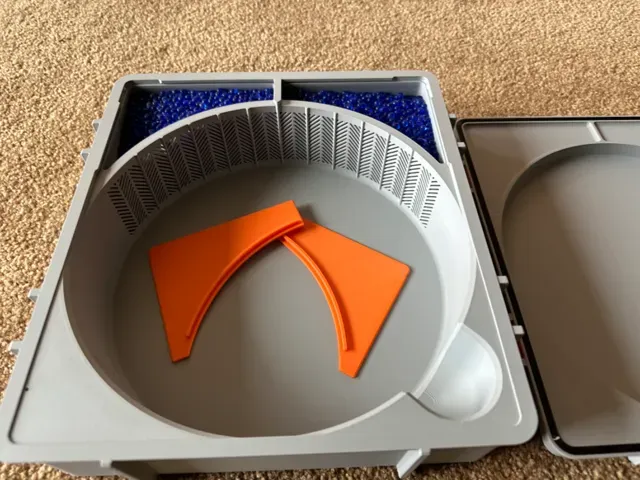

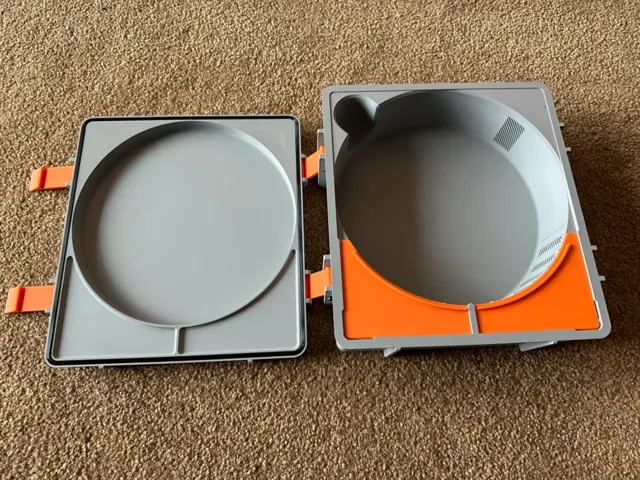

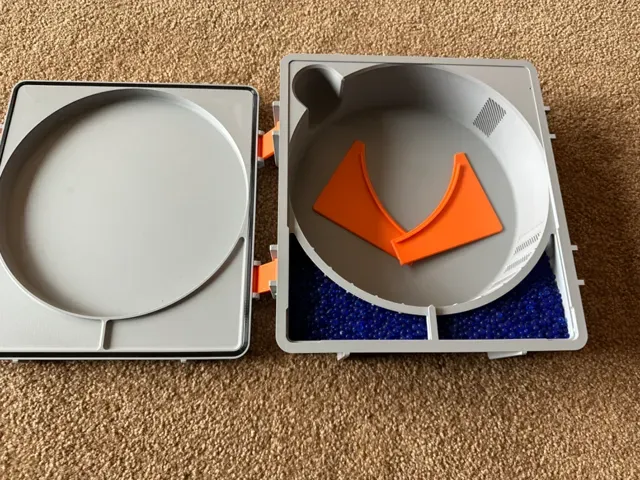

It's a Pelican-style latching dry box that will fit just about any 1kg spool.  The robust latches along with the TPU seal will keep moisture out.  Separate desiccant compartments keep the beads in place until you're ready to replace them.  There's also an option to install a hygrometer to monitor the humidity in your box.

Parts:

- 1x Base (PLA) - Recommend ironing topmost surface for better sealing - Tree support needed for hygrometer version (No hygro version is support-free). - 1x Lid (PLA) - 2x Hinge (PLA) - Print vertically with flat side down. - 2x Latch (PLA) - Print vertically with flat side down. - 1x Desiccant Lid, Left (PLA) - 1x Desiccant Lid, Right (PLA) - 1x Seal (TPU) - Recommend printing on smooth build plate for best fit, will probably still work with texture though.

Additional non-printed parts:

- 8x M3x30 cap screws - 1x Rectangular hygrometer (Optional)

Size: 253.6 mm x 235.6 x 80 mm

- Fits in the Bambu X1C or P1S.   Will not fit in A1 :(

Please comment if you have interest in a non-TPU seal design and I'll see what I can do.

Link to Onshape CAD
