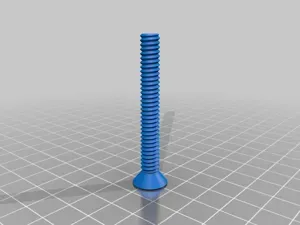

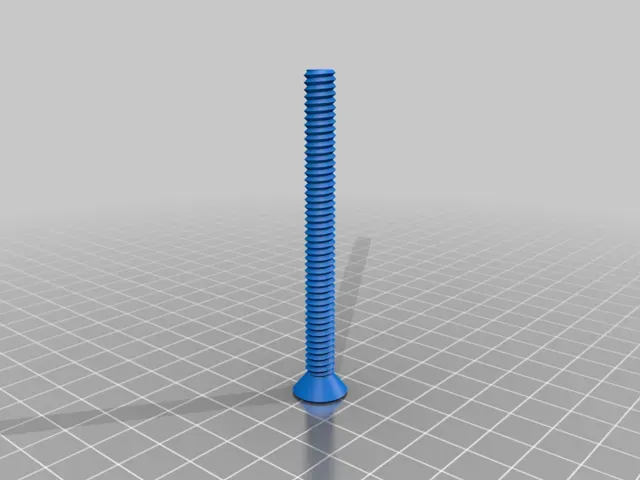

m7 x 70mm

Summary

Customized version of https://www.thingiverse.com/thing:193647

Created with Customizer! https://www.thingiverse.com/apps/customizer/run?thing_id=193647

Instructions

Using the following options:

type = bolt head_type = countersunk drive_type = phillips head_diameter = 12 head_height = 5 drive_diameter = 5 slot_width = 1 slot_depth = 2 texture = exclude thread_outer_diameter = 7 thread_step = 1.5 step_shape_degrees = 45 thread_length = 70 countersink = 2 non_thread_length = 0 non_thread_diameter = 0 nut_type = normal nut_diameter = 12 nut_height = 6 nut_thread_outer_diameter = 9 nut_thread_step = 1.5 nut_step_shape_degrees = 45 wing_ratio = 1 inner_diameter = 8 outer_diameter = 14 thickness = 2 facets = 6 socket_facets = 6 socket_depth = 3.5 resolution = 0.5
