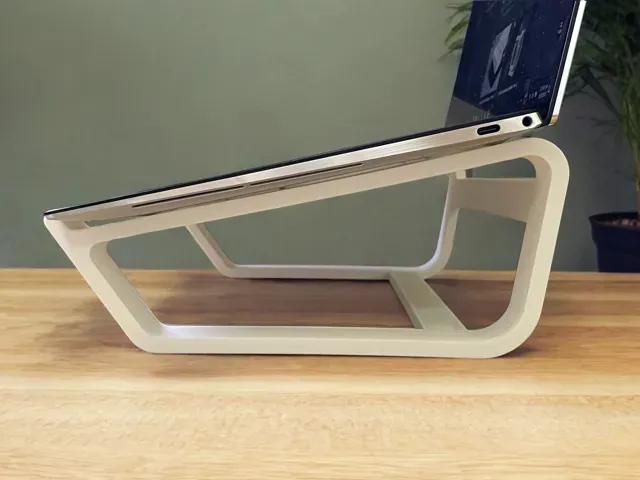

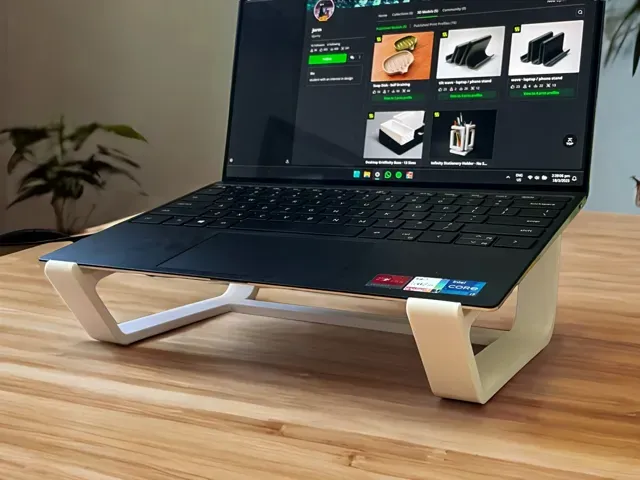

Sleek Laptop Riser

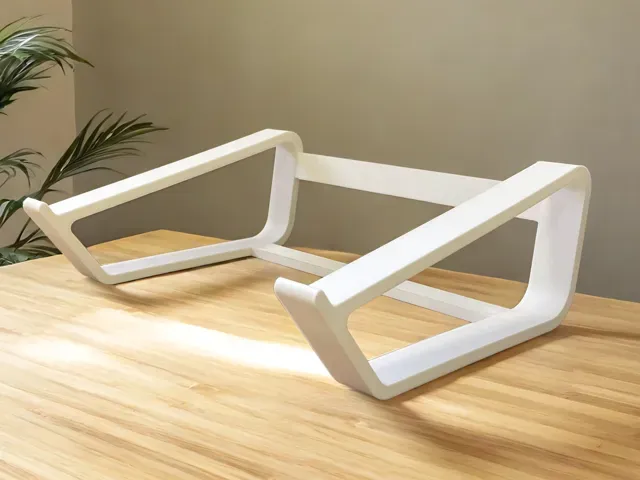

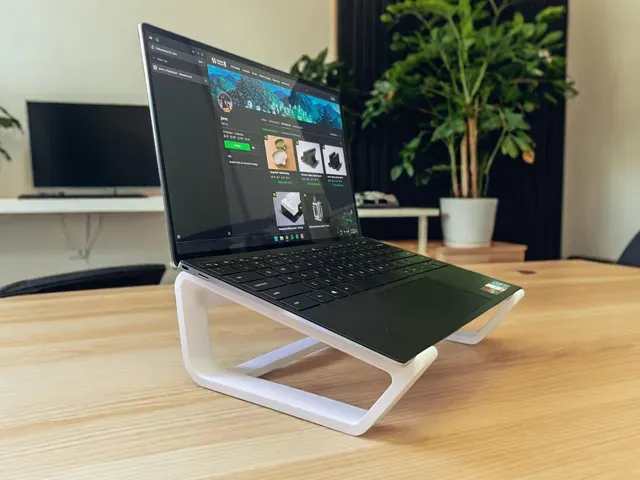

This sleek and modern laptop riser is designed to elevate your workspace!

Compatible with most 13", 14", 15", and 16" laptops. Dimensions are available below.

Features

- Its tilted design improves viewing angles and reduces strain on the neck and wrists, making long hours of use more comfortable. - The raised structure creates additional usable space beneath the laptop, perfect for organising accessories or improving airflow for cooling. - The stand also features connection pieces that securely link both supports, ensuring stability for your laptop .

Assembly

- Print all 3 plates, and the last one (connector) twice. - To attach the connectors, glue is optional. The tolerances should be tight enough to hold the stand together.

Dimensions - 13" & 14"

- The top surface of the riser has a length of 190mm (excluding the rounded surface), and it can support 20 - 22cm wide laptops, which should be enough for most 13" - 14" models.

- The connection piece has a length of 217mm as it was the largest that I could fit on my A1 Mini's buildplate. This should be fine for most laptops, but .STEP files are available for you to lengthen if needed.

- Both left and right stands have a width of 25mm.

- The tip of the riser is raised 50mm above the ground.

Dimensions - 15" & 16"

- The top surface of the riser has a length of 243mm (excluding the rounded surface), and it can support 25 - 27 cm wide laptops, which should be enough for most 15" - 16" models.

- The connection piece has a length of 285mm. This should be fine for most laptops, but .STEP files are available for you to lengthen if needed.

- Both left and right stands have a width of 25mm.

- The tip of the riser is raised 50mm above the ground.

changelog

23/3/25 - Updated Connector pieces for 15" & 16" profile from 270mm to 285mm
