Webcam Logi Brio 100 stand for slim edge monitor
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC-SA
- Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
- Форматы
- 3MF
- 113 Лайки
- 896 Загрузки
- 602 Напечатали
- 410 В подборках
- 31 Бусты
- 66 Комментарии
- 0 Просмотры
Описание

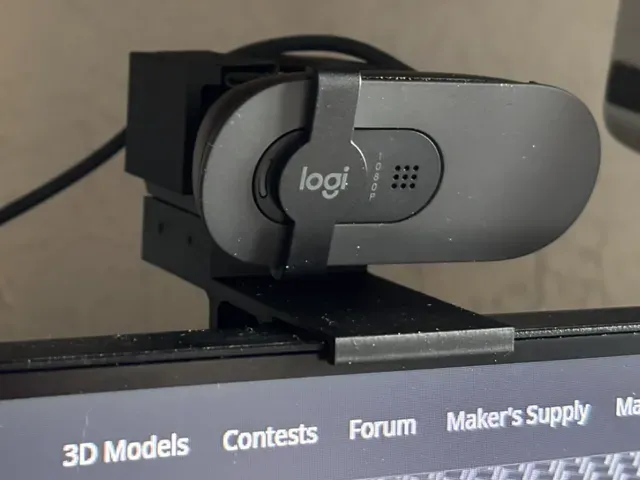

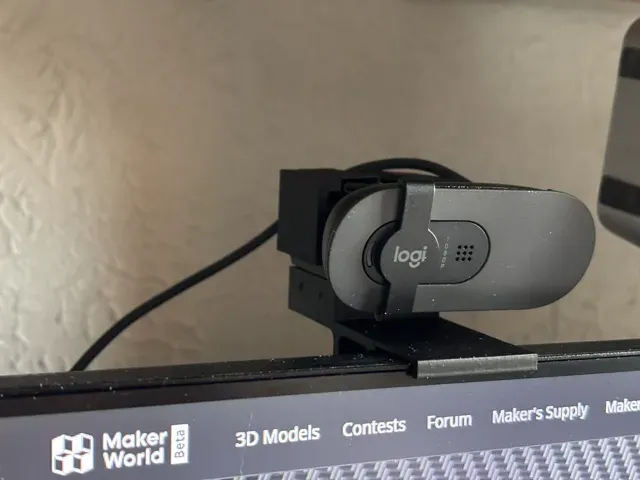

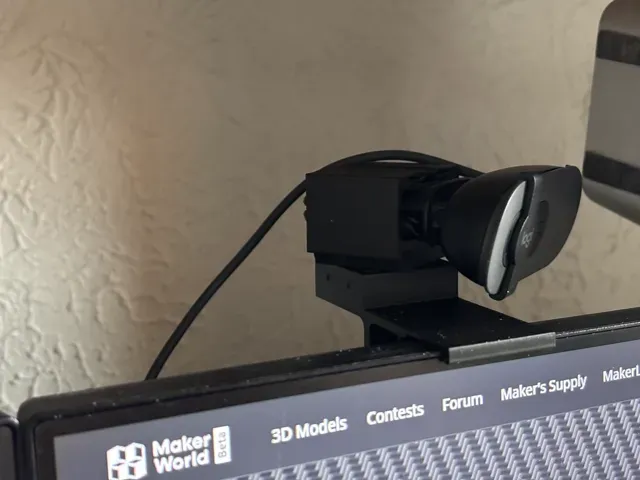

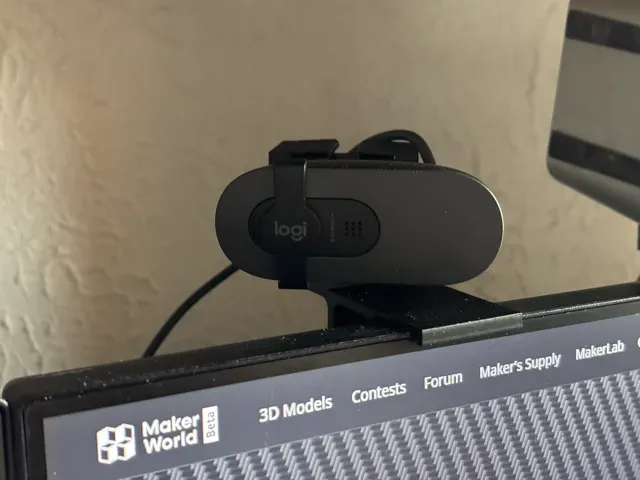

This nice webcam has two cons: a stiff cable and no capacity to pan, so I designed this stand to correct that.
The support has following features:

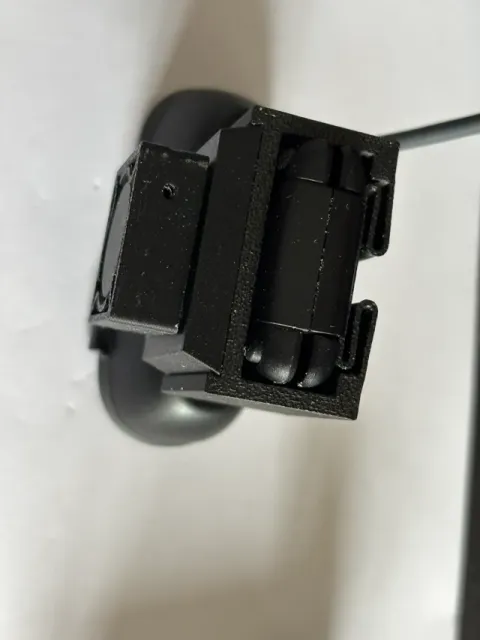

- Friction pan is stiffer than the cable stiffness, webcam will stay in place - Stand fits slim border screens, up to 2mm. - There is a “compartment” that allows to add ballast for better stability (use small nuts or pebbles). - Web cam is set back, to give a little more depth - Webcam is embed without modification by resilient claw. Compatibility List:
- Brio 100 - C 270
The design allows easy remixes, feel free to do I hope you will find it useful Give me news
Руководства и профили печати
Профили печати и шаги

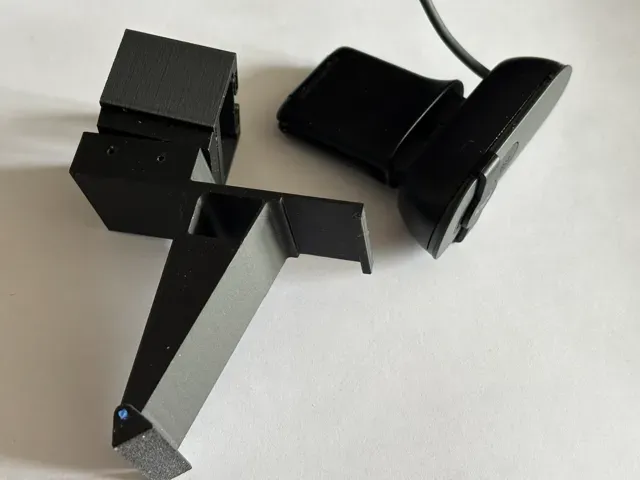

0.2mm layer, 2 walls, 15% infill - I advise to support the box for hinge in the big bracket, no support for the “compartment”, no support else where. - On top works there are 1.75mm holes to block parts together by inserting filament, you may have to pass with a drill bit 1.7mm if you want hard fixation or 1.8mm if you want to keep the possibility to dismount the assembly - On foot drill one lug 1.8mm and 1.7mm the second lug, insert filament in the 1.8mm hole and push through the 2mm foot hole (no need to rework) make the hinge.
