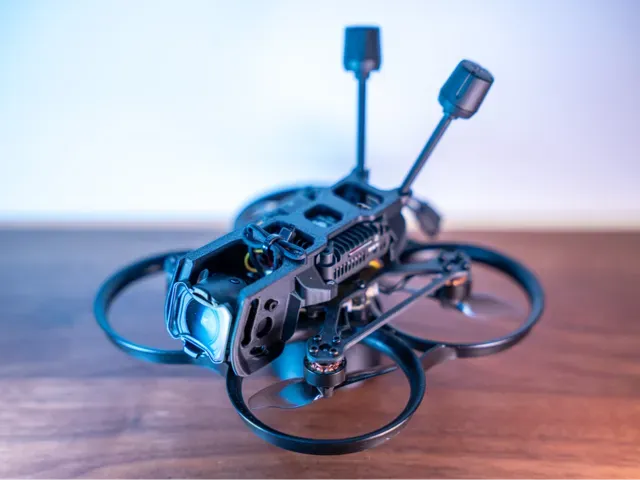

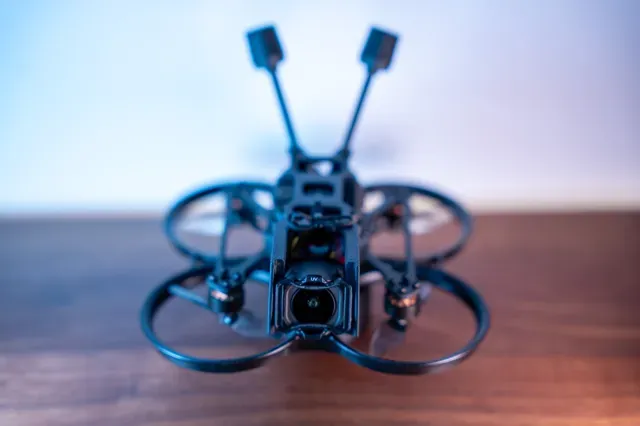

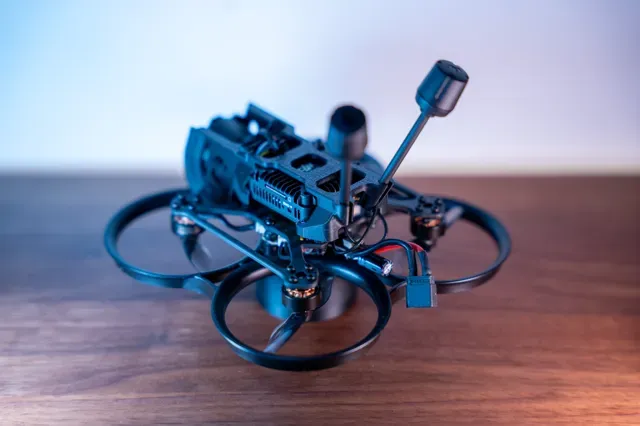

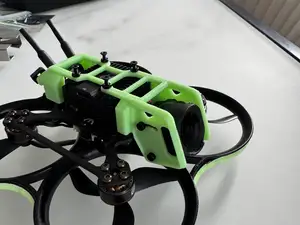

Pavo 20 - DJI O4 Pro Air Unit Canopy / VTX Mount

A canopy (VTX bracket/mount) for mounting the DJI O4 Air Unit Pro for the BetaFPV Pavo20 (non-pro version) FPV drone. Compared to the original model from ananasio, the positioning of the holes for the inserts has been changed so that it is now compatible with the Pavo20. In addition, the radial hole for attaching the camera has been slightly enlarged to flatten the camera angle a little.

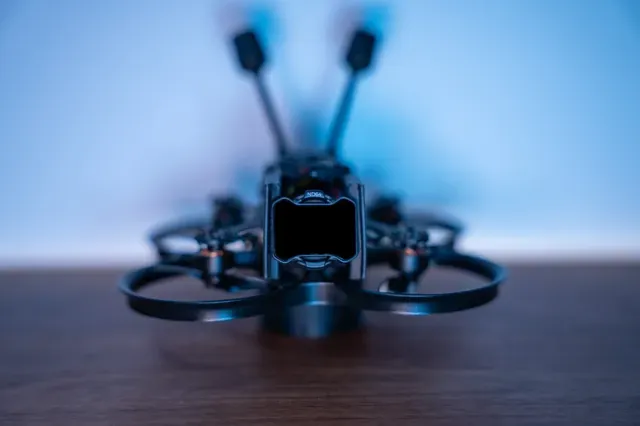

Standard O4 Pro / Avata 2 filters (ND/UV/PL) are compatible (see photos).

Installation : The O4 Pro Air Unit is simply clamped and not screwed. For the four holes for the canopy, M2 threaded inserts must be used for fastening. The original DJI antennas can be used (tight fit). It is best to use small O-rings (e.g. 3x1mm) when attaching the camera to reduce vibrations and thus jello.

As the model is based on a tight fit, please note the print settings. If necessary, simply scale the model in the slicer by +/- 1%.

Was printed in PLA with 90% infill and tree support - strength and temperature resistance are sufficient.
