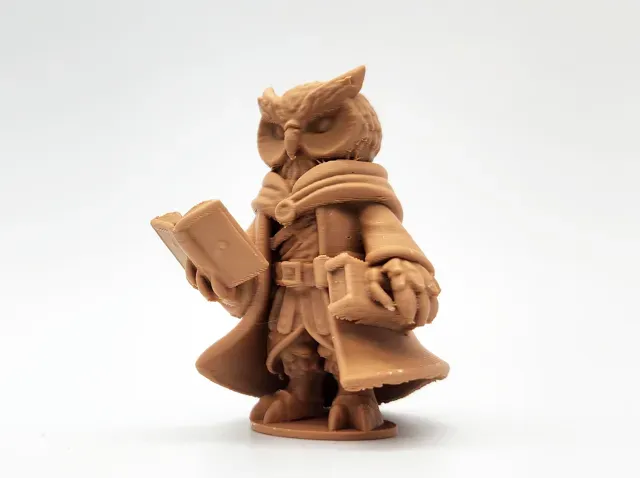

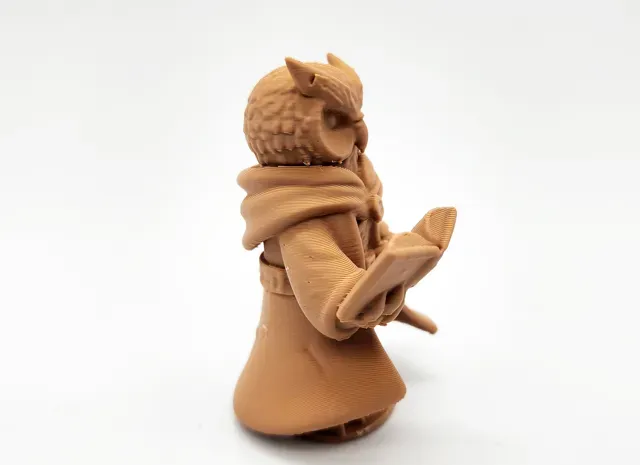

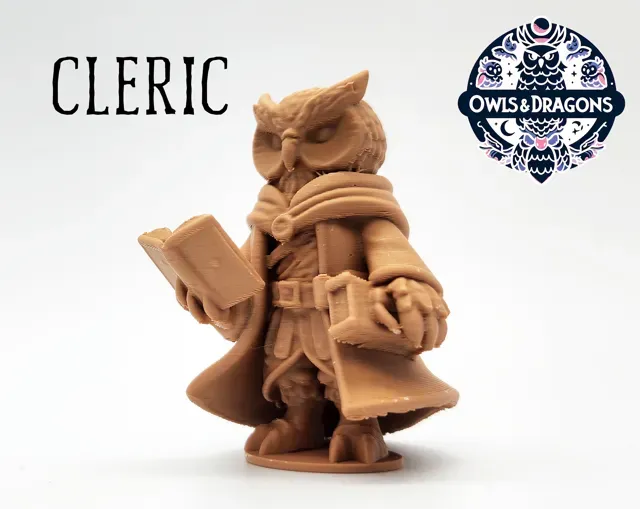

The Cleric - Owls & Dragons

EZ Off Supports 0.2mm layer, 2 walls, 15% infill

60% scale, 0.2mm nozzle, 0.06mm layer, 3 walls, 5% infill Print profile at 60% scale for 0.2mm nozzle and 0.06mm layer height.

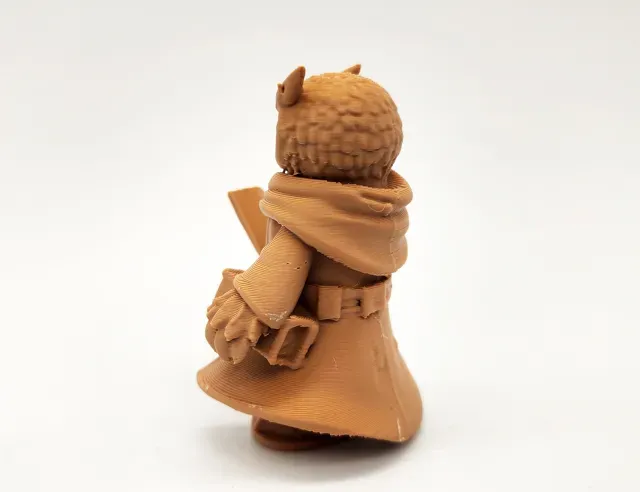

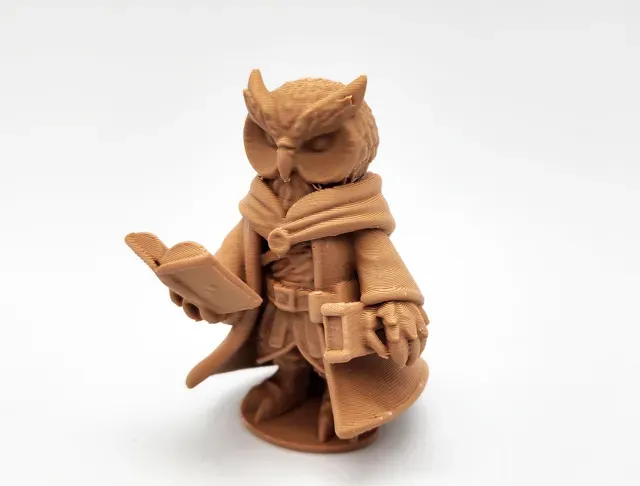

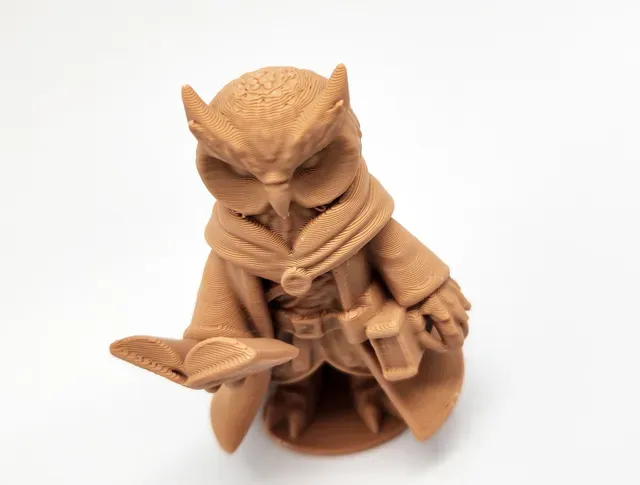

This gives maximum detail for a reasonably sized figure (around 40mm) without taking forever to print.

I've spent some time tuning in the support settings to avoid print failure due to issues with bed adhesion at this scale and layer height.

The settings in this profile have given the best results on my A1 Mini with textured build plate (all I currently have).

So, you may be able to get away with less robust settings on an XY core printer or with a different build plate type.

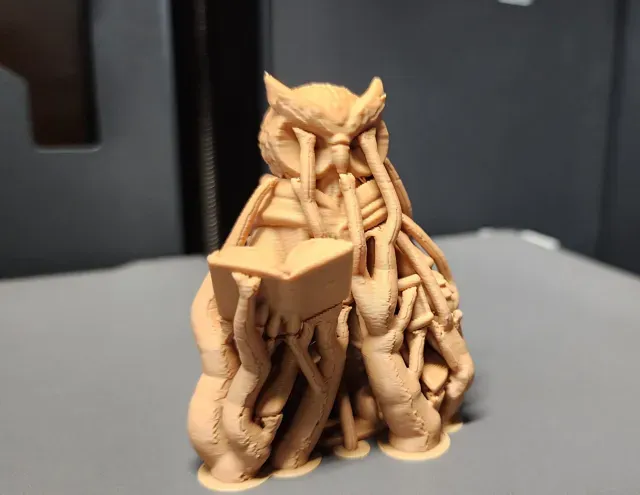

There are minimal supports that are relatively easy to remove with some careful snipping of the stems and a little bit of patience.

Main support settings

Type: Tree (auto)

Style: Default

On build plate only: Yes

Support critical regions only: Yes

Remove small overhangs: Yes

Initial layer density: 100%

Initial layer expansion: 10mm

Support wall loops: 2

Support speed: 50mm/s

Support interface speed: 50mm/s

Other relevant settings:

Initial layer height: 0.18mm

Seam position: Aligned

Wall generator: Arachne

Wall loops: 3

Infill: 5%, Gyroid
