Slide-In Clip with Hook

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 99 Лайки
  • 285 Загрузки
  • 236 Напечатали
  • 330 В подборках
  • 4 Бусты
  • 27 Комментарии
  • 0 Просмотры

Автор:FreddyA2L

Опубликована

Описание

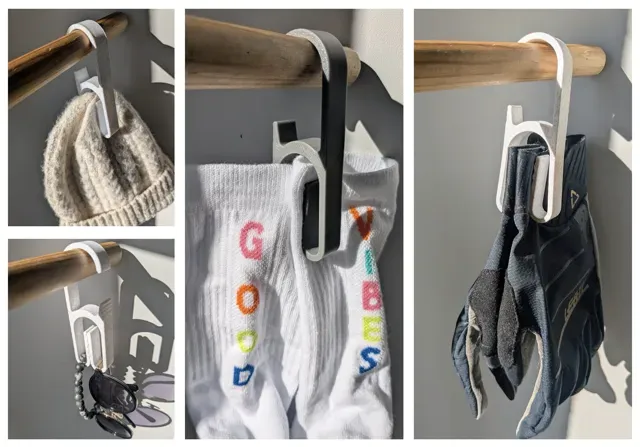

I spent a long time looking for the right clips for gloves, hats, jackets etc. on Makerworld, but couldn't find anything suitable... so I got creative myself. My requirements for the clip were clear. They had to provide a strong hold and a hook for hanging. They also needed to print quickly and not use too much filament (as I need a few clips around the house...).

& here is the result:

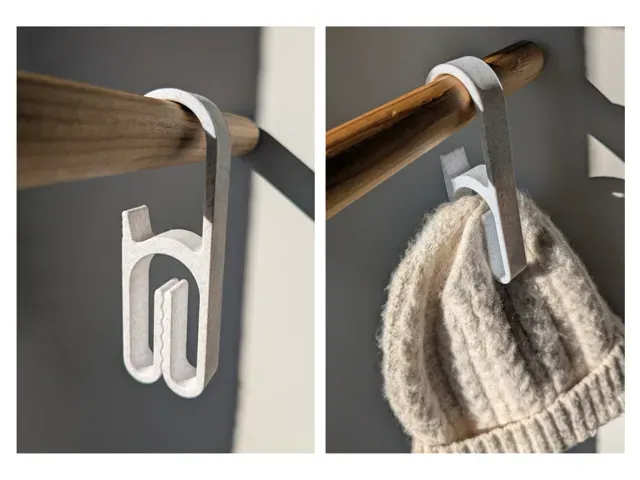

The special feature of this clip is that it also has the advantages of a clamp. The object is not just clamped in like with a classic clamp. The clip is slid over the object and the object can be removed just as easily.

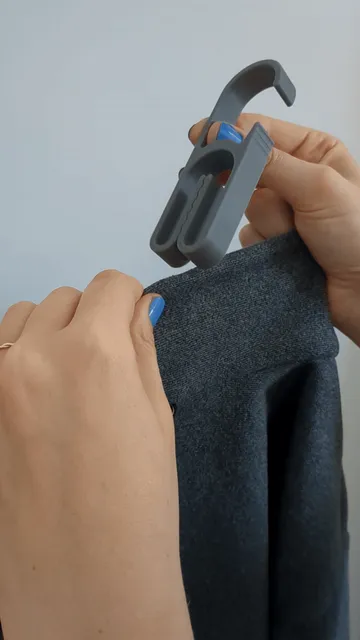

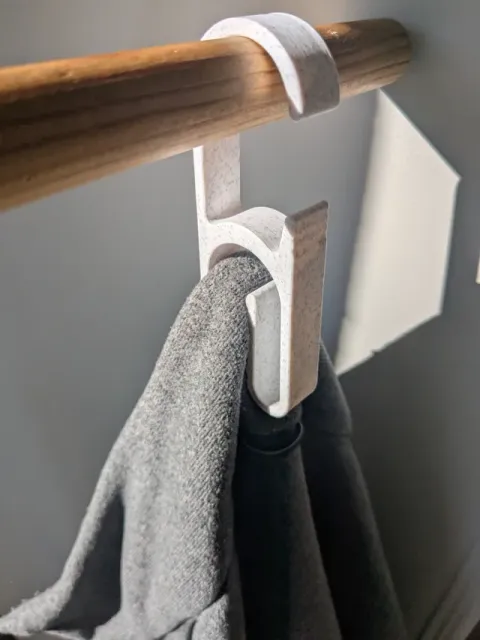

Heavy items of clothing such as jackets are fully clamped and pulled over the edge to guarantee a secure hold (as shown in the video and third picture).

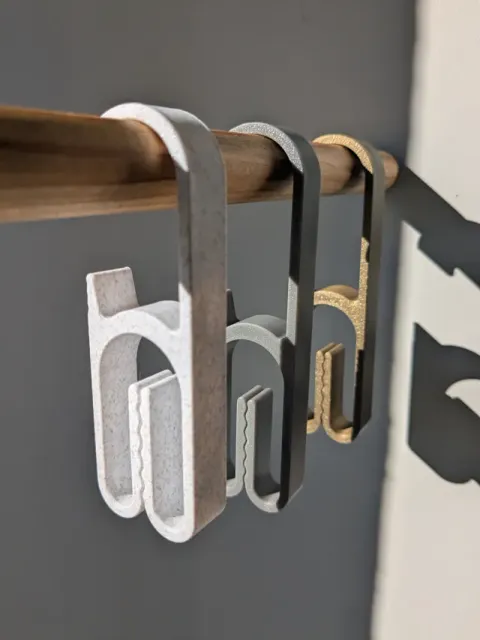

Two sizes are available with a hook opening of 35mm in the large version and 20mm in the small version.

Only 10 grams of filament for the small version.

Руководства и профили печати

Профили печати и шаги

small version_0.2mm layer, 2 walls, 4% infill

large version_0.2mm layer, 2 walls, 4% infill
