Universal Monitor Phone Mount | Webcam | Droidcam

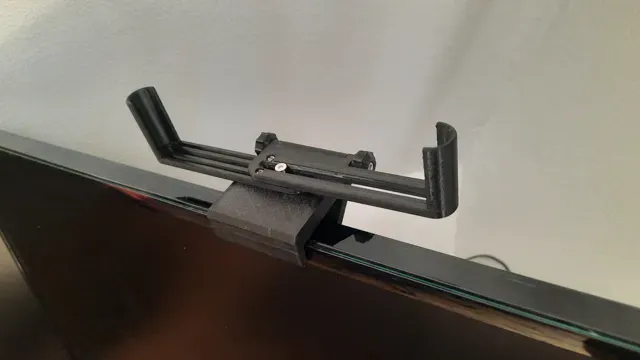

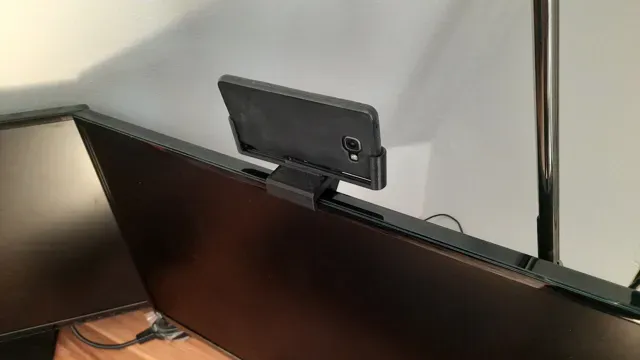

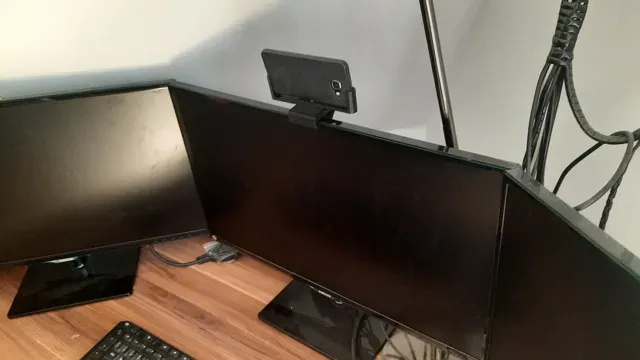

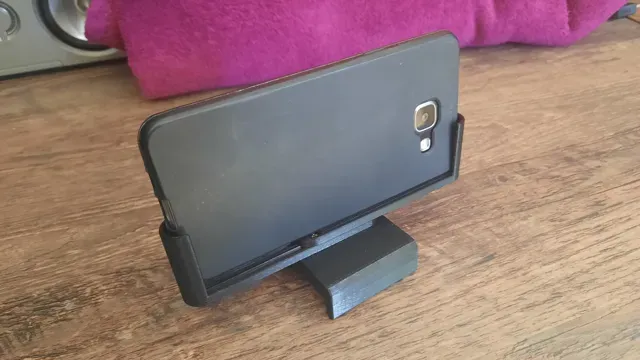

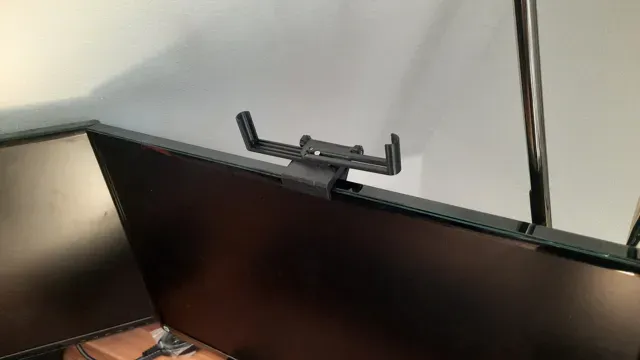

This (sightly overengineered) design allows you to mount (almost) any common smartphone on a vast variety of monitor frames. I use it primarily in conjunction with the android app Droidcam to use my smartphone as a webcam when I take part in an online meeting, but I'm sure it's also suitable for other applications.

The mount can be customized in several ways:

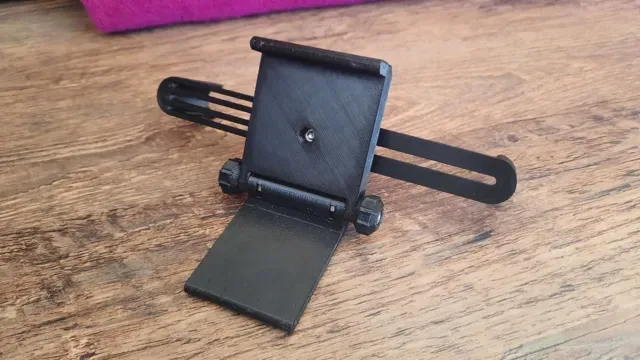

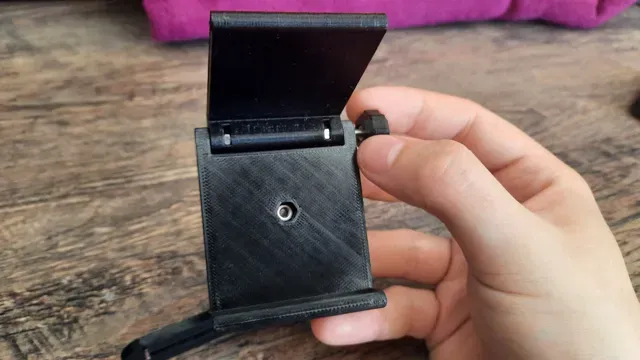

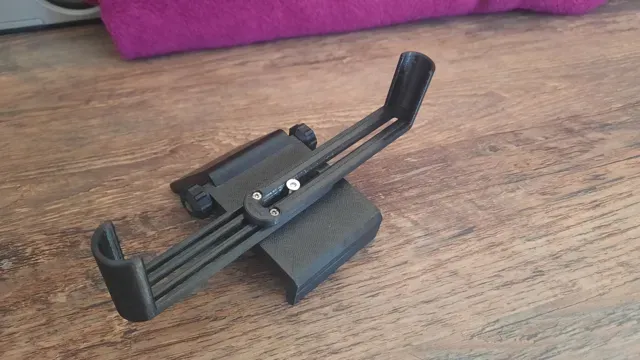

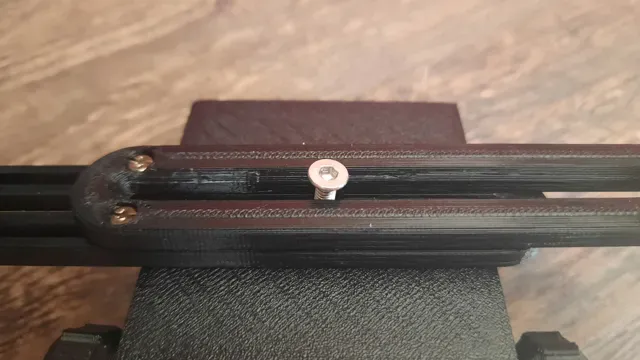

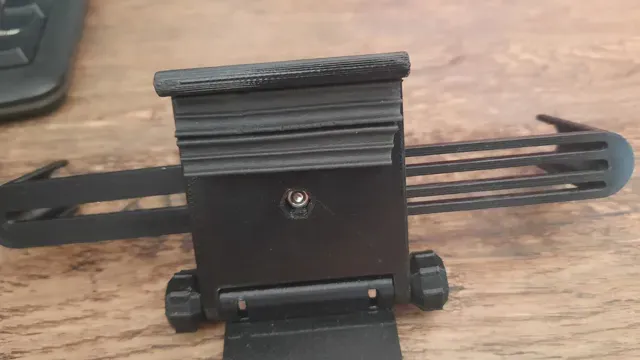

- With the upper countersink screw, the phone bracket can be adjusted from 100.5 mm to 180 mm in order to fit your mobile phone. - You can also turn the entire bracket to adjust its yaw. - Use the rear (thumb)screws to adjust the mount's pitch. Required Hardware:

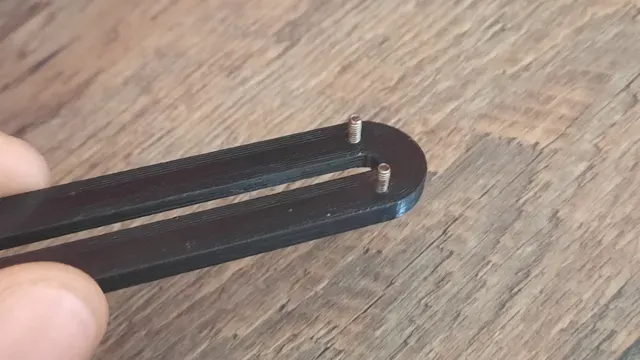

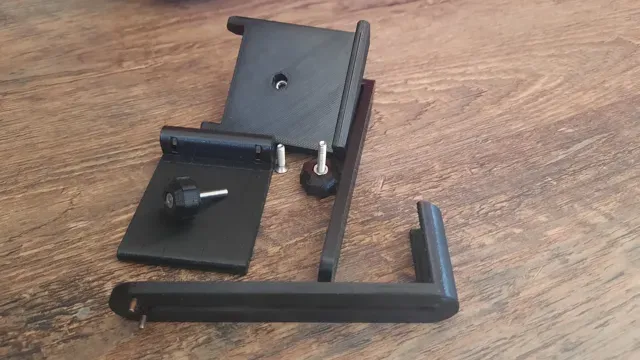

- Pitch joint: 2x 16-25 mm M3 counterbore screws + 2x M3 hex nuts (I also recommend these M3 thumbscrew adapters by Elothan ) - Yaw joint: 1x 16 mm countersink screw + 1x M3 hex nut (lock nut is best) - Phone bracket: 2x 6 mm M2 counter bore screws (Optional - They just align the bracket parts) - Some rubber or foam tape to add a little more friction to the mount's contact face Printing:

- Solid filament (PETG worked well) - 3+ perimeters - 0.4 mm nozzle - No supports (take care to keep the predefined orientation of the pitch clamp) - ≤ 0.20 mm layer height
