Dewalt battery mount for pegboard - Sy's Peglock-

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL
  • 75 Лайки
  • 524 Загрузки
  • 427 Напечатали
  • 361 В подборках
  • 28 Бусты
  • 38 Комментарии
  • 0 Просмотры

Автор:ari_m

Опубликована

Скачать на MakerWorld

Описание

UPDATE 2025-09-15: I have added a second version of the double mount, because it seems that some newer dewalt LITHIUM batteries are wider then the older versions (80mm/3.15in compared to 75.5mm/2.97in) which doesn't allow the mounting of 2 batteries side by side. Please measure and pring the correct mount (the wider “LITHIUM” marked mount for the 80mm (3.15inch) wide batteries.

Thanks to @3_Steps_R_and_D for the pictures of the Lithium batteries. Here's how to measure :

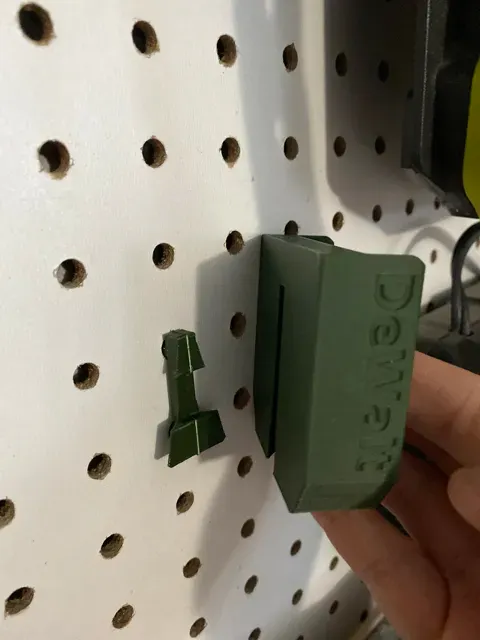

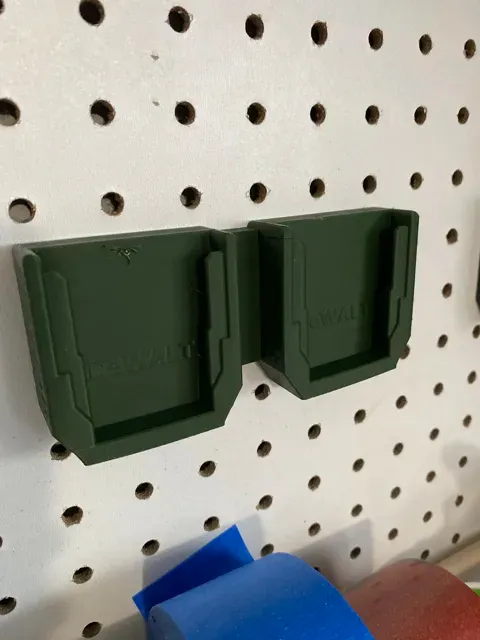

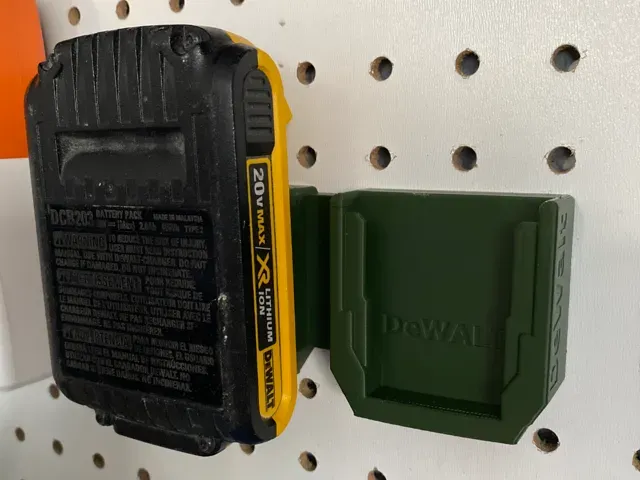

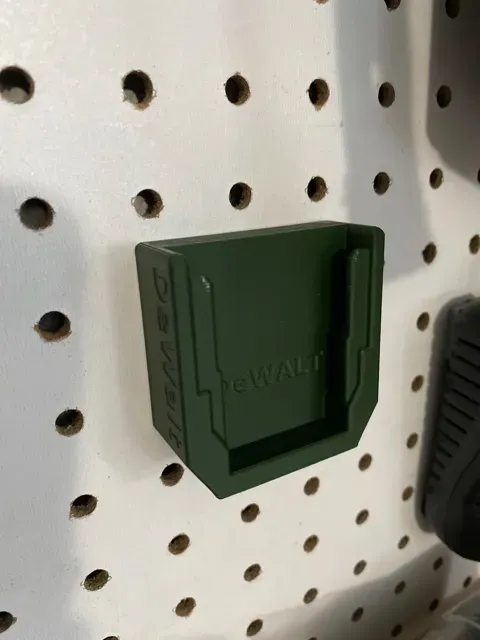

This is a better version of my Dewalt battery mount for pegboard using Sy's peglock system. the batteries don't latch, so it's an easy one handed operation. Made a single and double battery mount.

Included are peglocks that work for me, but you might need different ones, check below.

Links to Sy's Peglock system : https://www.printables.com/model/249871-sys-peglock-locking-pegboard-system

Parametric Peglocks : https://www.printables.com/model/347833-sys-peglock-peglock-board-attachment-parametric-te

Руководства и профили печати

Профили печати и шаги

Double-holder 0.2mm layer, 2 walls, 15% infill There is one version for the wider “Lithium” branded batterie which are 80mm (3.15 inches) wide and a version for the smaller batteries 75.5mm  (2.97inches) wide

Single-holder 0.2mm layer, 2 walls, 15% infill

Double LITHIUM holder 0.2mm layer, 2 walls, 15% infill This version is for the wider “Lithium” branded batterie which are 80mm (3.15 inches) wide
